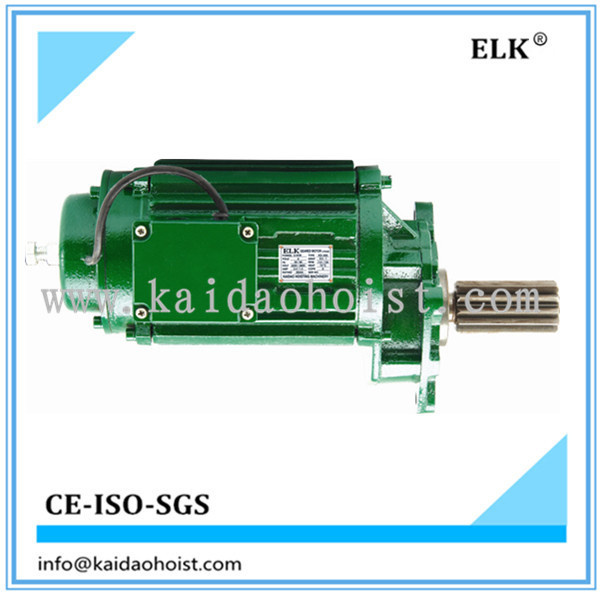

| Prod Model: |
KD-030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Duty: |
M4 |
| IP Class: |
IP44 |
| Power: |
0.25kw |
| Voltage: |
200V--600V |
| Weights: |
13kgs |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Elk |
Product Description
ELK Crane geared motor with Buffer = Double Speeds Crane Motor 0.4/0.13Kw =Lifting Motor = Hoist Motor: End Truck Motor ;End Carriage Motor Factory : Reducer Crane ;Hoist Reducer
01. ELK Crane Geared Motor with Buffer Features :
Quality Warranty = 2 Years
(1). Reduction gear
The gear box is made of hight stress cast iron (FC25), and manufacture by computer numerical control machinery (CNCLATHE & CNC machine center). The gear is of Ni-Cr-Mo alloy steel(SNCM220 & SCM415) with carburization process. The shaft is made by alignment and grinding . High accuracy ,be durable and bumping. More than 5 times safety factor. Long working life
(2). Buffer
When soft starting, and after fly wheel acting, the movement of high inertia is Produced. No impactness this keeps crane stable, smooth and noiseless to stabilize the brake.
(3). Motor
High performance of start torque, motor body heat is easy to dissipation. High-pressure resisting more than 1500V, light current, compact size, powerful output, available for high frequency working.
(4). Electromagnetic Brake
With direct-type electromagnetic brake control can be adjustable with screw high abrasion brake leather, long service life, safety and never be falling off.
02. This Type Crane Geared Motor with Buffer Advantages Notes :
(1).Small Volume with Compact Unitive Whole Part ;
(2).Sensitive Steady Electromagnetic Braking System;
(3).Super Quiet Voice & Soft Start and Soft Stop ;
(4).Lowest Impact ;
(5).High Torque/ Output Power Stronger /Easy Heat Dissipation;
(6).Highest Cost Performance & Lowest Repair Rate .
03. ELK Crane geared motor with Buffer Characters :
Motor, Crane Motor,the motor,motor for crane,crane geared motor,reduction motor, geared reducer,reduction gears,geared hub motor,geared motor india ,ac geared motor,dc geared motor, electric motor, 3phase induction motor , end truck motor, end carriage motor .
04.ELK Crane geared motor with Buffer Power :
0.25Kw Crane Geared Motor,0.4Kw Crane Geared Motor, 0.75Kw Crane Geared Motor,
1.1Kw Crane Geared Motor,1.5Kw Crane Geared Motor,2.2Kw Crane Geared Motor,3.75Kw Crane Geared Motor, Buffer Motor, Double Speeds Reducer, Dual Speeds Geared Motor .
(5) ELK Crane Motor Technical Parameters :
| 1. ELK Crane Geared Motor with Buffer -- Technical Parameters : |
|
|
|
| Model | With Buffer | Power(Kw) | Poles | Module | Reduction Ratio | Rotation Speed(50Hz) | Voltage | Work Class | Weight (Kgs) | Volume (m3) |
|
| KD-030 | NO | 0.25Kw | 4P | M3/M3.5/M4 | 10:1 | 133 r/min | 200V--600V/3Phase/ 50Hz | M4 | 14Kg | 0.011 |
| NO | 0.25Kw | 6P | 90 r/min | M4 |
| NO | 0.4Kw | 4P | 133 r/min | M4 | 26Kg | 0.022 |
| KD-050 | Yes | 0.4Kw | 4P | M3/M4/M5 | 8.5:1 | 176 r/min | M4 |
| Yes | 0.37Kw | 6P | 112 r/min | M4 | 31Kg | 0.025 |
| KD-100 | Yes | 0.75Kw | 4P | M3/M3.5/M4/M5 | 7.7:1 | 189 r/min | M4 |
| Yes | 0.6Kw | 6P | 123 r/min | M4 | 33Kg | 0.025 |
| Yes | 0.4/0.13Kw | 4/12P | 189/62 r/min | M4 |
| KD-150 | Yes | 1.1Kw | 4P | M4/M5/M3.5 | 13:1 | 112 r/min | M4 | 47Kg | 0.032 |
| Yes | 0.75Kw | 6P | 67 r/min | M4 |
| Yes | 0.6/0.2Kw | 4/12P | 112/33 r/min | M4 |
| KD-150A | Yes | 1.1Kw | 4P | M3/M3.5/M4/M5 | 7.7:1 | 189 r/min | M4 | 33Kg | 0.025 |
| Yes | 0.75Kw | 6P | 123 r/min | M4 |
| Yes | 0.6/0.2Kw | 4/12P | 189/62 r/min | M4 |
| KD-200 | Yes | 1.5Kw | 4P | M3.5/M4/M5/M6 | 16:1 | 92 r/min | M4 | 71Kg | 0.06 |
| Yes | 1.1Kw | 4P | 92 r/min | M4 |
| Yes | 1.1Kw | 6P | 61 r/min | M4 |
| Yes | 0.75/0.25Kw | 4/12P | 92/30 r/min | M4 |
| KD-300 | Yes | 2.2Kw | 4P | M4/M5/ M6 | 16:1 | 92 r/min | M4 | 91Kg | 0.07 |
| Yes | 1.5Kw | 6P | 61 r/min | M4 |
| Yes | 1.5/0.5Kw | 4/12P | 92/31 r/min | M4 |
| KD-500 | Yes | 3.75Kw | 4P | M5/M6/ M7 | 16:1 | 92 r/min | M4 | 96Kg | 0.07 |
| Yes | 3.75Kw | 6P | 61 r/min | M4 |
| Yes | 2.2Kw | 6P | 61 r/min | M4 |
| Yes | 2.2/0.75Kw | 4/12P | 92/30 r/min | M4 |
(6).: ELK Crane Motor with Buffer Advantages:
| 1. ELK Crane Geared Motor with Buffer Advantages : |
| ..Small Volume : Reducer and Buffer Block and Motor(3Parts) are combined to be one whole Part. |
| ..Safety and Reliability :Electromagnetic Brake with DC current ; |
| ..Lower Noise :Helical tooth transmission ; |
| ..Lower Impact : With Buffer Block , Soft Start and Soft Stop . |
| ..Long Service Time : With Highly Durable brake block ; |
| ..High torque , output power stronger ; Easy heat dissipation . |
(7).Our Services :
-- After - Sale Service :
01.--24 Hours Technical Support by E-mail ;
02.--Calling Service ;
03.--By Operating Manual , Photos, Detailed Videos etc. Ways ;
FAQ:1. Are you manufacturer or trade Company?Thanks for your question. We are a factory founded in 2007 with trade team for international service. 2. How about sample & MOQ policy?Thanks for your question. Welcome sample order. MOQ can be 1 set. 3. What is your lead time for your goods?Thanks for your question. Normally 15 days after confirmed order. 10 days could be available for some items in sufficient stock and standard requirements, and 30 days during new year and hot season ( Jan to March). 4.What should I provide when inquiry?Thanks for your question. The more information you provide, the accurate solution we can prepare for you! A- lifting capacity?B-lifting height?C-what is lifting material? How about working environment?D- voltage/phase/frequency or other specials. 5.How about the allocations of ELK hoists?Except basic hoist, we also provide hoist with continuously variable transmission, overload limiter, thermal protector, slipping clutch and remote control as you required.
