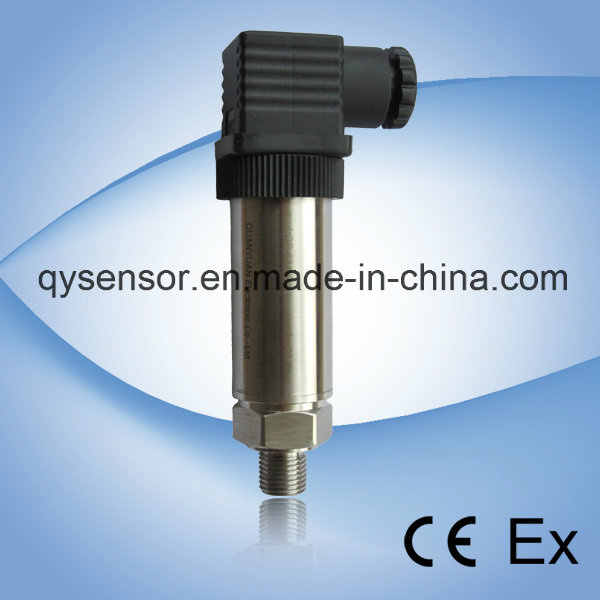

Hot Sales Low Cost Water Pressure Sensor
| Price: |
US $ 32-62/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QP-83A water pressure sensor |
| Measure Range: |
-100~0kpa~100 MPa |
| Accuracy: |
0.25%Fs |
| Output Signal: |
4~20mA;0~10V, 1~5V, 0~5V, 0~20mA |
| Power Supply: |
12~36(Standard 24VDC) |
| Housing Material: |
Stainless Steel |
| Material Of Diaphragm: |
316L Stainless Steel |
| Application: |
Measuring Gas and Liquid Pressure |
| Type: |
Diffusion Silicon Pressure Sensor |
| Measuring Medium: |
Gas and Liquid |
Product Description
Product Introduction:
Model: QP-83A pressure sensor
Range: -100~0KPa, 0~5KPa.0~500KPa.0~100 MPa
Feature:
Have the characteristics of high precision, good stability, long working life and high reliability.
Easy to installation.
Small in size, light in weight.
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for measuring the gases and liquids.

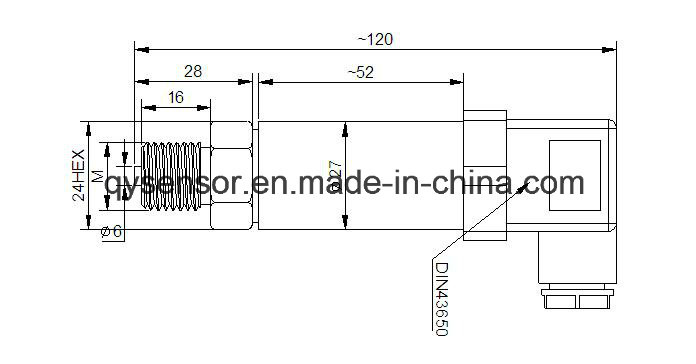

Dimension(mm):
Technical Specifications:| Measuring media | Gases or liquids which are compatible to 316L stainless steel |
| Measuring range | -100~0KPa, 0~5KPa.0~500KPa.0~100MPa |
| Pressure type | Gauge(G),Absolute(A),Sealed(S) |
| Signal output | transmitter, mA (2 wires) | 4~20mA |
| transmitter, Vdc (3 wires) | 0~10V, 1~5V,0~5V,0~20mA |
| Combined accuracy | %FS | ±0.25(Standard), ±0.5(Max) |
| Long stability | ±0.1%FS/year(Standard);±0.2%FS/year(Max) |
| Power supply | Vdc | 12~36(Standard 24Vdc) |
| Compensated temp. | ºC | -10~+60 |
| Operating temp. | ºC | -20~+80 |
| Temperature coefficient of ZERO | %FS/10ºC | ±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa) |
| Temperature coefficient of SPAN | %FS/10ºC | ±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa) |
| Insulation resistance | MΩ | >500 @ 100Vdc |
| Electrical connection | DIN43650,Aviation connector,Directly lead(Selectable) |
| Material | Housing Material | Stainless steel(1Cr18Ni9Ti) |
| Material of diaphragm | 316L Stainless steel |
| Pressure connection | G1/4, M20x1.5,M14x1.5,M12x1, M10x1(Customized) |
| Environment protection | IP | 65 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 200 |
| | | | |
Electronic Connection:
Packaging & Shipping:
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services:
1. OEM/ODM Services:
Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.

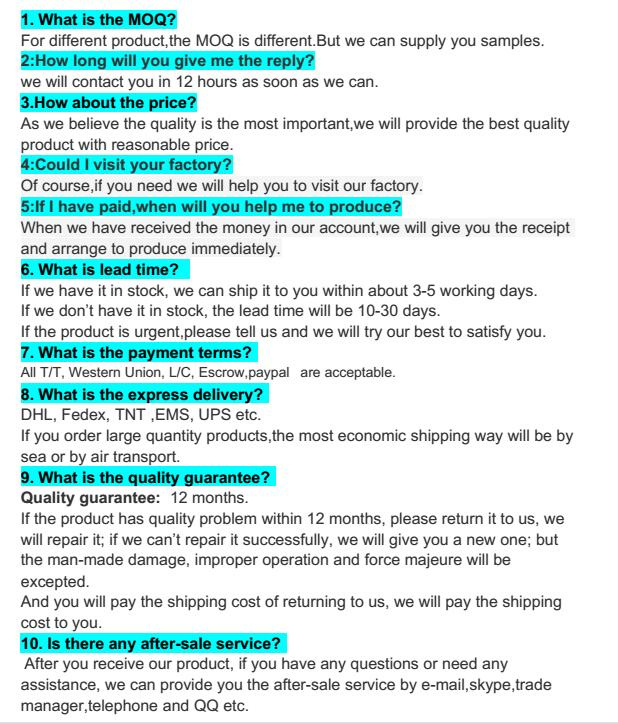

FAQ:
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
