Yueqing Winston Electric Co., Ltd. >> Hot Sales Mechanical Hygrostat Mfr 012 Humidity Controller/Mechanical Hygrostat

Hot Sales Mechanical Hygrostat Mfr 012 Humidity Controller/Mechanical Hygrostat

Hot Sales Mechanical Hygrostat Mfr 012 Humidity Controller/Mechanical Hygrostat
Price: US $ 19-20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: MFR 012
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe
Permissible Air Velocity: 15m/Sec
Contact Resistance: < 10mohm
Min. Switching Capacity: 20V AC/DC 100 Ma
Max. Switching Capacity: 250 Vac, 5 (1) a DC 20W
Dimensions: 67 X 50 X 38mm
Weight Approx: 60g
Usage: Drying Equipment
Certification: CE
Control Type: Mechanical
Type: Temperature Controller
Material: Plastic
Control Method: Temperature Controller
Brand: Winston

Product Description

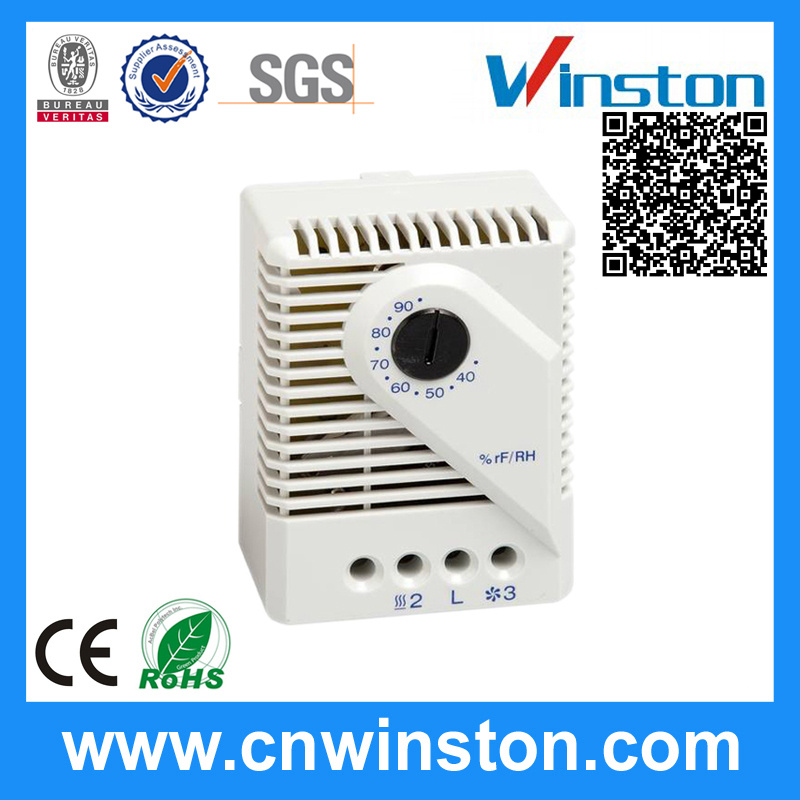

MFR 012 Mechanical Hygrostat/Humidity Controller

1. Features:


Adjustable relative humidity
Change-over contact

High switching capacity
Easy using
Clip fixing

The electromechanical hygrostat MRF 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.


2. Technical Data


Switch difference*4% RH (± 3% tolerance)
Permissible air velocity15m/sec
Contact typechange-over contact
Service life> 50, 000 cycles
Min. switching capacity20V AC/DC 100 mA
Max. switching capacity25VAC, 5A

DC 20W
Connection3-pole terminal for 2.5mm² , clamping torque 0.5Nm max.: rigid wire 2.5mm² , stranded wire (with wire end ferrule) 1.5mm²
Mountingclip for 35mm DIN rail, EN60715
Casingplastic according to UL94 V-0, light grey
Dimensions67 x 50 x 38mm
Weightapprox. 60g
Fitting positionvariable
Operarting/Storage temperature0 to +60º C (+32 to +140º F) / -40 to +60º C(-40 to +140º F)
Operating / Storage humiditymax. 90 % RH (non-condensing)
Protection typeIP20
ApprovalsUL File No. E164102
*at 50% RH



Art. No.Setting range
01220.0-0035 to 95% RH

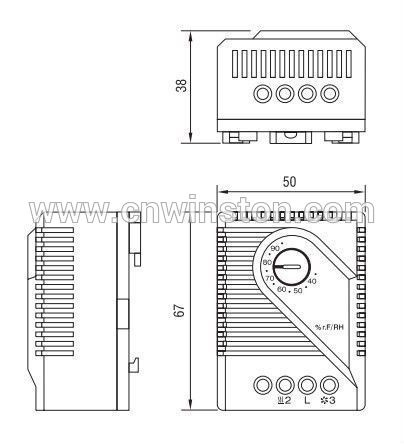

 Size

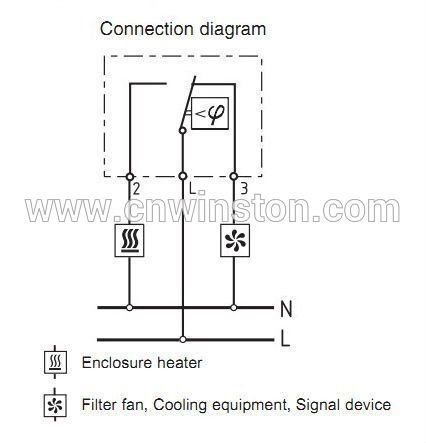

Example of connection:
