| Prod Model: |
S800E |
| Name: |
S800e Frequency Inverter |
| Input Power 220V: |
0.4kw-2.2kw |
| Input Power 380V: |
0.75kw-2.2kw |
| Feature: |
Compact |
| Special Function: |
Small |
| Service: |
DIN Rail Mounted Frequency Inverter |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Main Circuit Type: |
Current |
| Output Type: |
1/3 Phase |
Product Description
Items |
S800E |
Output |
Voltage Range |
220V: 0~220V |
Frequency Range |
0.10~400.00Hz |
Control method |
V/F control, Space vector control. |
Indication |
Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
Control SpeciAlations |
Output Frequency
Range |
0.10Hz~400.00Hz |
Frequency Setting
Resolution |
Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load
Requirements. |
Torque
Control |
Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal |
Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal |
1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
Acceleration/ deceleration Time Setting |
0~999.9s acceleration/deceleration time can be set individually. |
Other functions
|
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
Multi-speed |
Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation |
Automatic voltage regulation function can be
Selected |
Counter |
Built-in 2 group of counters |
Protection/Warning
Function |
Overload |
150%, 60 second(Constant torque) |
Over Voltage |
Over voltage protection can be set. |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat,output short circuit,over current, and
Parameter lock and so on. |
Environment |
Ambient Temperature |
-10ºC to 40ºC(non-freezing) |
Ambient Humidity |
Max. 95% (non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max.0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective
Structure |
IP 20 |
Installation |
Mode |
Wall-mounted or standard 35MM rail mounting |

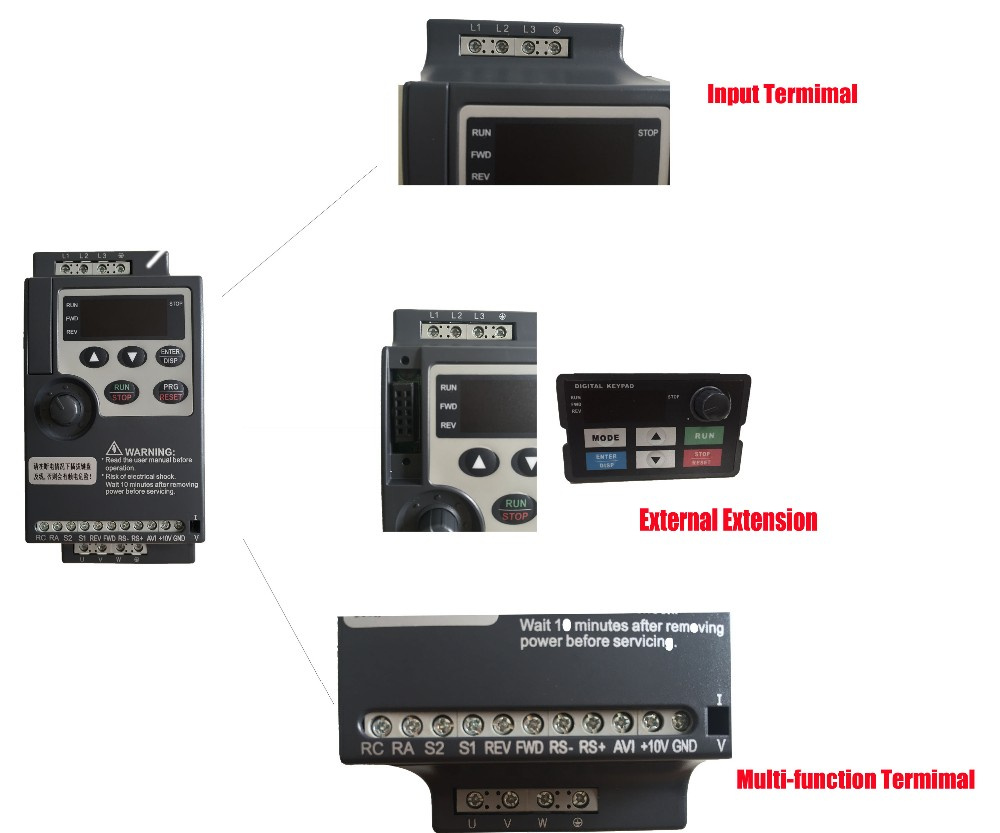

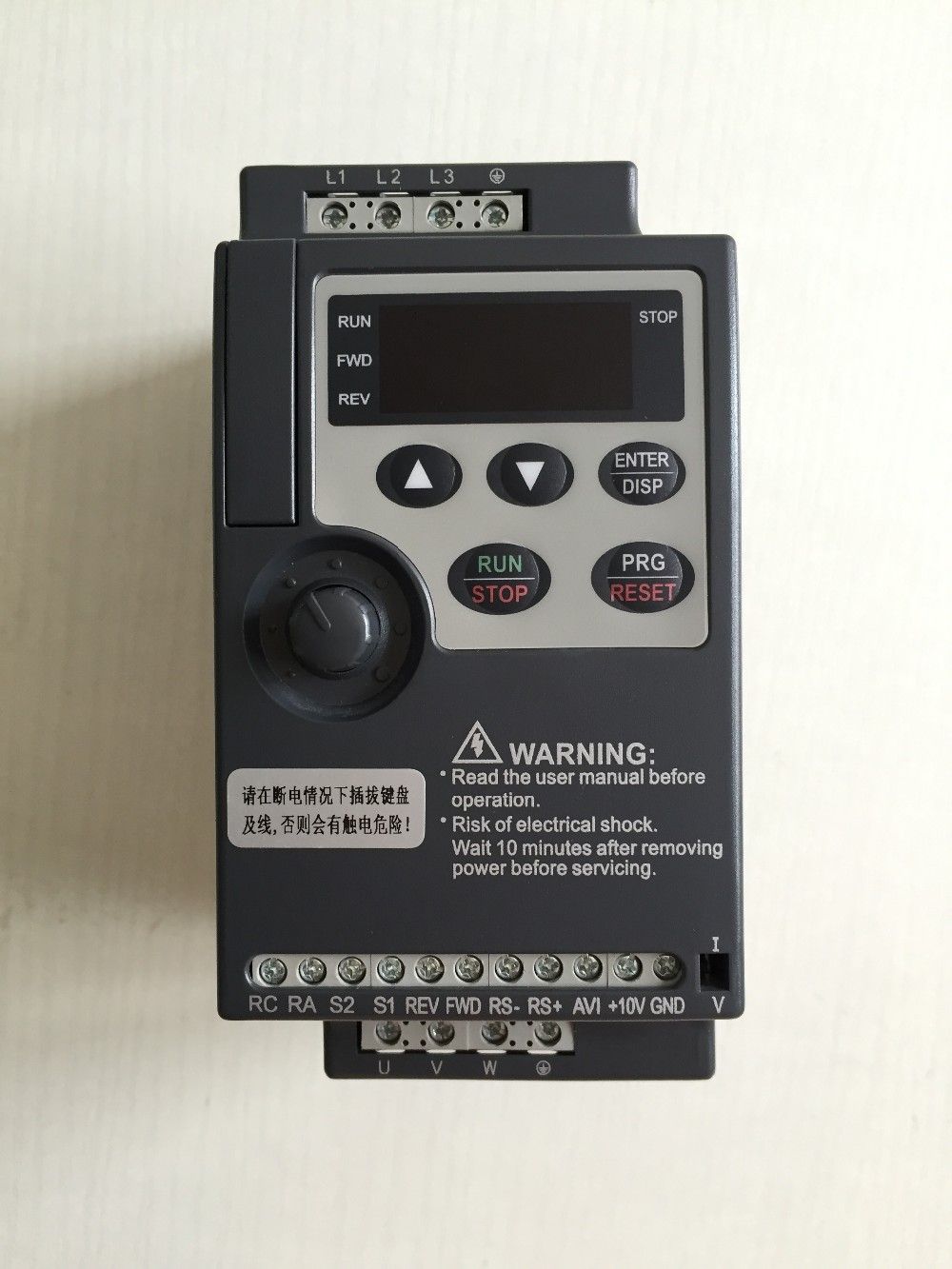

Product Detail
----------------------------------------------------------------------------------------------------

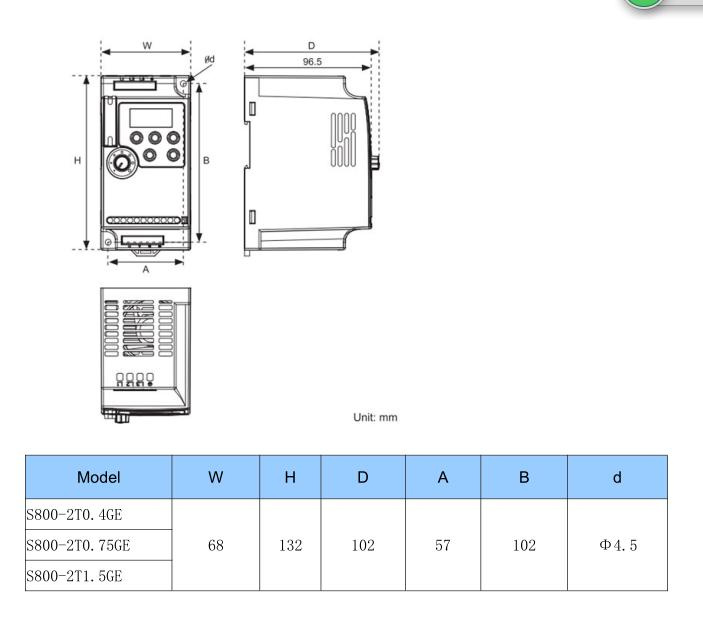

Dimension
----------------------------------------------------------------------------------------------------

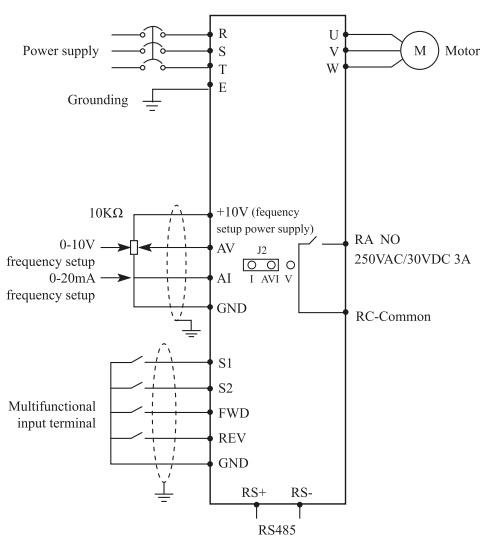

Basic Diagram
------------------------------------------------------------------------------------------------------

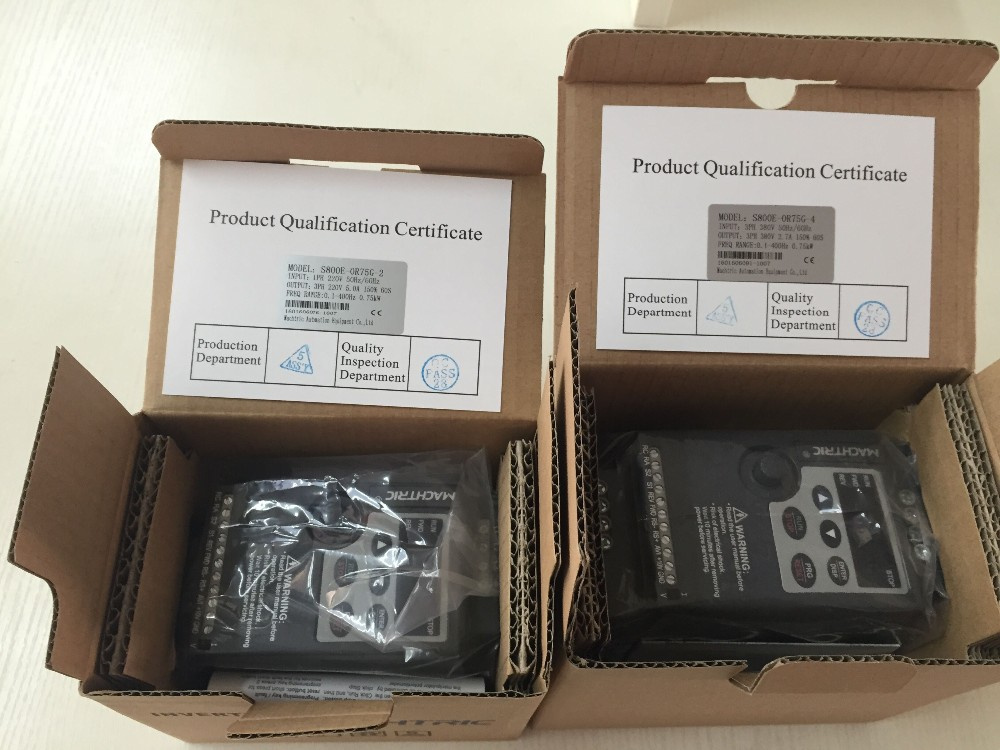

Packing & Delivery
---------------------------------------------------------------------------------------------------
Packaging |
| 123 (L) * 456 (W) * 789 (D) |
| 1.5kg |
| The normal package is carton (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
