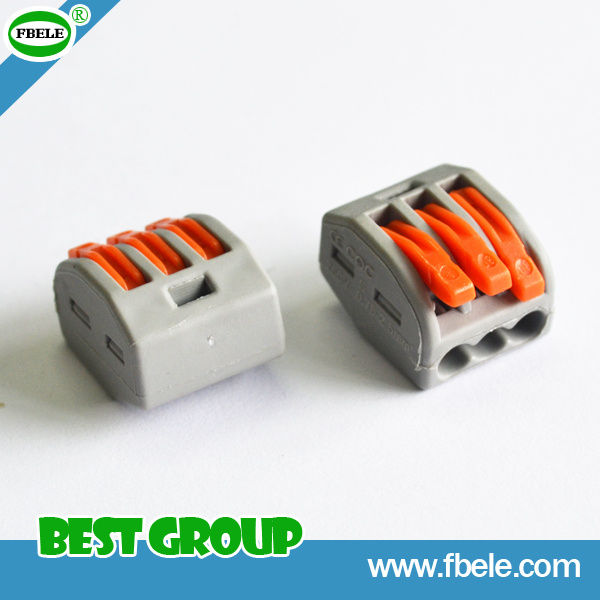

Hot Sell 30A Terminal Blocks Fb245

Prod Model:	FB245
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Fb245
Application:	Integrated IC
Environmental Protection:	General
Connection Mode:	In-Line Connector
Shape:	Round
Contact Termination Form:	Welding Connection

Product Description

Mechanical
temp.range:-40c~+105c
max soldering:+250c for 5 sec
strip length:5-6mm



cage clamp terminal block
wire guard:stainless steel
pin header:brass,tin plated
housing:PA66,UL94V-0

Electrical
rated voltage:300V
rated current:15A
contact resistance:20mΩ
insulation resistance:5000MΩ/1000V
withstanding voltage:AC2000V/1Min
wire range:28-12AWG 2.5mm2

Mechanical
temp.range:-40c~+105c
max soldering:+250c for 5 sec
strip length:5-6mm
20 years experience on electronic components included:
1. Ultrasonic sensor   2. BUZZER  3.SPEAKER 4. Electret Condenser Microphone 5. USB Connectors
6. Fuse & Fuse Holders 7. Switches 8. Battery Holder and Battery Clips 9. Siren 10. Terminal Blocks
Major market : North America, South Asia, Europe, Eastern Asia
who we are,and what we can do for you:
 1: we can supply over 2000 kinds of products, new products updated every month!!
 2: Good quality :85% of products have UL CE ROHS certificate. ISO9001:2008.
 3: Competitive price:  we can help you to reduce 20% cost in the following 3 month.
 4: Delivery time 3-15 days, On-Time delivery.
 5: we have high ability to make new mould for non-standard products
 6: OEM/ODM acceptable!
 7: Free samples will be sent for your evaluation.
8: 20 years' industry experience with over $50 million in annual exports.
 9: Top Supplier of electronic components in the world.
