Hot Sell Hydraulic 12V DC Motor

Name: Hot Sell Hydraulic 12V DC Motor
Brand: all-electronics-online.com
SKU: 828696245
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	US $ 50-55/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZD1213
Volt:	12V
Current:	260A
Speed:	2500r/Min
Protect Feature:	IP44
Rotation:	Cw
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zd2413
Brand:	Sanghao

Product Description

Hot Sell Hydraulic 12V DC Motor

1. Technical Parameter:Compared of 12V and 24V

Type	Volt	Current	Power	Speed	Protect Feautre	Rotation	Weight
ZD1213	12V	260A	1.6kw	2500r/min	IP44	CW	7.2kg
ZD2413	24V	155A	2.2kw	2600r/min	IP44	CW	7.2kg

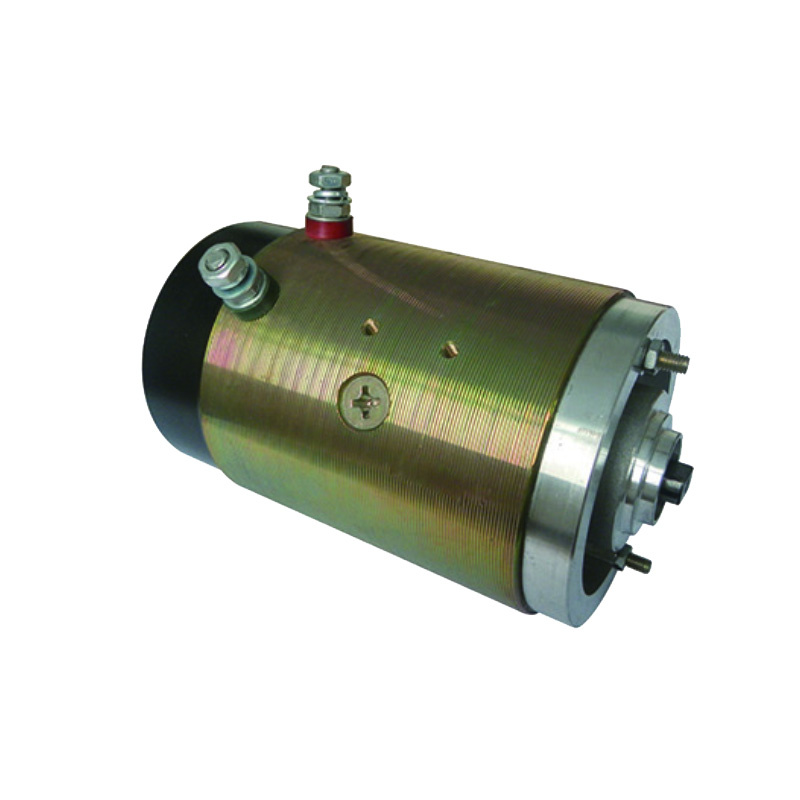

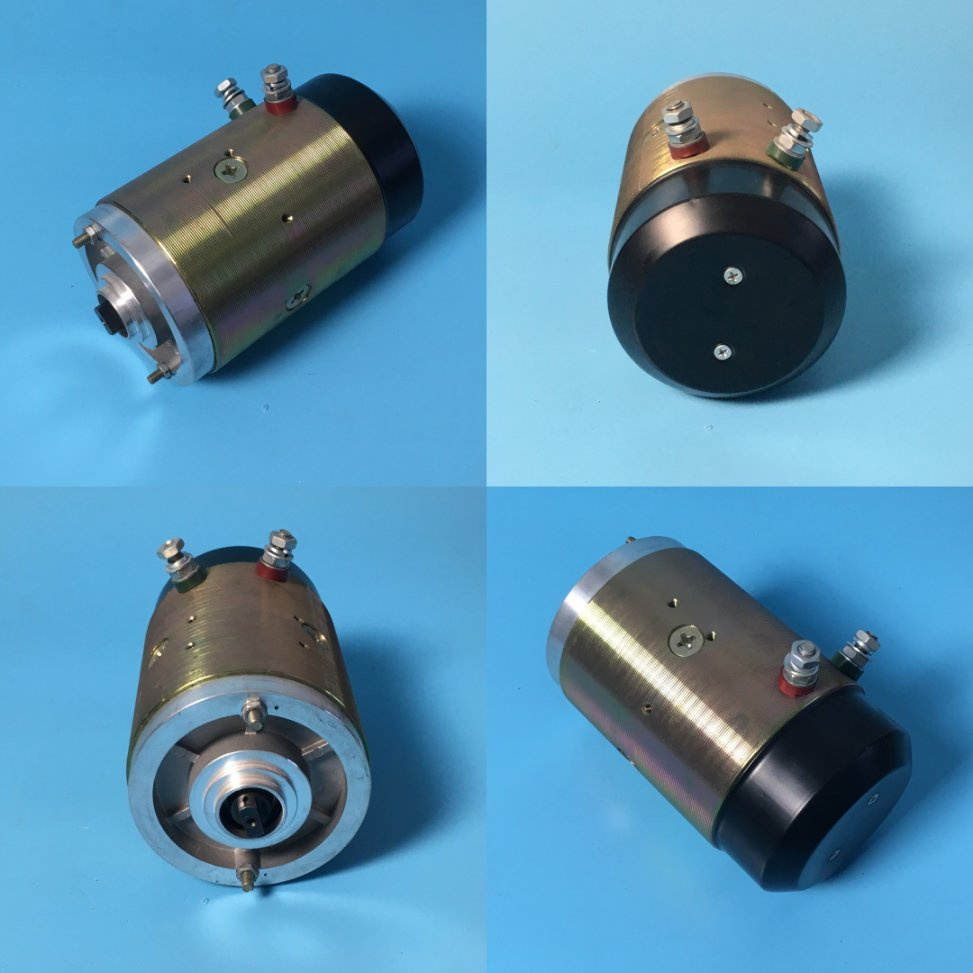

2. Product Picture

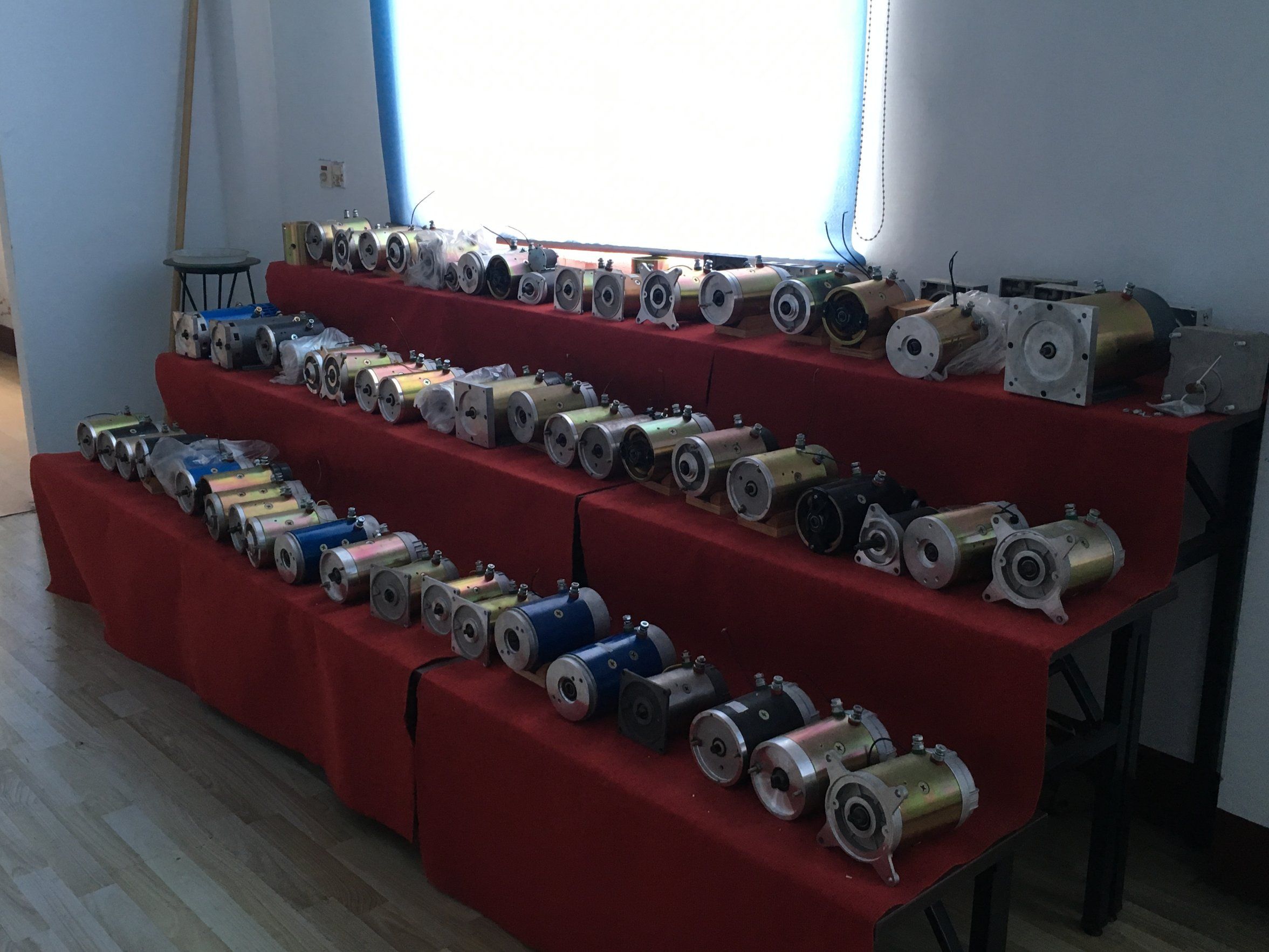

3. Motor Sample Display
More than 60 DC motors that we can produced and now our engineer and worker are still making the research on the new motors such as 2424 and 2425 and weed out some out of date motor.

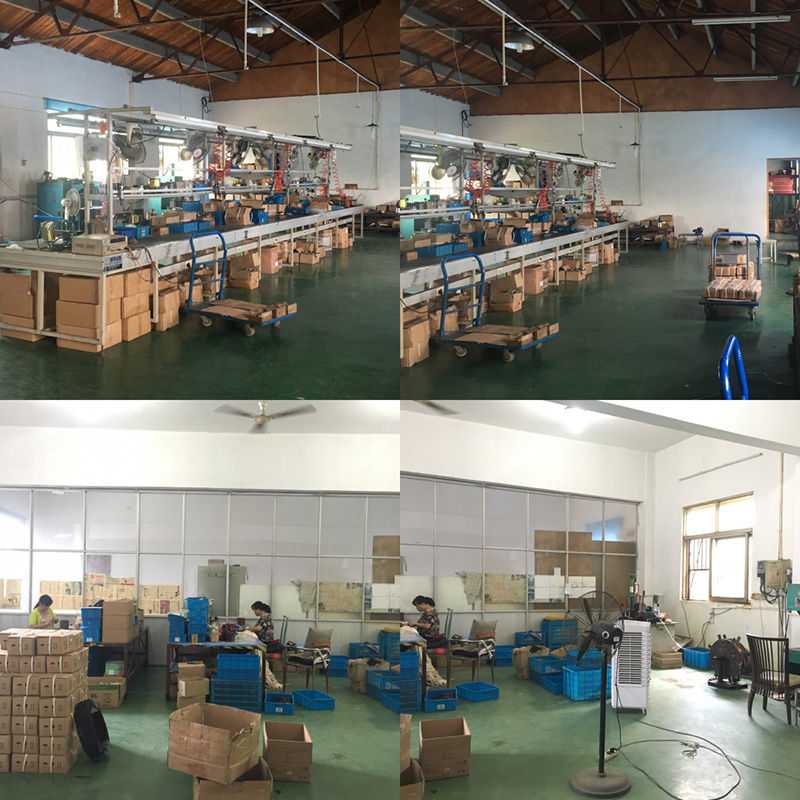

4. Factory Shop
Our Assembly factory shop has several assembly lines to do the motor. When motor is ready, it will go on testing one by one then will go into the package. All the materials will be put into the warehouse which near the shop then it can be convenient for the worker.

5. Package
We took several measures to protect the motor. Firstly we will put a plastic bag outside of the motor to protect the whole motor then put into the carton. When put into the carton we will use the small carton pieces to protect the top and bottom part of the motor then it will be stable into the box.

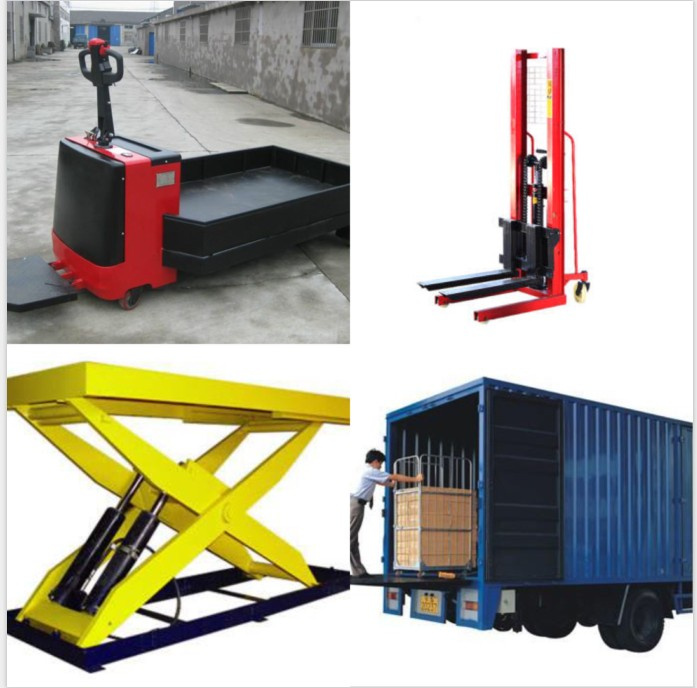

6. Application

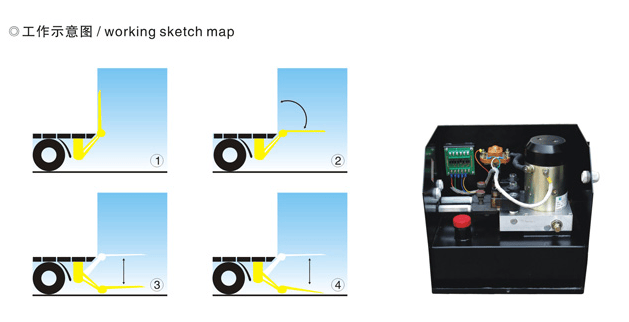

Dump truck car, fixed boarding bridge, electric stacker, lifting platform and lifter all will need our dc motor.

7. FAQ
A. How to place the order?
You can give us the inquiry first then we give the quotation and negotiate the details, if ok pls give the deposit then we prepare the sample then we will go on mass production when you confirm. When mass is ready, pls pay the rest payment then we will ship the products to you.

B. Do you provide the customized services?
Yes we are a manufacturer who has the experience more than 10 years and have the engineer can do the customized according your sample.

C. Do you have products in stock?
Yes some part of them we will do in stock and can ship to you directly once you confirm the order.

Welcome to send us an inquiry or email directly if you are interested to our products!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
