| Prod Model: |
BC-1135C |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Certification: |
Ce, 3c, CAS, RoHS |
| Panel: |
Iron Panel |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
3+1 |
| Sound Channel: |
1.0 |
Product Description

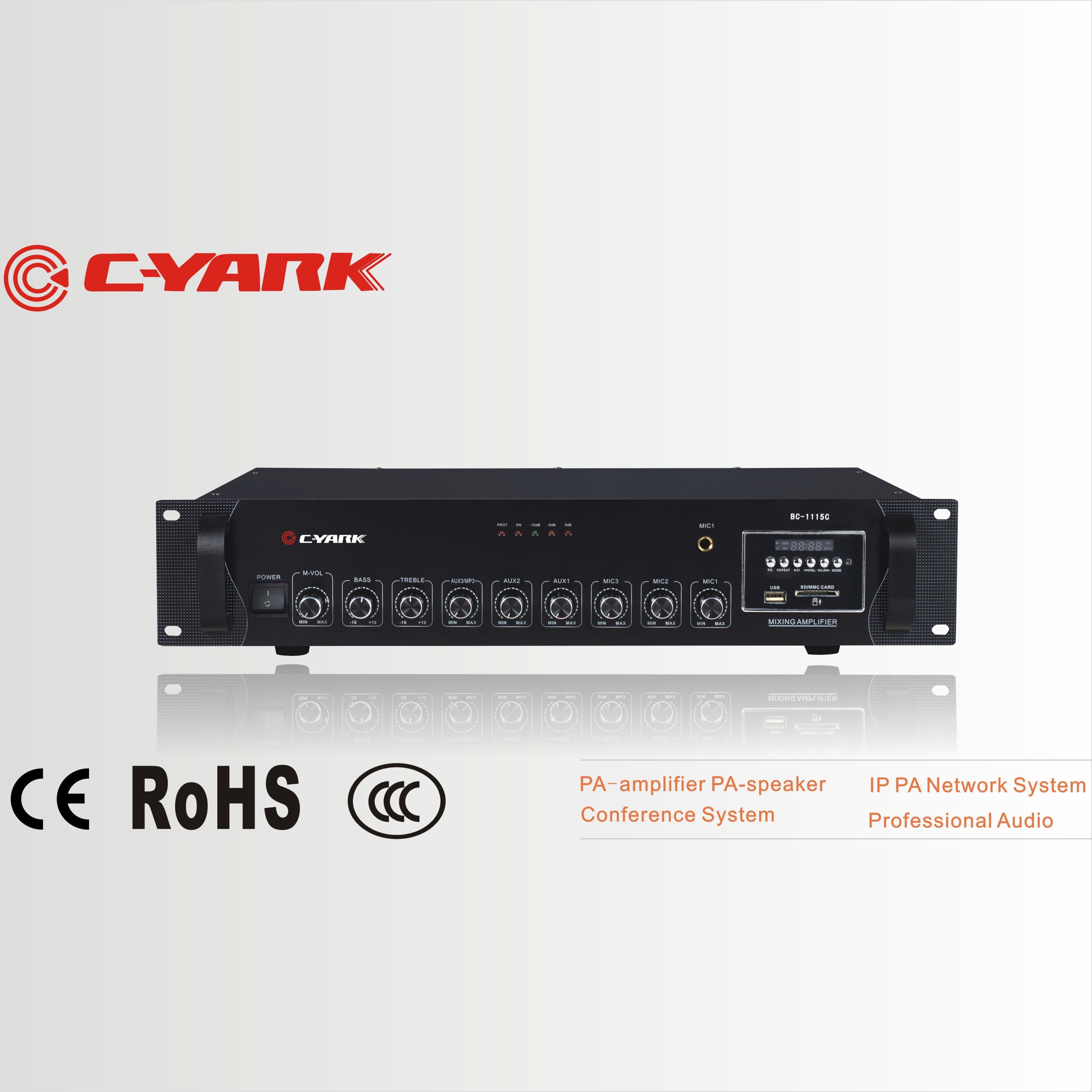

Good Pricing Hot Sell PA Amplifier With USB ,SD and MP3
Specifications| Model | BC-1106C | BC-1110C | BC-1115C | BC-1120C |
| Rater Power | 60W | 100W | 150W | 200W |
| Output Model | 70V-100V/4-16 ohms | 70V-100V/4-16 ohms | 70V-100V/4-16 ohms | 70V-100V/4-16 ohms |
| Input Sensitivity | 500mv | 500mv | 500mv | 500mv |
| S/n Radio | >85db | >85db | >85db | >85db |
| Frequency Response | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db |
| Power | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz |
| Dimension(mm) | 485*370*90mm | 485*370*90mm | 485*370*90mm | 485*370*90mm |
| Model | BC-1125C | BC-1135C | BC-1145C |
| Rater Power | 250W | 350W | 450W |
| Output Model | 70V-100V/4-16 ohms | 70V-100V/4-16 ohms | 70V-100V/4-16 ohms |
| Input Sensitivity | 500mv | 500mv | 500mv |
| S/n Radio | >85db | >85db | >85db |
| Frequency Response | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db |
| Power | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz |
| Dimension(mm) | 485*370*90mm | 485*390*90mm | 485*390*90mm |

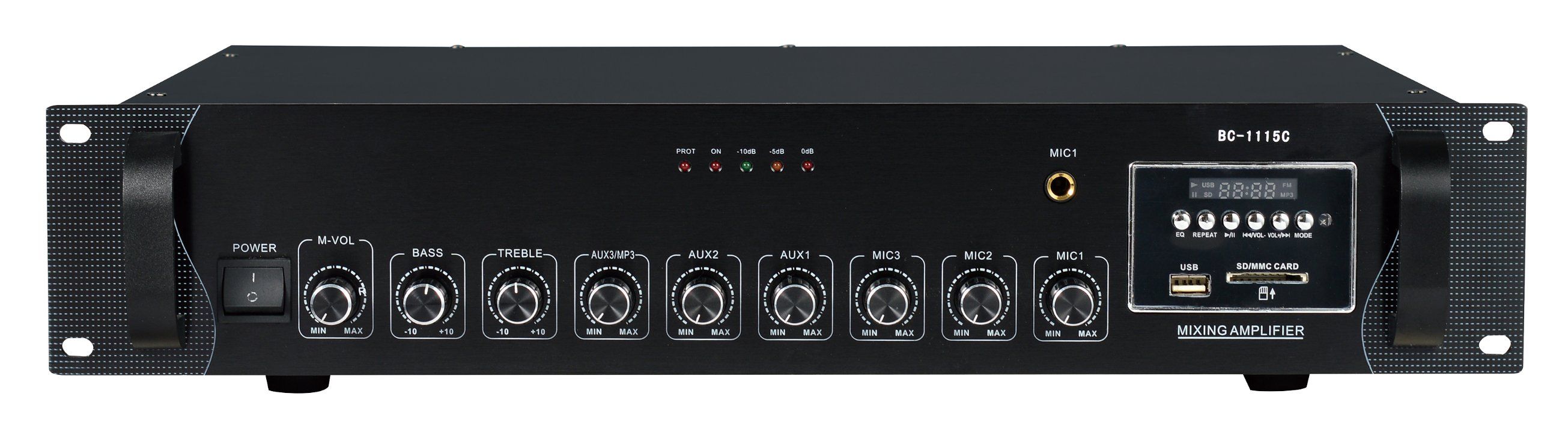

Descriptions| 2U rack mount design with high quality aluminium alloy panel. |
| The wave design on left and right side make the appearance more fashion. |
| Mute function: Input has priority level ( Front MIC 1 overrides all other inputs). |
| Applying newest separation circuit design for convenient repairing and maintenance. |
| Output module has a cover to prevent it from damaging by other machines. |
| Excellent device of radiator cooling fan that ensures working effectively. |
| The perforated back panel and a high-speed fan keep the amp cool. |
| With USB port and SD slot, it's convenient for storage. |
| It has 3 AUX inputs, 3 MIC inputs, internal MP3 player and FM. |
| Master volume control are provide for overall tone control. |
| Treble and bass volume control. |
Features| Power: 60W/100W/150W/200W/250W/300W/350W/450W |
| Input: 3 AUX inputs, 3 MIC inputs (MIC 1 has Mute function for emergency input),1 MP3 input |
| Output: 1 AUX output |
| 5 point LED indicator |
| Decoder module supports USB / SD Card |
| File format: MP3/WMA/WAV |
| Multiple play mode:repeat; play/pause; previous/next; vol+/vol-;EQU(equalizer) |
| FM function |
| Master Volume control |
| Treble and bass control |
| Remote controller |
| Cooling fan and heat sink for over-heat protection |
| Power transistor: Samsung brand |
| Short-circuit/Over-load/Over heat protection |
| A single machine is a complete P.A System |
4.Our Company
5. We attend Canton Fair and Professional audio show every year.
6.Our Office and showroom
7.
Our Certifications
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer(with our own factory),we have more than 15 years experience.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Baiyun District, Guangzhou City, Guangdong Province, China.
Nearly Airport,just need 30min to there by car.
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
4. How many days do you need to prepare the goods?
We need about 30 working days for large order.
Our Mission:1.Your time is as valuable to us as it is to you.
2.We will treat you and your business with the utmost respect.
3.We will always keep you informed and answer any questions you may have.
4.We will immediately resolve any issues.
5.We will help you find the best product for your needs, even if we don't carry it.
6.Feel free to stop by call or email us anytime. we'd be delighted to hear from you.
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Our products cover power amplifier series, ceiling speaker, indoor and outdoor speaker series, MP3 public broadcasting system, conference system and IP system. All of Our products have received CCC, CE and ISO9001 approvals
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market; So, OEM or ODM order is welcomed.
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects, such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
