Hot Seller Quadruplex Service Drop Wire for Overhead Use
| Price: |
US $ 0.1-1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
drop wire |
| Delivery Length: |
Accord with The Request |
| Standards: |
ASTM B230,B231,B232, B399,B498,Icea S-76-474 |
| Capacity: |
5000km/Week |
| Min.Order Qty: |
1km |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
Henan Jiapu |
Product Description

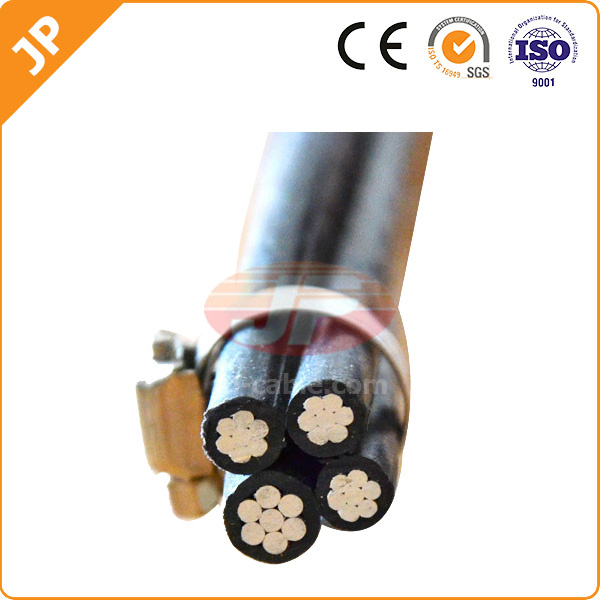

Hot Seller Quadruplex Service Drop Wire For Overhead Use
Application:
The quadruplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles.The cables should be limited to the voltages of 600 volts or less (phase to phase) at conductor temperatures not to exceed 75°C for polyethylene insulation conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.
Construction:
The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.The conductors are manufactured with ridges for phase identification(one conductor with one ridge,one conductor with two ridges ,one conductor is plain).
Specification:
ASTM B230, B231, B232,B399,B498, ICEA S-76-474 Standard
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | Code Name | Phase Conductor | Bare Neutral | Approx. Weight |
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE |
| AWG | - | mil | AWG | - | lbs/1000ft | AWG | - | mil | AWG | - | lbs/1000ft |
| 6201 Alloy Neutral Messenger | AAC Neutral Messenger |
| Bay | 6 | Solid | 45 | 6 | 7 | 145 | 140.0 | Clydesdale | 4 | Solid | 45 | 4 | 7 | 208 | 201.8 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 155 | 144.3 | Pinto | 4 | 7/w | 45 | 4 | 7 | 223 | 207.9 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 214 | 208.3 | Mustang | 2 | 7/w | 45 | 2 | 7 | 333 | 312.6 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 229 | 214.4 | Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 529 | 504.5 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 344 | 323.1 | Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 649 | 620.5 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 546 | 521.1 | Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 799 | 765.6 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 670 | 641.5 | Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 986 | 946.7 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 825 | 791.8 | Lippizaner | 336.4 | 19/w | 60 | 336.4 | 19 | 1,546 | 1,519.2 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 1019 | 979.7 | | | | | | | | |
| ACSR Neutral Messenger |
| Morochuca | 6 | Solid | 45 | 6 | 6/1 | 152 | 147.4 | Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 707 | 678.7 |
| Chola | 6 | 7/w | 45 | 6 | 6/1 | 162 | 151.7 | Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 872 | 838.9 |
| Morgan | 4 | Solid | 45 | 4 | 6/1 | 226 | 220 | Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 1079 | 1039.2 |
| Hackney | 4 | 7/w | 45 | 4 | 6/1 | 241 | 226.1 | Bronco | 336.4 | 19/w | 60 | 336.4 | 18/1 | 1613 | 1568.2 |
| Palomino | 2 | 7/w | 45 | 2 | 6/1 | 362 | 342.6 | Gelding | 336.4 | 19/w | 60 | 4/0 | 6/1 | 1548 | 1494.3 |
| Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 575 | 550.6 | | | | | | | | |
Note:
(1)Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
(2)Conductor temperature of 90°C for XLP, 75°C for poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
