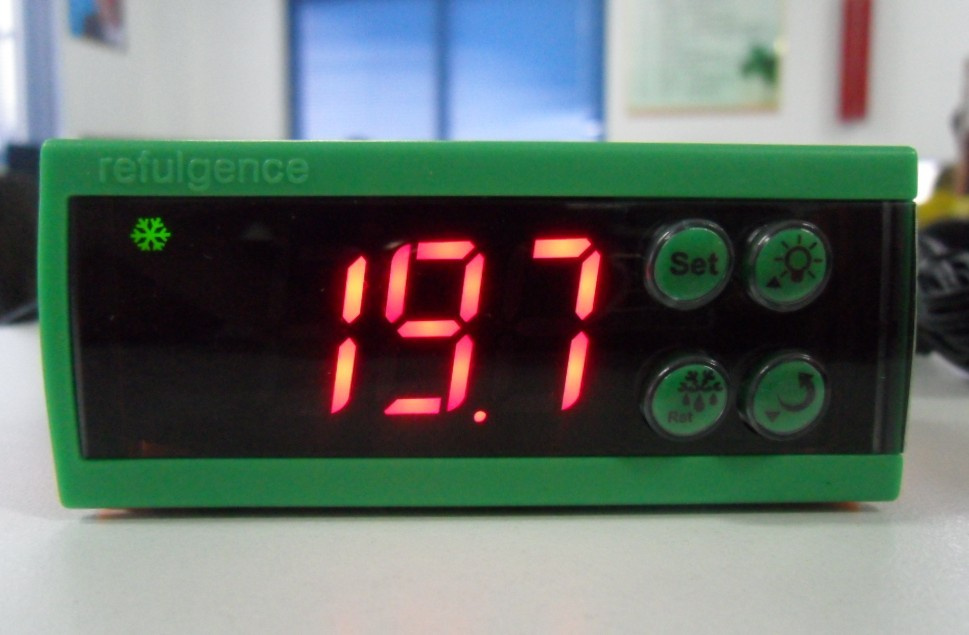

Hot Selling Freezer Digital Temperature Controller

Prod Model:	ECS-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For:	Freezer
Theory:	Temperature Controller
Certificate:	Ce
Delivery Time:	1 Month
Usage:	Air Conditioner, Refrigerator
Control Type:	Digital
Type:	Temperature Controller
Material:	ABS

Product Description

Hot Selling Freezer Digital Temperature Controller

Dedicated temperature controller for beverage cabinet, with a simple function especially for the demand of low cost control


Main features:
Big panel with color digital tube, display the work status symbols, front panel waterproof level IP65
Multi fan and defrost control modes, very energy saving
Refrigeration relay output 30A, could directly drive single phase compressor 1.5HP.
One-key recovery, very convenient for the production and after sale service of equipment manufacturers.

1. Technical parameters
1.1 Measuring range: -40° C~70° C
1.2 Resolution: 0.1° C
1.3 Accuracy: -40° C~50° C, ± 1° C, 50° C~70° C, ± 2° C
1.4 Controlling range: -40° C~50° C;
1.5 Power supply: 230± 10%(VAC)
1.6 Power consumption: <1.5W
1.7 Front panel waterproof level: IP65
1.8 Work ambient temperature: 0° C~55° C;
1.9 Storage temperature: -25° C~75° C;
1.10 Relative humidity: 20%~85%(non condensing)

2. Specification
2.1 Mounting size: (71mm)× (29mm)
2.2 Product size: (78.5mm)× (34.5mm)× (82mm)


code	Function	Setting range	unit	default
HC	controller working mode optional  c:refrigerating  H:heating	C-H	none	C
d	Temperature control return deference	1-15	C	5
LS	Temperature setting min.value	-40-SP	C	-40
HS	Temperature setting max.value	SP-99	C	70
CA	Temperature calibration value	-7-+7	C	0
Pt	Control output protection time	0-7	minute	1
SP	Temperature setting value	LS-HS	C	-40

I you need the goods, pls feel free to contact me. We also can supply you many kinds of other models.
Pls send us your detail demands.
