Hot Selling FTTH, FTTX LC Upc Fast Connector

Name: Hot Selling FTTH, FTTX LC Upc Fast Connector
Brand: all-electronics-online.com
SKU: 803628555
Availability: InStock
Rating: 4.3 (35 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC fast connector
Item Name:	LC/Upc Fast Connector/Quick Connector
Brand Name:	Df Fast Connector/Quick Connector
Keywords:	Fast Connector/Quick Connector
Product Type:	Fiber Optic Connector--Fast Connector
Insert Loss:	Max 0.3dB
Working Temperatures:	-40-75
Weight:	3G/PCS
Durablity:	More Than 500 Times
Leading Time:	3-5 Working Days
Customized:	Available
Transmission Medium:	Single-Mode
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

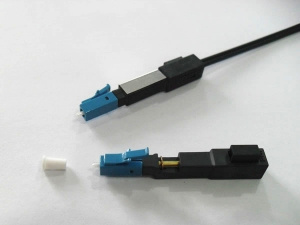

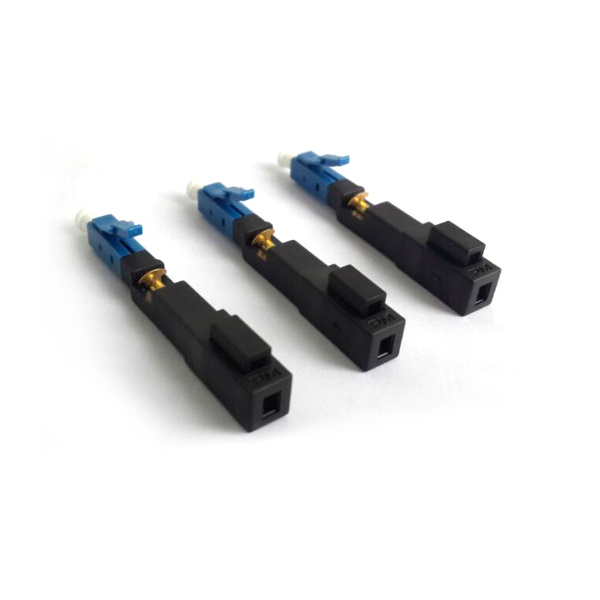

Hot Selling Ftth,Fttx LC Upc Fast Connector

LC UPC fast connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micro and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.

Features
•Low insertion loss value
•Choice of housing and sleeve materials
•Stable capability and high reliability
•Excellent mechanical capability
•Variety of colors

Application
•CATV
•Telecom network
•Optical test equipment
•Local area networks
•Wide area networks
•Data processing Networks

Features

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+85°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB

Any doubt about LC fast connector,please leave me an inquiry or contact me directly.

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
