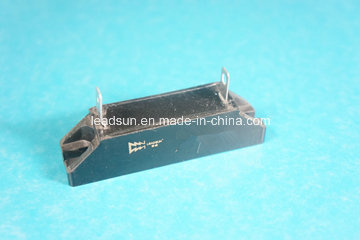

Hot Selling Global Market Hc12 High Voltage Rectifier Silicon Assembly Diode

Name: Hot Selling Global Market Hc12 High Voltage Rectifier Silicon Assembly Diode
Brand: all-electronics-online.com
SKU: 707928892
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 3.1-7.7/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	More Sizes to Choose
Use:	Electrostatic Cleaning
Max Forward Voltage:	10.5V
Max Forward Surge Current:	50A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Model:	Hc12
Brand:	Leadsun

Product Description

Feature:
Avalanche characteristic
More sizes to choose
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC
Application:
High voltage rectifier used in electrostatic cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly
HC-3HC Rectifier Module

TYPE	Peak reverse repetive voltage	Forward average rectifier current	Max forward voltage	Max forward surge current	Normal temperature leakage current	Time of reverse recovert
TYPE	VRRM(KV)	Ir(A)	VFM(V)	IFSM(A)	IRRM(μA)	Trr(nS)
HC5	5	1.0	4.5	50	0.5	--
HC8	8	1.0	7.2	50	0.5	--
HC10	10	1.0	9.0	50	0.5	--
HC12	12	0.8	10.5	50	0.5	--
HC15	15	0.7	14.0	50	0.5	--
HC20	20	0.6	21.0	50	0.5	--
3HC5	5	2.5	4.8	150	0.5	--
3HC10	10	2.0	9.0	150	0.5	--
3HC12	12	1.75	10.5	150	0.5	--
3HC15	15	1.5	13.2	150	0.5	--

2
HCF Fast Recovery Rectifier Assembly

TYPE	Peak reverse repetive voltage	Forward average rectifier current	Max forward voltage	Max forward surge current	Normal temperature leakage current	Time of reverse recovert
TYPE	VRRM(KV)	Ir(A)	VFM(V)	IFSM(A)	IRRM(μA)	Trr(nS)
HCF5	5	1.0	8.0	50	1.0	150
HCF8	8	1.0	12	50	1.0	150
HCF10	10	0.8	15	50	1.0	150
HCF12	12	0.7	18	50	1.0	150

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
