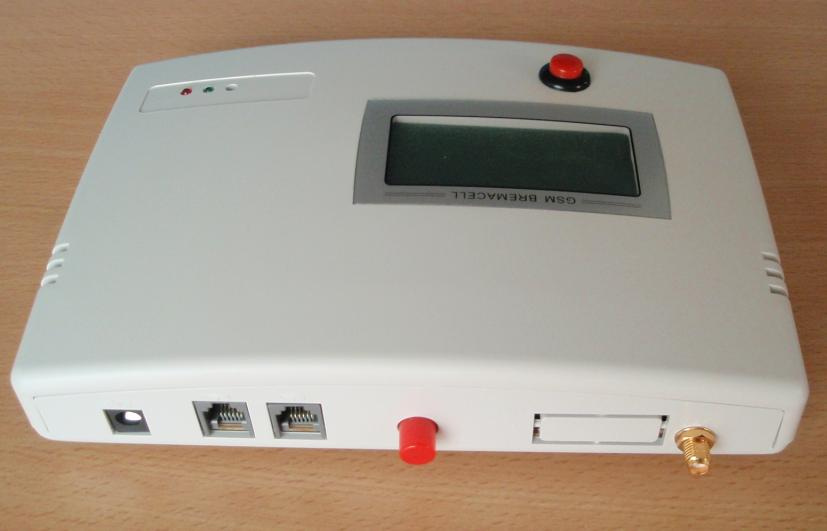

Hot-Selling GSM Fwt With LCD Display

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Connection Mode:	Rj-11 Phone Sockets
Dimensions (L X W X H):	185 X 135 X 22mm
Type1:	Wireless
Usage:	Telephone
Support Network:	Switch
Type:	Wireless

Product Description

Model no.: FWT-8818 V11
Product name: GSM Fixed Wireless Terminal

Frequencies: GSM 900/1800 MHz


Main function &Features

1) GSM fwt with LCD display and back up (Li-ion) battery.

2) Steady module and reliable design ensures good performance

3) Provides optimized circuit directly connecting the exchange device for

Extensions

4) Compatible to most telephones, PBX devices;

5) Connect to Alarm systems to realize wireless alarm(for security use);

6) Strong signals with high gain antenna

7) Attractive plastic casing

8) SIM card supported (1.8V, 3V)

9) DTMF CLIP (Caller ID display)

10) Provides reversal polarity signal for billing.

11) No noise and clear voice.

12) Suitable for wide voltage range and low power consumption

12) Suitable for all kinds of weather and environment

13) RJ-11 ports (two extensions)

14) Locking PIN /Locking Phone.


Specifications:

1) Air interface standard: GSM 900/1800Mhz phase 2+

2) Frequency ranges: Check manual.

3) Channel space: 200kHz

4) User line, bell signal: In line with GB/T15279

5) Max power: 0.25W / 0.5W

6) Consumption:

A) Immobility: Less than 25mAh

B) Transmission: Less than 400mAh

7) Sensitivity: -105dB

8) Dial tone frequency: 450MHz (standard)

9) Surrounding temperature: -10? ~ +40?

10) Relative humidity: 45% ~ 90% (without frost)

11) Atmosphere pressure: 86 ~ 106KPa

12) Environment noise: <60dB

13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /

Chosen direction)

14) AC power: DC 10V - 20V

15) Input: AC100 - 230V, 50 / 60Hz

16) Output: 12V 1.5A

17) Switching type / transformer type AC adapter (optional)

18) Connector of power: China/US/European/British(optional)

19) Dimensions (L x W x H) (average): 185 x 135 x 22mm

20) Weight:

A) FWT: 400g

B) Full set with AC adapter, antenna and box: 0.80kg

21) Color: White

22) Connection mode: RJ-11 phone sockets

23) Antenna connection: SMA antenna connection
