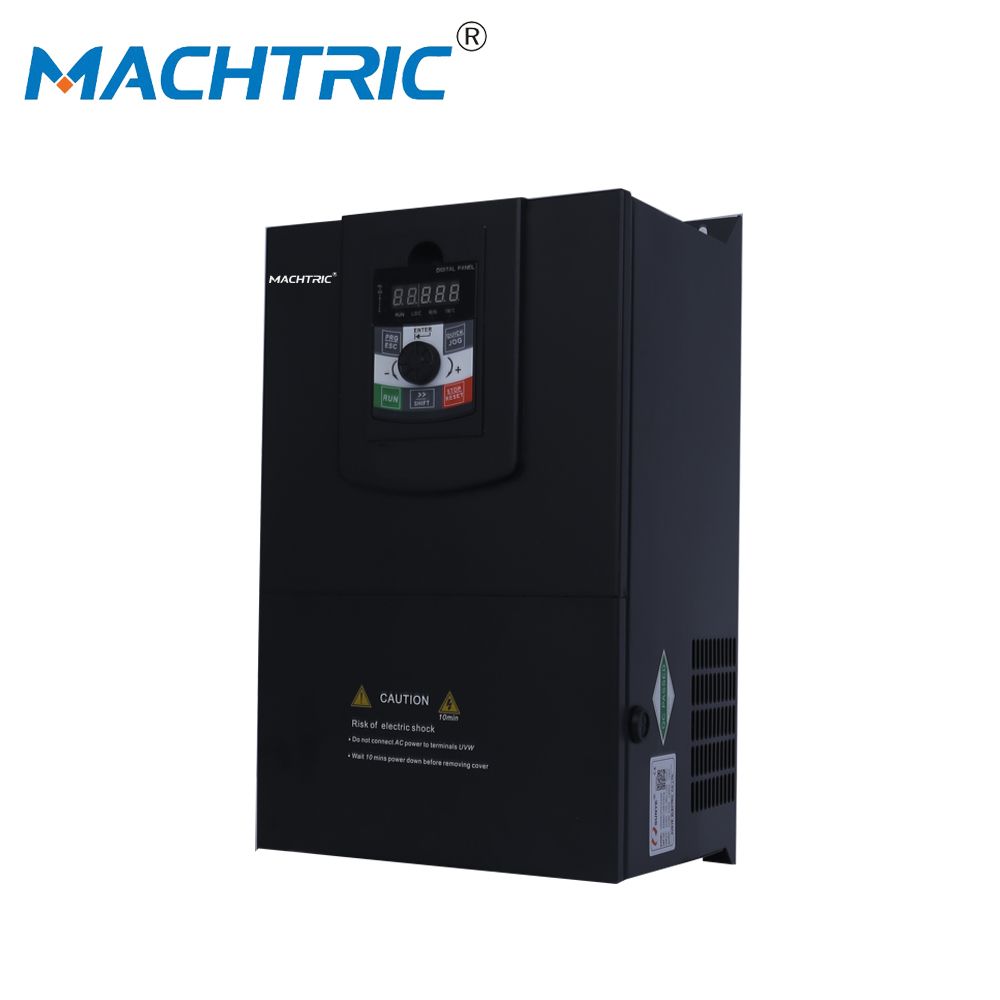

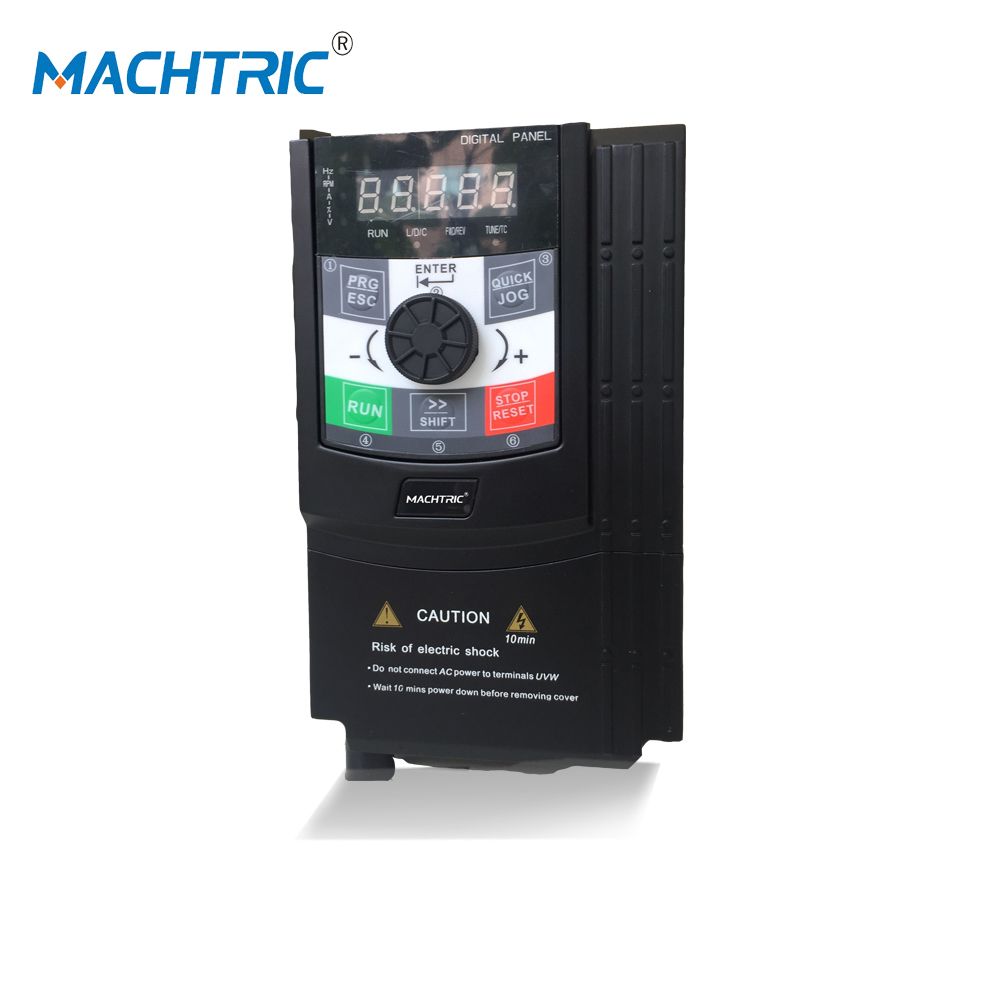

Hot Selling Model High Performance 50Hz 60Hz Frequency Converter AC Controller
| Price: |
US $ 135/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S1100VG |
| Product Name: |
0.75kw AC-DC-AC Frequency Converter |
| Color: |
Black |
| Power Range: |
1.5kw~630kw(Normal Duty) 0.75kw~550kw(Heavy Duty) |
| Pid Control: |
Built-in |
| Warranty: |
18month |
| Max. Frquency: |
600Hz |
| Protection: |
Over Voltage |
| Altitude: |
Lower Than 1000m |
| Vibration: |
<5.9m/C2(0.6g) |
| Control Mode: |
V/F Control,Vector Flux Control |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
Hot selling model high performance 50Hz 60Hz frequency converter AC controller
Production Specification:
| Item | S1100V |
| | Power range | 1.5KW~630KW(normal duty) |
| 0.75KW~550KW(heavy duty) |
| | | 380V(3phase)50/60Hz |
| Voltage range | (-15%...+20%)of rated voltage |
| | Control mode | V/F control |
| Vector flux control |
| Basic function | Maximum frequency | 600Hz |
| Input frequency resolution | Digital setting: 0.01Hz |
| Analog setting: maximum frequency ×0.1% |
| Startup torque | G modle: 0.5Hz/180%(heavy duty) |
| P model: 0.5Hz/120%(normal duty) |
| Speed adjustment range | 1:200(Open loop Vector flux control) |
|
| Speed stabilization | Open loop Vector flux control:≤±0.5% |
| precision |
| Speed stabilization | Open loop Vector flux control:≤±0.3% |
| precision |
| Torque response | ≤40ms(Open magnetic flux vector control) |
| Overload capacity | G model: 150% rated current 60s; 180% rated current 3s |
| P model: 130% rated current 60s; 150% rated current 3s |
| Torque hoist | Automatic torque hoist; manual torque hoist 0.1% to 30.00% |
| V/F curve | Linear V/F, Multi-point V/F, and Square V/F |
| Speed-up and Speed-down curve | Straight line or S curve speed-up and speed-down |
| mode;Two kinds of speed-up and speed-down time |
| Acceleration/Deceleration time | Speed-up and speed-down time ranges between 0.0s to 3000s |
| DC brake | DC brake frequency:0.00~400.00Hz |
| brake time:0.0s to 36.0s,and brake current value: 0.0% to 100.0%. |
| Jog control | Jog frequency range:0.00Hz to 50.00Hz; |
| jog speed-up/speed-down time: 0.0s to 3000.0s. |
| Simple PLC and MS speed running | It can realize a maximum of 16 segments speed running |
| via the built-in PLC or control terminal. |
| Built-in PID | It is easy to realize process-controlled close loop control system |
| voltage regulation(AVR)Auto | It can keep constant output voltage automatically in case |
| of change of mains voltage. |
| | Torque limit
and control | "Shovel" characteristics, the runtime automatic torquelimit, prevent frequent |
| over-current trip; closed loop vectormodel can realize the torque control |
| Individua-lized function | Peripherals self-detection upon power-on | It can conduct safety detections on the peripherals upon power-on, |
| including earth and short circuit detections. |
| Shared DC bus function | It can realize the function that multiple inverters share the DC bus. |
|
| JOG key | Programmable key: Select the command channel switching/forward |
| and reverse rotations/jog operation. |

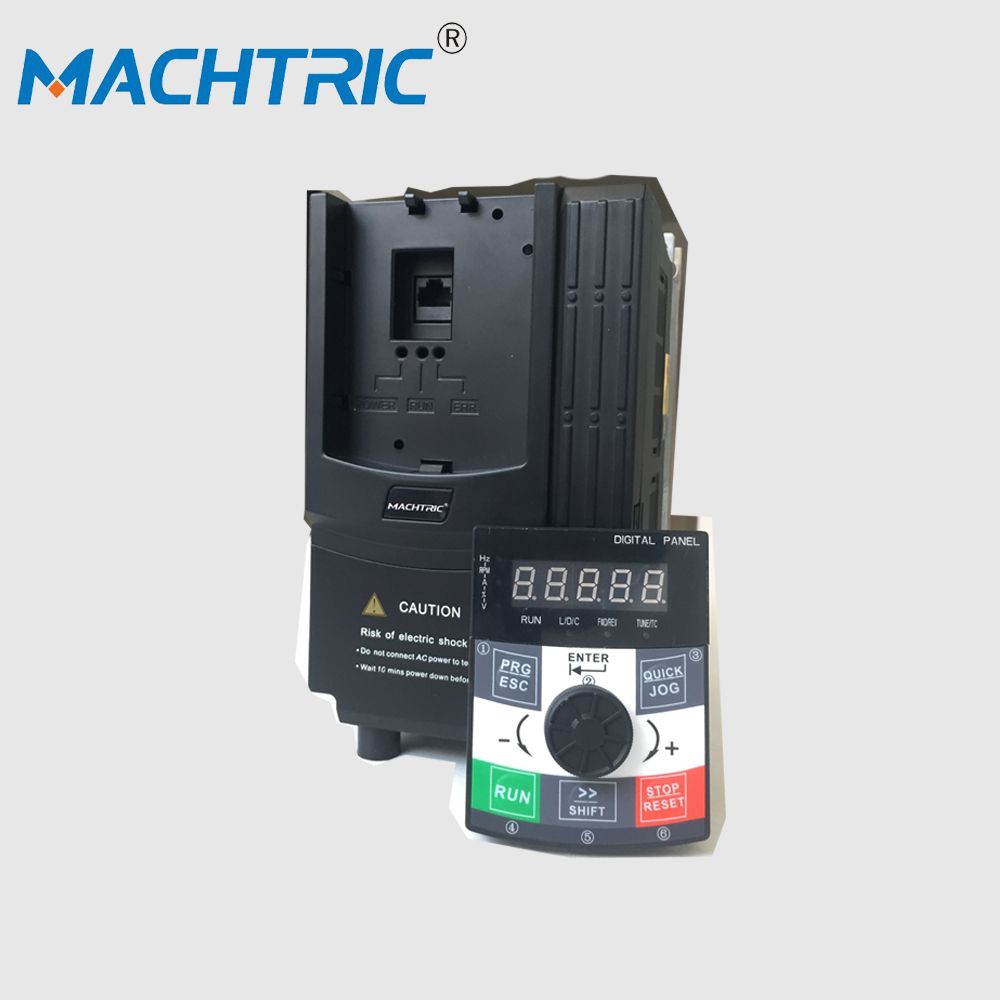

| Display and Keyboard | LED display | The machine has the LED keyboard,and realize parameter |
| settings,status monitoring function. |
| LCD display | Optional, / English prompts content |
| Operation | Parameter Copy | Keyboard can be copied using the parameters to achive |
| the rapid replication parameter |
| structure | Protective | IP20 |
| Question | Answer |
| 1. what's the payment term? | We accept T/T, L/C, D/P, WEST UNION, CASH |
| 2. What's the delivery time ? | Usually it will take about two - three weeks for production .It depends on your quanlity . |
| 3. What is the standard of package? | Export standard package or special package according to customer requirement |
| 4. what kind of product quality your factory offer? | We offer most competitive prices with best quality |
| 5.Which market do you already sell? | We already ship to Europ, Middle East, South America, Asia, Afria etc. |
| 6. Do you accept OEM business? | We accept OEM with your autherization. |
