| Prod Model: |
cat6 |
| Product Name: |
CAT6 UTP |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
VDE |
| Wire Core Material: |
Tc Bc CCA Cu CCS |
| Model: |
CAT6 |
| Brand: |
Gemt |
Product Description
CAT6 Lan Cable
Specifications
1)UTP/FTP Cat5, Cat5e cable, utp/ftp Cat6 lan cables are available
2)CCC,CE,CB,RoHS approved
3)Sale in Asia,Europe,Africa etc
We supply all kinds of network cable:utp/ftpCat5, Cat5e cable, utp/ftp Cat6 lan cable with superior quality,reasonable price,prompt delivery.

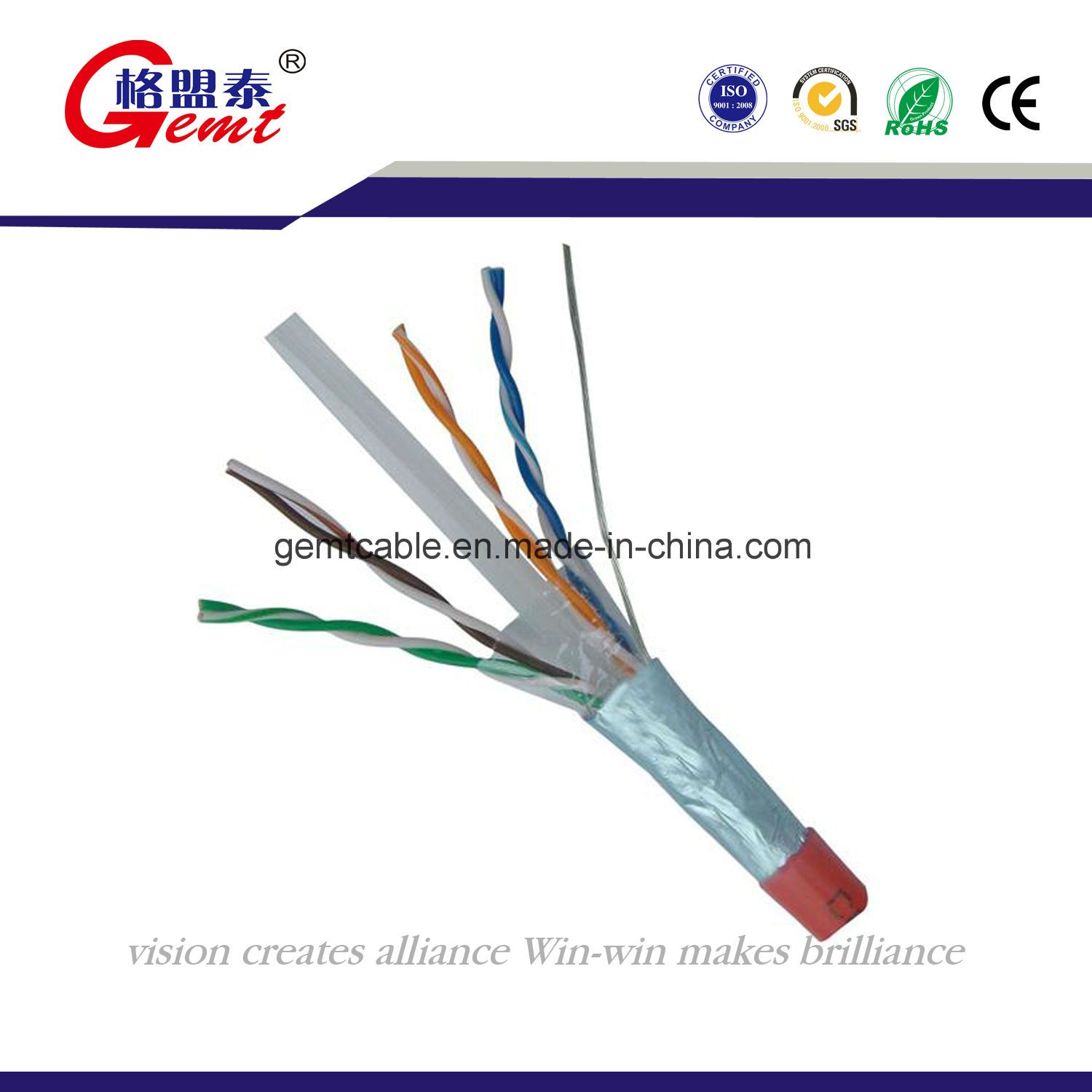

Structure
Inner Conductor O.F.C Bare copper Solid 0.52mmBC(or customized)
InsulationHDPE Φ0.93mm
Shielding: Aluminum Foil + Tinned Copper drain wire(0.50mm TC)
Jacket: Flame retardant Grey PVC Nom O.D.: Φ6.30mm
Application:
The horizontal twisted shield pair cable for digital communication application, is mainly used for the wiring between telecom lead-outs of work area and floor disturbance comprehensive system, as well as the wiring between the user telecom lead-outs and floor distributor comprehensive system, it meets the requirements of 100MHz data communication.
Its shield protection allows it to avoid error codes caused by environmental disturbance in transmittance. It applies to high electromagnetic disturbance environment such as hospital, telecom room, airports. With standard wiring length 90m,it is connected in T568A or T568B manner. The end employs shield and grounded parts, so as to ensure Channel to transmit normally under shield protection.
Coded according to ANSI/TIA/EIA-568-B color code
Specifically applicable to following systems:
155MbpsATM100MbpsTP-PMD
100Mbps Ethernet100BASE-Tand other systems below 622Mbps
1000Mbps Ethernet
10Mbps Ethernet
4Mbps and 16Mbps Token Ring Network
Specification:
| utp/ftp Cat5e/6e Lan Cable |
| |
| Cable Construction( Patch Cable Cat5e/6e-AWG24) |
| Part Number | Construction | Conductor dimension(mm) | Core dimension(mm) | Number of Pairs | Shielding |
| SS-201-08 | Patch Utp#24 | 7/0.2 | 0.98 | 4 | / |
| | | | | | |
| Cable Construction(Cat5e-AWG24) |
| Part Number | Construction | Conductor dimension(mm) | Core dimension(mm) | Number of Pairs | Shielding |
| SS-202-01 | Utp | 0.51 | 0.91 | 4 | / |
| SS-201-07 | Utp | 0.51 | 0.91 | 25 | / |
| SS-202-10 | FTP | 0.53 | 1 | 4 | All foil |
| SS-202-21 | S-FTP | 0.51 | 1 | 4 | All foil+Cu braiding |
| SS-202-04 | Water proof | 0.51 | 0.93 | 4 | / |
| SS-202-22 | Undercarpet | 0.51 | 0.91 | 4 | / |
| SS-202-23 | Bundled UTP | 0.51 | 0.93 | 2*4 | / |
| SS-202-24 | Bundled UTP | 0.51 | 0.93 | 4*4 | / |
| SS-202-25 | Bundled UTP | 0.51 | 0.93 | 6*4 | / |
| SS-202-26 | Bundled UTP | 0.51 | 0.93 | 8*4 |
Main Export Markets:
Eastern Europe
North America
Mid East/Africa
Central/South America
Asia
Western Europe
Australasia
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 25 years.
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located in a small town. The labor and raw materials cost are relatively low there.
4) Huge Inventory Allows Us To Ship Your Order Immediately
5) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
6) We ship worldwide.

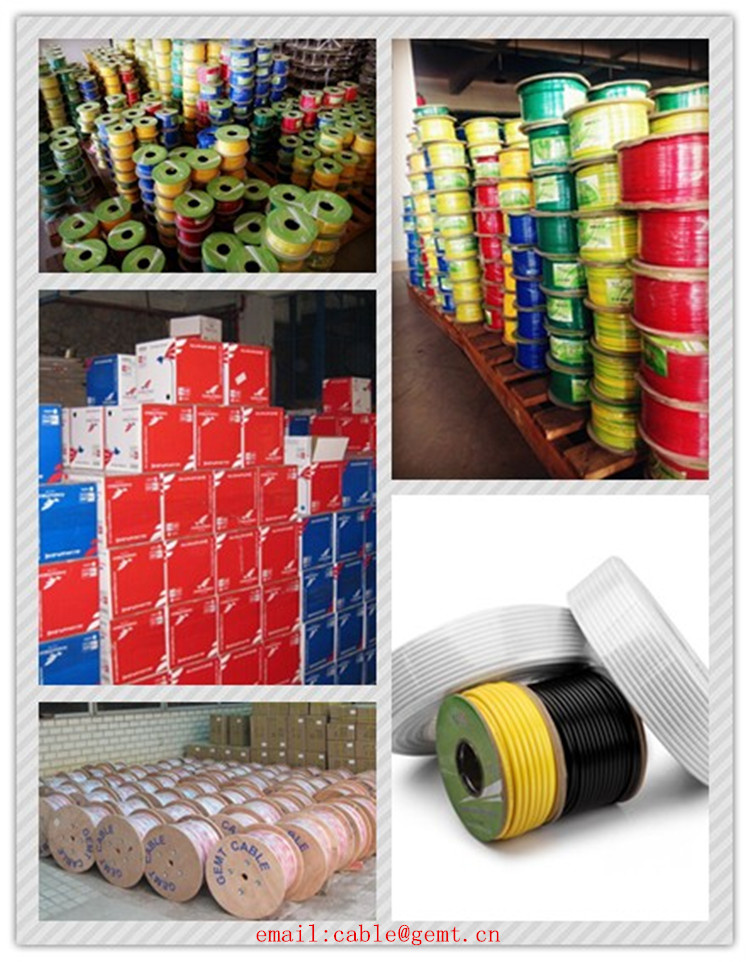

Packing:
1)Packing length:305M/Roll
2)Inner packing: Wooden reel, Plastic reel, Paper reel available
3)Outer packing: Carton box, Pull out box, Pallet available
4)Outer box brands, jacket colors, conductor material as customers requirement.
We also can manufacture many other specifications, if you have interest, welcome your enquiry! Everything we do is trying to make your business more successful.

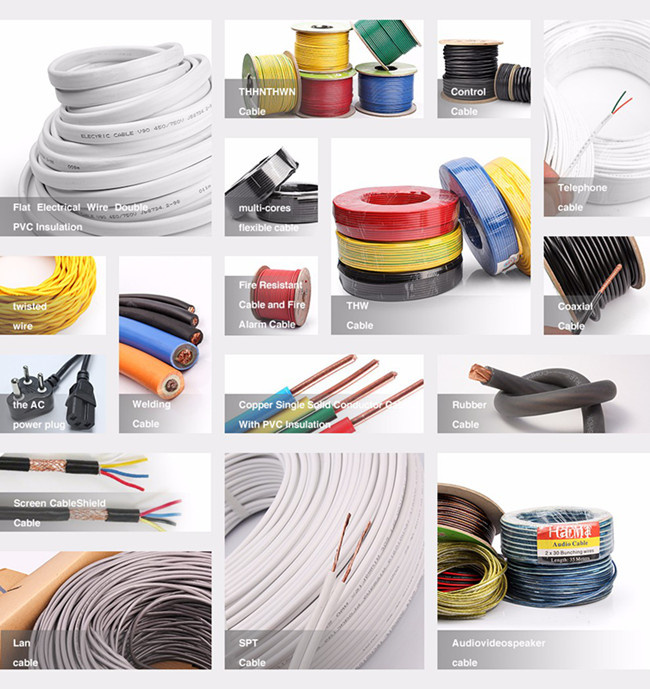

Our products

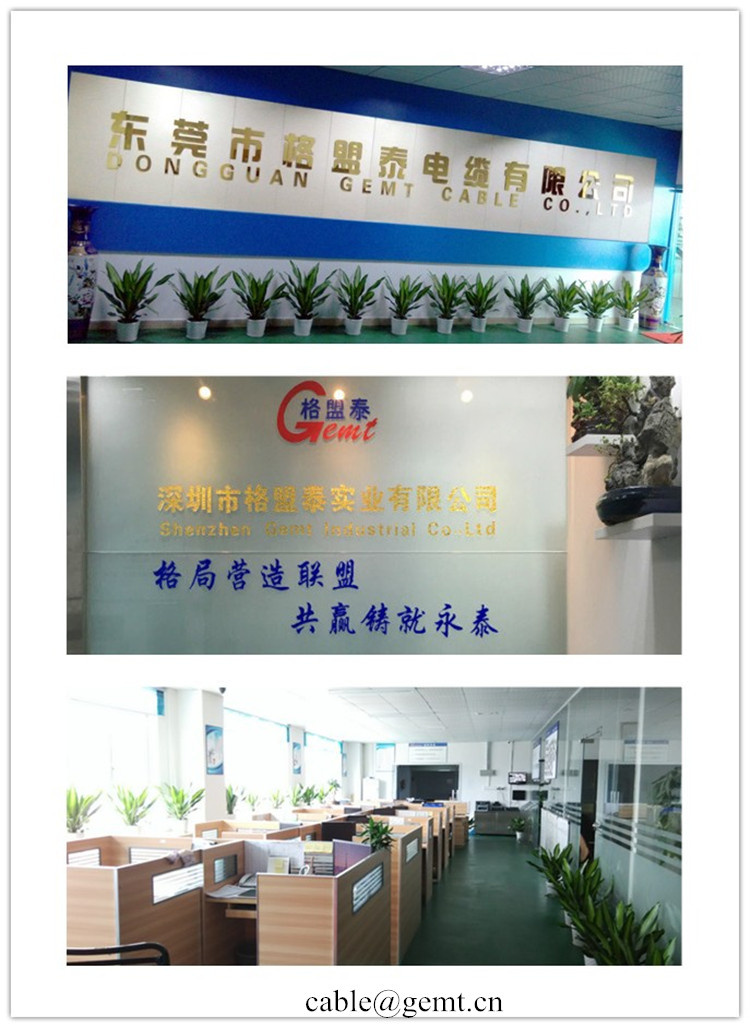

Company Information
Introduction of GEMT Cable Co., Ltd.
1. WHO ARE WE?
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, Power cords, etc.
2. WHEN WERE WE BORN?
Gemt Cable Co., Ltd was established in 1991. For now we have over 25 years in manufacturing cables and wires. We become more mature, more responsible to our customers!
3. WHERE ARE WE?
HQ:Shenzhen Gemt Industrial Co., Ltd.
Add: International Technology Building 3305, Shennan Road, Futian District, Shenzhen City, Guangdong Province, China
Factory: Dongguan Gemt Cable Co., Ltd.
Add: 3rd Floor, Shangqiaosonglong Avenue NO.66, Dongcheng Street, Dongguan City, Guangdong Province, China
Welcome to visit us anytime!
4. WHAT WE HAVE?
We have advanced production lines and inspecting equipments. Our products is with CE,CB,RoHS certificates, by strictly confirming to GB,IEC and ISO9001:2000 standards.
5. WHY CHOOSE US(GEMT)?
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable

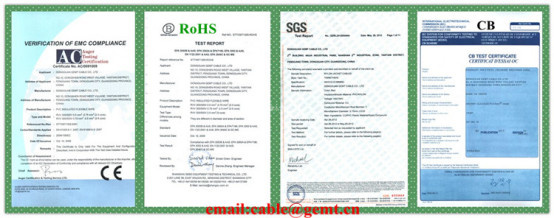

Certifications
FAQ
Q: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the products.
