Hot Selling Rain Raindrops Controller Module Detection Rainwater Foliar Sensitivity Sensor Power Module New

Name: Hot Selling Rain Raindrops Controller Module Detection Rainwater Foliar Sensitivity Sensor Power Module New
Brand: all-electronics-online.com
SKU: 830909015
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 0.46-0.53/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FUT3435

Product Description

Product Features

All products are tested for stability, consistency and reliability. Ensure product excellence.

Welcome Guide, our worry-free 6-month refund and friendly customer service.

This product is widely used in product development, student experiments, maintenance, production, etc.

If you have any questions, please contact us

Product Description

The picture is for reference only

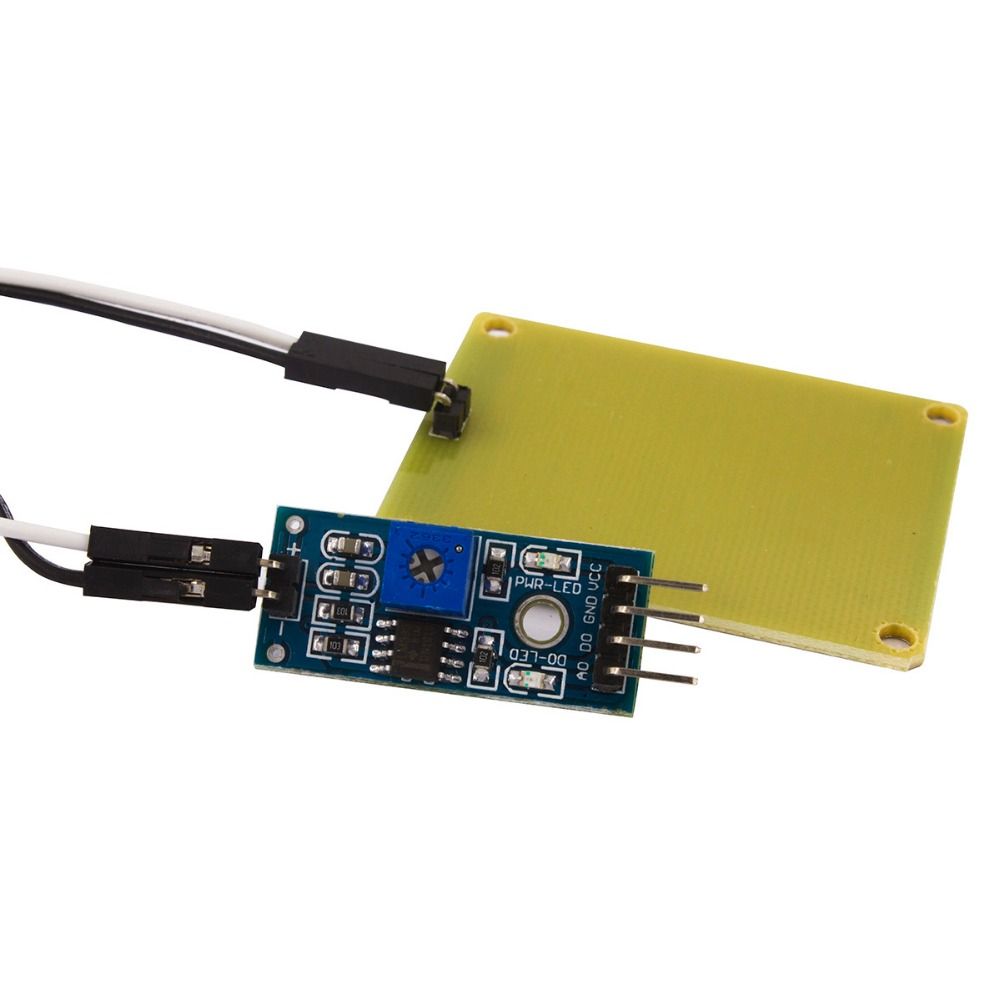

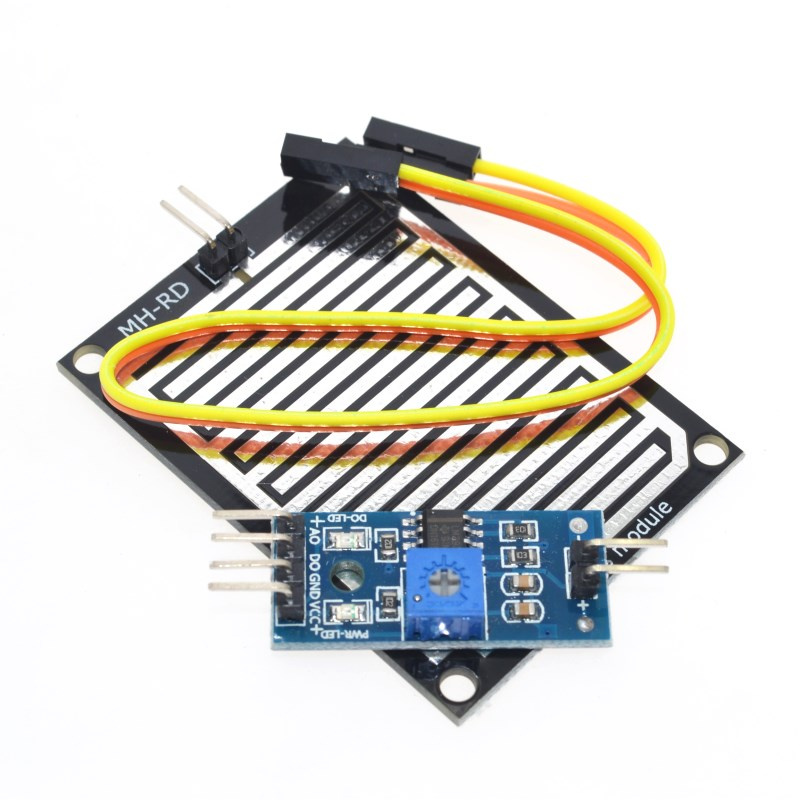

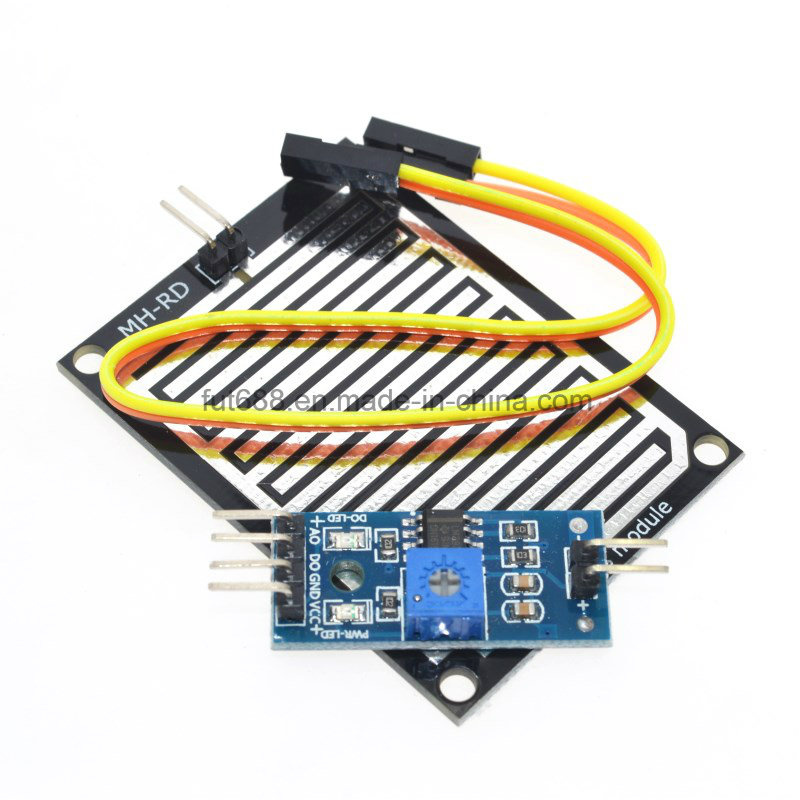

Features:

1. The sensor uses the FR-04 high-quality double-sided materials, King Size 5.0 * 4.0CM, and with the surface of the nickel plating treatment, against oxidative, conductivity, superior performance and longevity;

2. The comparator output, the signal is clean, waveform, driving ability over 15mA;

3. Distribution bit to adjust sensitivity;

4. Operating voltage 3.3V-5V

5. The output in the form: digital switching outputs (0 and 1) and analog AO voltage output;

6. A fixed bolt hole for easy installation

7. Voltage: 5V

8. Power indicator, the output signal LED indicator.

9. TTL-level output, TTL output valid signal is low. Driving capability 100MA so, can directly drive relays, buzzer, a small fan, and so on.

10. Sensitivity can be adjusted via potentiometer

11. LED lights up when there is no rain output is high, raindrop up, the output ground level, LED light.

12. Raindrops and control panels are separate, easy to wire leads.

13. A large area of rain board, more conducive to detect rain.

14. Board with positioning holes to facilitate installation

15. Small board PCB size: 3.2cm x 1.4cm

16. Wide voltage LM393 comparator
