Hotsold Useful of 4000 Hours at 105c/85c Screw Terminal Alumminum Electrolytic Capacitor Tmce22

Hotsold Useful of 4000 Hours at 105c/85c Screw Terminal Alumminum Electrolytic Capacitor Tmce22
Price: US $ 0.001/Piece
Trade Terms: FOB,EXW
Min Order: 1000/Piece
Pay Type: T/T,Western Union
Prod Model: TMCE22
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage Range: 10 to 100 and 160 to 450V
Type: Aluminum Electrolytic Capacitor
Application: Air Conditioner
Package Type: Screw Terminal
Capacitance: 10000UF
Tuning: Electrolytic Capacitor

Product Description

                                TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105ºC/85ºC





Product Description

TMCE22 Screw Terminal Aluminum Electrolytic Capacitor 105ºC /85ºC

TMCE22 Aluminum Electrolytic Capacitor Feature:

1.Capacitor Load life 5000 hours at 105ºC.
2.TMCE22 capacitor long life,higher ripple current than TMCE21 series.
3.Extremely low impedance.

TMCE22 Aluminum Electrolytic Capacitor Screw type 350V 400V 450V 2200UF  2700UF 3300UF 3900UF 4700UF 5600UF 6800UF 10000UF

Aluminum Electrolytic Capacitor Feature:

 Compliant to the RoHS directive
 Leading product with heat resistance and long life at 85° C to meet the
 Requirement for high temperature and long life in the inverter circuit


Details
SPECIFICATIONS Aluminum Electrolytic Capacitor

Item
Specifications
Operating Temperature Range-40°C ~ + 105°C
Rated Voltage Range350 ~ 450 V.DC
Capacitance Tolerance±20% (20°C,120Hz)
Leakage Current0.01 CV (μA) or 5mA, whichever is smaller or less
[ C=nominal capacitance (μF), V=rated voltage (v) ]
Dissipation FactorLess than the value specified in the standard prroducts table (20°C, 120Hz)
Permissible Ripple CurrentAs specified in the standard products table (105°C, 120Hz)

High-Temperature Load
After the rated voltage with specified ripple current is applied at 105°C for 5000 hours:
Capacitance tolerance: ±15% or less of the initial value
Dissipation factor: 175% or less of the specified initial value
Leakage current: Specified intial value or less
OtherJIS C 5101-4
RIPPLE CURRENT CORRECTION COEFFICIENT
Temperature (°C)406085105
Coefficient2.442.162.01.0
Frequency (Hz)50 / 601203001K≥10K
Coefficient0.71.01.11.31.4

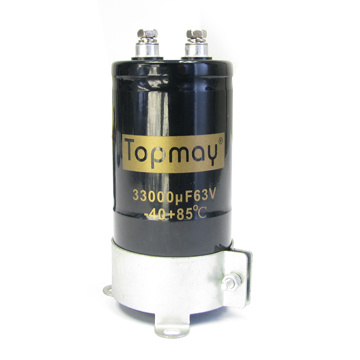

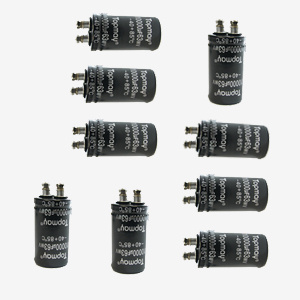

Photos Show:

Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.

Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.

Presently, Topmay products mainly include the following products:

The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.

Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.

Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
