House System Telecom Power Supply DC-AC Integrated UPS
| Price: |
Negotiable/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CNL1500 |
| City Power/Inverted Transfer Time: |
≤10 |
| Communication: |
RS232/Dry Contact |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Consnant |
Product Description

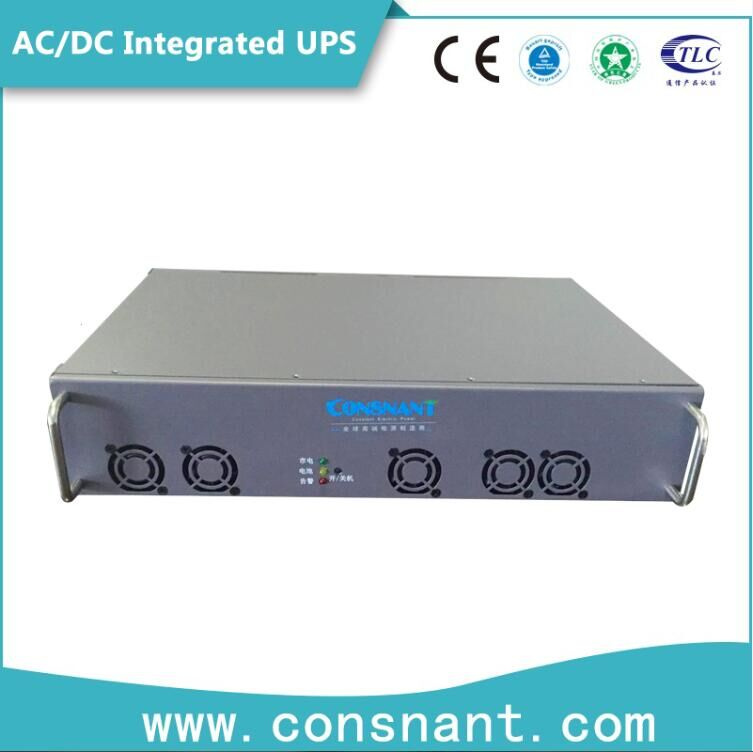

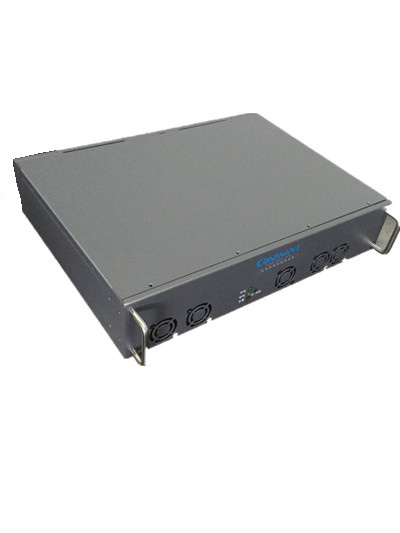

Highly Intelligent and Integrated AC-DC Power Supply UPSFeatures:AC/DC Integrated UPS adopts advanced digitalized controlling technology, AC/DC double output. Current is limited when in DC current, and is absorbed when in peak surge, comprehensive protecting the equipment automatically. Unattended operation and intelligent remote controlling and multifunctional, the UPS is intelligent eco power of new generation.
Application:
The house system of all operators , like super market, basement, meeting room, dancing hall, and huge building and other place including closed sites,micro base station, RPT(Repeater); BBU, RRU; integrated access to ONU that adopts AC or DC power equipment.
Products Features: - 220VAC and 48 VDC dual output, effectively solve different kind of power problem of telecom loading, which is convenient to use power.
- Wide AC input range avoids frequently changing to battery to supply power, which can extend the service life, reducing the cost.
- Built-in or separated lithium iron battery, portable designing,small size, mainframe 1U output 220VAC 2KVA and 48V 30A, light weight.
- Stable and reliable output function, branch output can be configured flexibly. AC output: 1KVA-3KVA pure sine wave; DC output: 6-60A/ 48V, with the current-limiting and power off protection function.
- High efficiency, energy saving. The efficiency of the power module can reach 90% under the Battery Mode, and 95% under the Electric supply.
- Perfect protection function, including output over voltage protection and under voltage protection; output overload and short circuit protection; inverter over temperature protection; battery under voltage warning and protection.; battery over charge protection; anti- surging and lighting strike protection, which tremendously verify the stability and reliability of telecom operation system.
- DC cold start function. The UPS can be used in the absence of the city power with DC cold start function, meeting the user's emergency need better. Battery pack can be configured with lead-acid batteries or iron lithium batteries;
- Battery power protection. The battery protection can be set in accordance with the requirement of the user when it rolled off the factory floor.
- Unattended function. When the electricity for a long time failure leaving the system to automatic protection due to battery under voltage, the UPS can automatically boot and charge the battery after the electricity back to normal, effectively protecting the battery and extend battery life. Battery pack can be configured lead-acid batteries or iron lithium battery;
- Intelligent communication interface. Through the monitoring software, standard RS232 communication interface can directly remote debug and monitor the operation of the power system, simplifying the network management, and improve system reliability;
- Dry contact communication interface, including mains power, low battery, the system alarm interface.

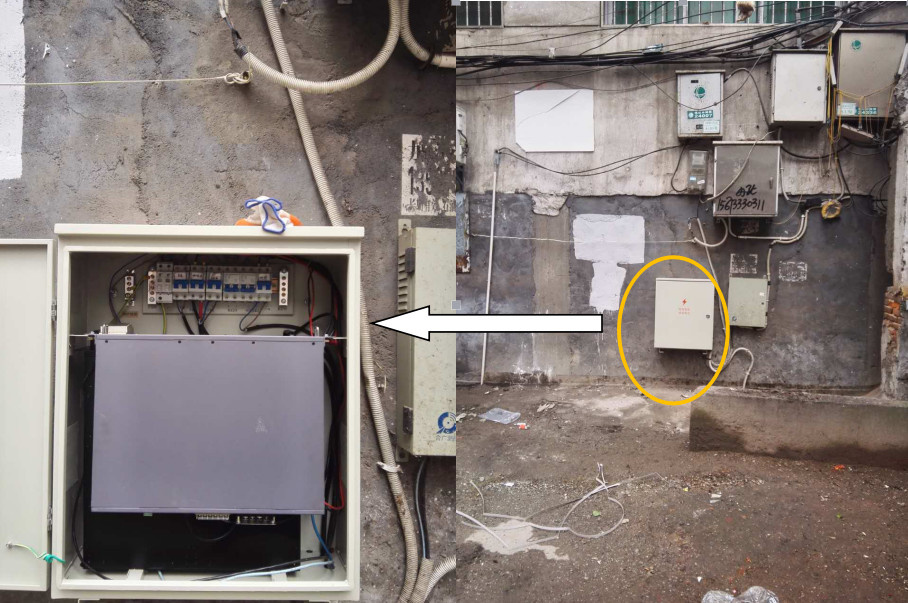

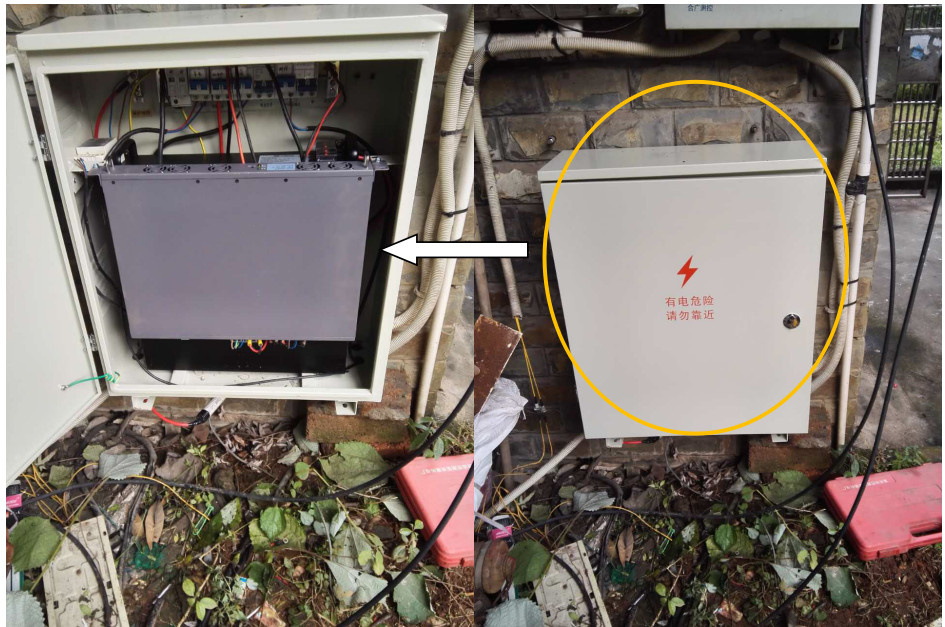

- AC-DC integrated UPS can be used in variety of scenarios. Indoor distribution , It also support using in the installed outdoor floor cabinet , as well as using as a remote far-end equipment 48V output inverter to some AC equipment, such as outdoor cabinet air conditioning power supply
- With the competitive price and reliable quality, the item can be rest assured that the promotion has been used more than 10,000 units.
- The operator has a collection of iron and lithium batteries can be used in separate areas, on-site connection. No collection of iron and lithium batteries in the region can be integrated machine, Division I to provide host and iron lithium battery integration machine.
Battery:

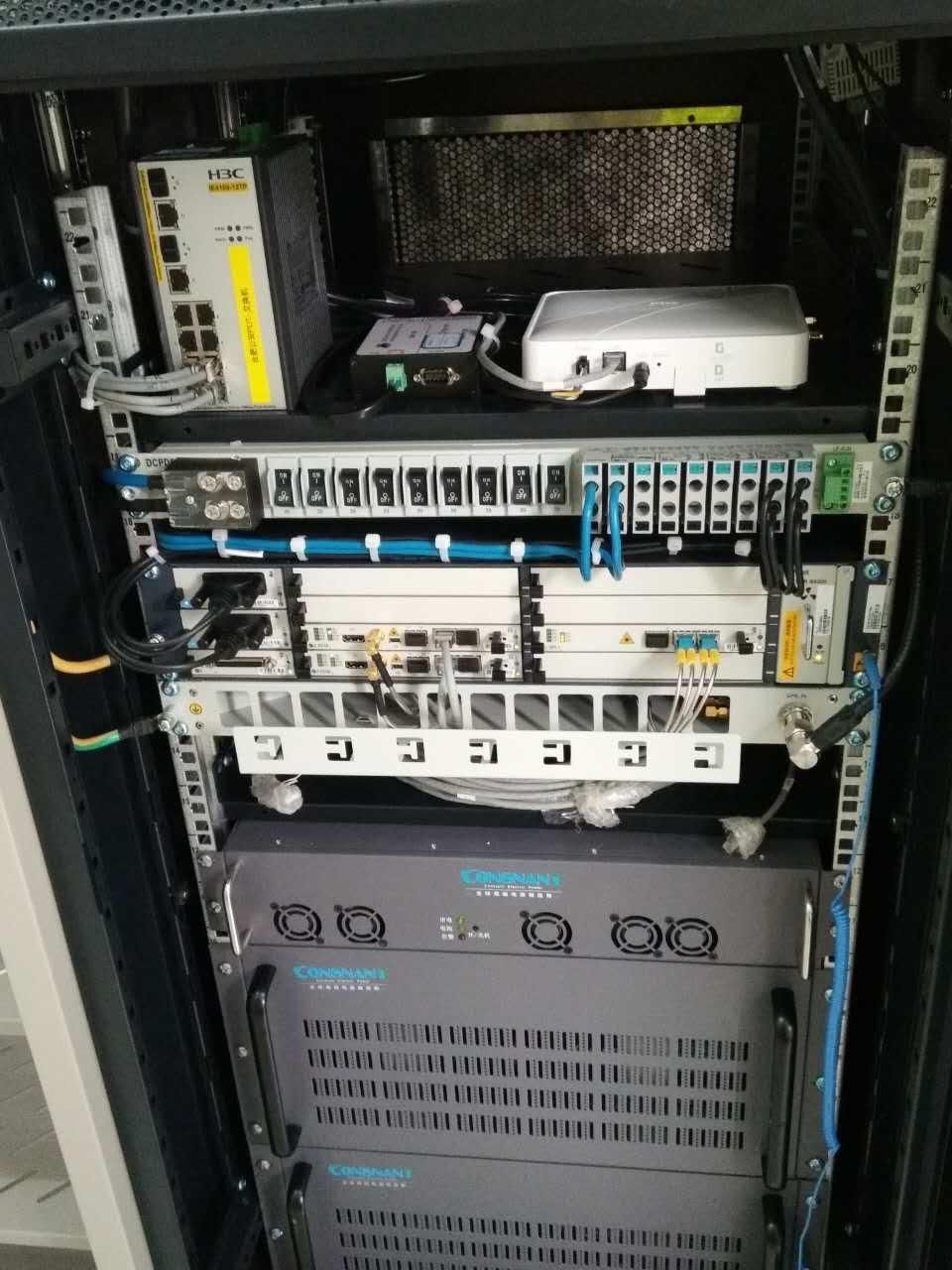

48V iron lithium batteries and lead-acid batteries can be adopted. The power host can be installed directly in the existing outdoor floor cabinet or mounted on the indoor wall of weak basement room.Specifications: | Item | XMI05HR | XMI10HR | XMI20HR | XMI30HR |
| Input |
| AC input voltage | 176-250Vac |
| Battery voltage | 48 Vdc |
| Battery voltage range | 43-56Vdc |
| Cooling | fan
|
| AC input current | ≤8AMAX |
| Input frequency range | 50±5%Hz |
| Power factor | ≥0.99 |
| Output |
| AC output | Rated output power (VA) | 625 | 1000 | 2000 | 3000 |
| Output active power(W) | 500 | 800 | 1600 | 2100 |
| Rated output voltage | 220VAC |
| Output voltage range | 220±3%VAC |
| Output efficiency | ≥90%
|
| Rated output frequency | 50Hz |
| output frequency range | 49-51Hz
|
| Output waveform | Pure sine wave
|
| THDi | ≤3% |
| DC output | Rated voltage | 48V
|
| Rated current(different charging module optional) | 6A/8A/20A/30A | 6A/8A
l |
| AC/ Inverter transfer time | ≤10mS
Loading(rated loading power) |
| Protection function |
| AC input low voltage transfer | ≤176VAC
(Return difference≥10Vacthe .Switching power value under high and low temperature is only for reference) |
| AC input over voltage transfer | ≥250VAC
(Return difference≥10Vacthe .Switching power value under high and low temperature is only for reference) |
| Over temperature protection | Yes
(Automatic recovery) |
| Battery low voltage protection point | ≤40VDC |
| Battery low voltage warning | 43±0.5VDC |
| Battery over voltage protection point | ≥58VDC |
| Battery over voltage recover point | ≥55VDC |
| output over current protection | |
| 100% | 10seconds | 1minutes |
| 150% | 10 seconds | 0ms |
| over temperature protection | yes |
| output short circuit protection | Yes
(short circuit test is forbidden when the AC is connecting) |
| Battery polarity reverse | yes |
| output over voltage protection | ≥245VAC |
| output under voltage warning | ≤200VAC |
| Battery bank |
| Rated battery voltage | 48Vdc |
| Max. Charging voltage range | 55-56Vdc |
| Max. Charging current(Depend on the charging module) | 6A/8A/20A/30A | 6A/8A
|
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.
We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
