| Prod Model: |
building wire THW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Jinshui |
| Place Of Origin: |
Zhengzhou City, Henan Province |
| Size: |
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2 |
| Size 2: |
12AWG, 8AWG, 6AWG, 4AWG, 2AWG, 1/0, 2/0 |
| Standards: |
IEC 60227, BS 6004 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
House, Building |
| Sheath Material: |
No Sheath |
| Brand: |
Jinshui |
Product Description

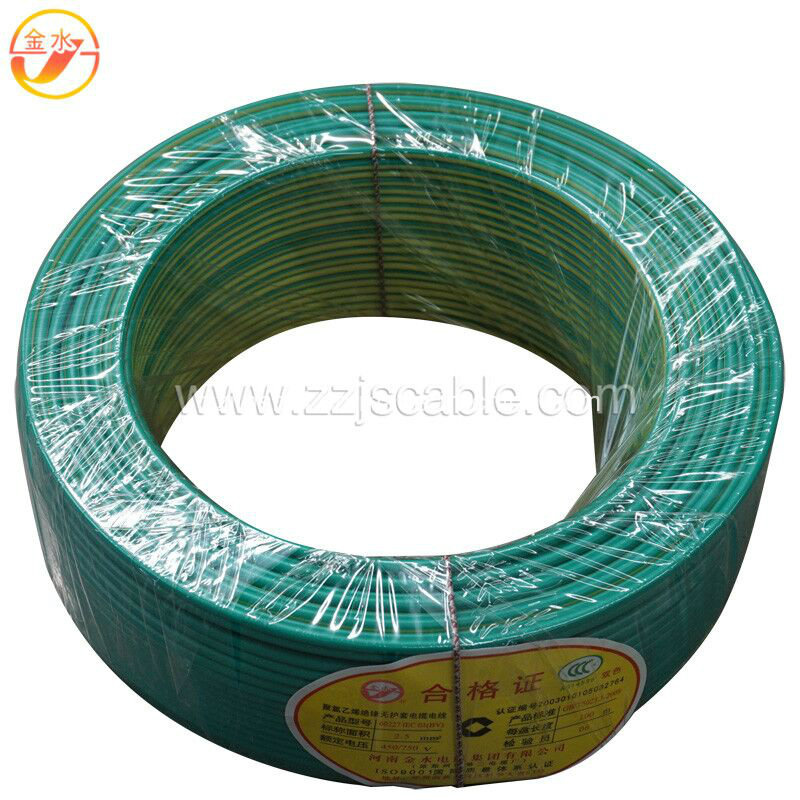

1.5mm 2.5mm 4mm 6mm Electric Copper Conductor PVC Coated Wire for House Wiring Cable
Product Description
1.Application of PVC Coated Wire :
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
2.Construction of PVC Coated Wire :
(1).Conductor: bare solid/stranded copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement.
(4).Outer sheath: PVC tapes ST2 to IEC.
3.Standards of pvc coated wire
The products can be produced according to standard GB/T 5023, IEC60227, BS6004, JB8734,and more we have extended the range of the type to fit for the requirement of the consumers.
4.Type, Name and Application of pvc coated wire .
Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
|
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
|
|
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
|
|
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
|
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires |
|
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires |
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires |
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
|
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
|
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
|
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
