| Prod Model: |
DC Planetary gear motor GMP36-555PM |
| Product Name: |
DC Planetary gear motor GMP36-555PM |
| Rated Voltage: |
6V,12,24V |
| Gear Type: |
Straight teeth |
| Life Time: |
5000H ~10000H |
| Output Shaft: |
Stainless steel hardened |
| Operating Temperature Range: |
-20 C-+50 |
| Axial Play: |
0-0.3 |
| Directions: |
CW/CCW |
| Recommended Input Speed: |
<8000RPM |
| Efficiency: |
80%-90% |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Planetary gear motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description
Website |
Website: www.ttmotor.com |
Contact |
Elina Yan |
Tel |
+86-1581-3704-981 |

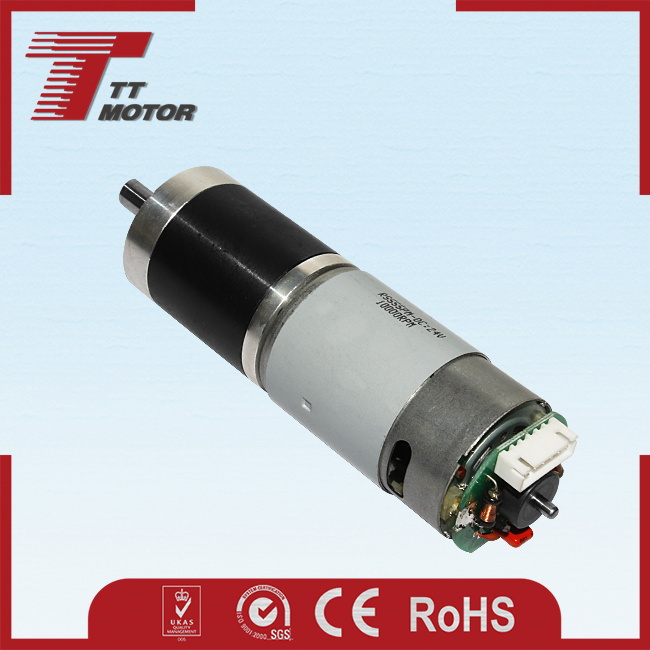

Household appliances big torque dc gear electrical motor
Gear motor Main Features
1.36mm planetary gearbox plus 36mm DC motor |
2.Small size DC gear motor with low speed and big torque |
3.36mm gear motor provide 3.0Nm torque and more reliable |
4.DC gear motors can match encoder 11ppr |
5.Reduction ratio:4,14,19,27,51,71,100,139,189,264,369,516,720 |
Motor technical data :
Motor model no. |
Rated voltage |
No-load speed |
No-load current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall current |
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
g.cm |
A |
TRS-555PM-1233 |
12 |
3300 |
200 |
2800 |
200 |
1000 |
5.7 |
1150 |
5.5 |
TRS-555PM-1250 |
12 |
5000 |
250 |
4300 |
230 |
1600 |
10.1 |
1640 |
12.6 |
TRS-555PM-2440 |
24 |
4000 |
150 |
3150 |
200 |
700 |
6.4 |
1000 |
2.7 |
Gear motor technical data : GMP36-555PM-1233-xxx
Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
720 |
Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
47.5 |
No-load speed rpm |
750 |
160 |
60 |
32 |
23 |
17 |
12 |
9 |
6 |
4 |
Rated speed rpm |
700 |
150 |
55 |
28 |
20 |
15 |
11 |
8 |
6 |
4 |
Rated torque kg.cm |
0.64 |
2.7 |
6 |
12 |
15 |
21 |
26 |
30 |
30 |
30 |
Max.momentary tolerance torque kg.cm |
3.7 |
15 |
35 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
Gear motor technical data : GMP36-555PM-1250-xxx
Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
720 |
Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
47.5 |
No-load speed rpm |
1200 |
250 |
95 |
48 |
35 |
25 |
19 |
13 |
10 |
7 |
Rated speed rpm |
1070 |
225 |
85 |
43 |
31 |
23 |
16 |
12 |
9 |
7 |
Rated torque kg.cm |
0.8 |
3.4 |
8 |
16 |
22 |
26 |
30 |
30 |
30 |
30 |
Max.momentary tolerance torque kg.cm |
6 |
25 |
59 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
Gear motor technical data : GMP36-555PM-2440-xxx
Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
720 |
Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
47.5 |
No-load speed rpm |
980 |
200 |
75 |
38 |
28 |
21 |
15 |
10 |
8 |
6 |
Rated speed rpm |
750 |
155 |
60 |
30 |
21 |
16 |
13 |
9 |
7 |
5 |
Rated torque kg.cm |
0.64 |
2.7 |
6 |
12 |
15 |
21 |
26 |
30 |
30 |
30 |
Max.momentary tolerance torque kg.cm |
3.2 |
13 |
25 |
50 |
60 |
70 |
70 |
70 |
70 |
70 |
Product Application
Applications: |
Business Machines: |
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
Food and Beverage: |
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
Home Entertainment and Gaming: |
Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
Home Technologies: |
Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
Lawn and Garden: |
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
Personal Care: |
Hair Cutting, Hair Care, Massagers. |
Power Tools: |
Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
Camera and Optical: |
Video, Cameras, Projectors. |
