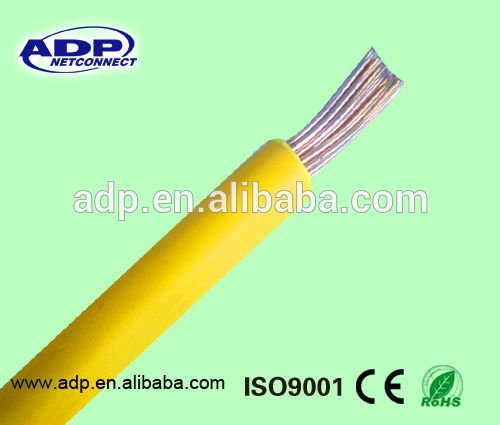

Household Using PVC Sheath Flexible Power Cable

Name: Household Using PVC Sheath Flexible Power Cable
Brand: all-electronics-online.com
SKU: 742177465
Availability: InStock
Rating: 4.7 (35 reviews)

Price:	US $ 0.05/Meter
Trade Terms:	FOB
Min Order:	10000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	household using PVC sheath flexible power Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Copper
Conductor Section:	0.5-300mm2
Jacket:	(Lszh/RoHS) PVC
CE ISO CCC RoHS:	Approved
Color:	Red,Yellow,Blue....Optional
Use:	Household Using
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC & AC
Certification:	RoHS
Model:	Bvr
Brand:	ADP
Application:	Household Using

Product Description

Household using PVC sheath flexible power Cable

BVR cable for electrical devices
Certificated by CE ISO SGS ROHS
Quick Delivery, Low Price
OEMis available

Specifications:
1. Conductor: Stranded bare copper
2. Insulation: PVC
3. Rated voltage: 300/500V 450/750V
4. Cross section: 0.5-300mm2
5. Temperature range: 0 ° C-70° C
6. Insulator: PVC
7. Colors: Red/yellow/blue/white/black/yellow-green/brown, Any color is available

Note: 1. ) Customizes sizes of cable negotiable
2. ) Bare copper or CCA conductor negoctiable

Application:

This product is suitable for AC rated voltage U0 / U 450/750V and below appliances, power circuits, lighting, power distribution cabinet connecting lines, instruments, electronic equipment and automation devices. Electronic Wire

Nominal cross-section(m m 2 )	Insulation Thickness (mm)	Average maximum diameter(mm)	Minimum insulation resistance MΩ/km(70°c)
2.5	0.8	4.1	0.011
4	0.8	4.8	0.009
6	0.8	5.3	0.0084
10	1.0	6.8	0.0072
16	1.0	8.1	0.0052
25	1.2	10.2	0.0058
35	1.2	11.7	0.0052

Size	Conductor O.D.	PVC thickness
0.5mm2	2.06mm	0.6mm
0.75mm2	2.23mm	0.6mm
1.0mm2	2.39mm	0.6mm
1.5mm2	2.85mm	0.7mm
2.5mm2	3.46mm	0.8mm
4.0mm2	3.91mm	0.8mm
6.0mm2	4.41mm	0.8mm
