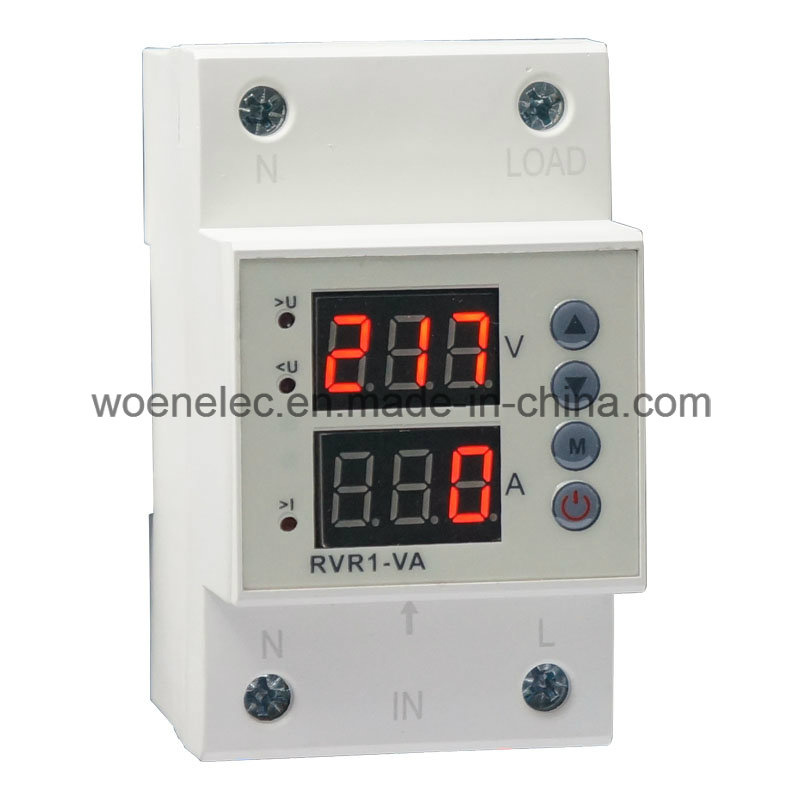

Household Voltage and Current Protector

Name: Household Voltage and Current Protector
Brand: all-electronics-online.com
SKU: 714050022
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 7.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVR1-VA

Product Description

Introduction
The voltage protector is design to protect home appliance(refrigerators, air conditioners, washing machines, television, video and audio equipment, etc) with capacity up to 13.9kW against the unacceptable voltage fluctuations and the effects of the neutral conductor interruption.

Features
1. Microprocessor control technology
2. Three modules, 54mm wide
3. 3 digit display for operating voltage value
4. Overvoltage, undervoltage and overcurrent
5. LEDs indication for vervoltage and undervoltage faults
6. Parameters setting by keys
7. Din-rail mounting

Technical data

Rated supply voltage	AC 220V
Voltage operation range	AC 50-450V
Umax setting	AC 230-300V
Umin setting	AC 120-210V
Rated operation current	25A,32A,40A,50A,63A
U> trip delay	0.5s
U< trip delay	0.1s
Measurement error	1%
Insulation voltage	4000V
Hysteresis	3%
Output contact	1NO
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
