| Prod Model: |
HP91116C 1-3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Elevation: |
< 1500 Meter |
| Storage Temperature: |
-25 °c~55° C |
| Current Crest Ratio: |
3: 1 |
| Frequency Regulation: |
50Hz/60Hz± 0.05Hz |
| Voltage Precision: |
220/230/240VAC(± 2%) |
| Power Factor: |
> 0.98 |
| Voltagerange: |
115-295VAC |
| Nominal Voltage: |
220/230/240VAC |
| Rated Frequency: |
50/60Hz |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

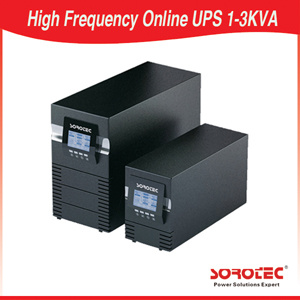

HP9116 Series 1k to 3k New Larger LCD Display Online UPS Specifications:1.Ture online UPS
2.High Frequency UPS
3.DSP control
4.Large LCD display Product Parameter:Model: 1-3KVA
Nominal voltage: 208/220/230/240VAC
Output Power factor: 0.7/0.8(Optional)
Nominal frequency: 50/60Hz Safe and reliable protection:High frequency online UPS HP9116C (1ph in/1ph out)1-3KVA series have a high stability and reliability which was designed by SORO company according to different power grid environment and network system requirements. Its excellent quality and perfect usability can provide a safe and reliable guarantee for the computer network system and realize overall protection to user devices. Key Features:1.Large blue backlight LCD for detailed real-time UPS status display.
2.Pure sine wave double conversion online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a harsh surroundings.
3.Comprehensive electric isolation and bypass protection.
4.Input PFC technology, reduce harmonic pollution to the power grid.
5.Automatic alarm; Self-testing function.
6.Wide Input frequency range can connect various fuel generator.
7.Adopt intelligent battery management, saving charging time and extend battery life.
8.DC start when power off, convenient and reliable; restart automatically when electricity is restored.Features:1.Large Blue Back Light LCD for Detailed Real-Time UPS Status Display
2.Microprocessor control guarantees high reliability
3.Comprehensive Self-Protection Design
4.Audible Alarm Mute
5.Cold Start Funcition
6.Auto Self-Testing System whileTurning on UPSTechnical Specifications of Pure Sine Wave UPS HP9116C| Model | HP9116C 1-3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Rated Power | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Input |
| Voltage Range | 115~295VAC (±3VAC) |
| Frequency Range | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage Regulation | 220/230/240X (1±2%)VAC |
| Frequency Regulation | 50/60 Hz±0.05Hz |
| Power Factor | 0.7/0.8 (Optional)Standard 0.7 |
| Voltage Distortion | Linear load<3% Non-linear load<6% |
| Overload Capability | 110%~150% for 30 sec;≥150% for 200ms |
| Current Crest Ratio | 3∶1 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 36VDC | 96VDC | 96VDC |
| Recharge Time | 5 hours to 90% of capacity after full load discharge |
| Recharge Current | 1A | 4A/8A (Optional) | 1A | 4A/8A (Optional) | 1A | 4A/8A (Optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP(Optional),USB (Optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <45dB | <50dB | <50dB |
| Physics Characteristic |
Weight
(KG) | N.W | 14 | 7 | 31 | 13.5 | 31.5 | 14 |
| G.W | 16 | 9 | 33 | 16 | 33.5 | 16.5 |
| Dimensions: Wx D x H )mm | 145X400X220 | 192X460X340 |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards. 1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
.......................................................................................................................................................................................................................................
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
.....................................................................................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................................................................................
