| Prod Model: |
HP9116C 1-3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Elevation: |
< 1500 Meter |
| Storage Temperature: |
-25 O C~55o C |
| Temperature: |
0~40o C |
| Frequency Precision: |
50Hz/60Hz± 0.05Hz |
| Voltage Precision: |
220/230/240VAC(± 2%) |
| Power Factor: |
> 0.98 |
| Frequencyrange: |
50Hz: (46~54Hz); 60Hz: (56Hz~64Hz) |
| Voltagerange: |
115-295VAC |
| Nominal Frequency: |
50/60 Hz |
| Nominal Voltage: |
220/230/240VAC |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

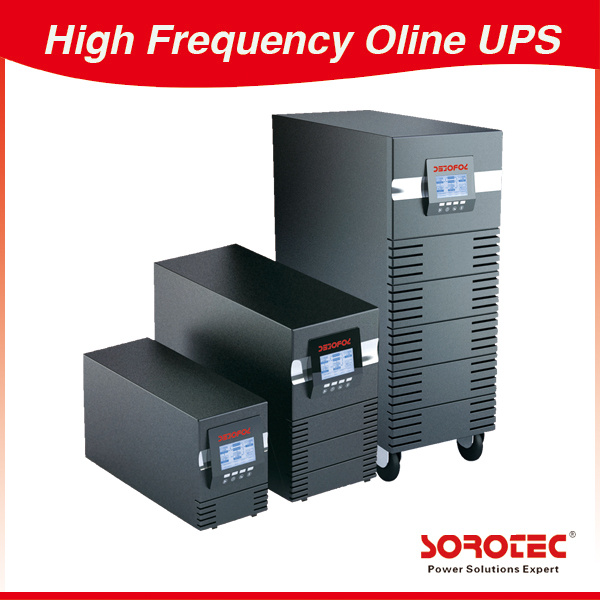

HP9116C Series High Frequency Online UPS
Specifications:
1.Ture online UPS
2.High Frequency UPS
3.DSP control
4.Large LCD display
Product Parameter:
Model: 1-3KVA
Nominal voltage: 208/220/230/240VAC
Output Power factor: 0.7/0.8(Optional)
Nominal frequency: 50/60Hz
Safe and reliable protection:
High frequency online UPS HP9116C (1ph in/1ph out)1-3KVA series have a high stability and reliability which was designed by SORO company according to different power grid environment and network system requirements. Its excellent quality and perfect usability can provide a safe and reliable guarantee for the computer network system and realize overall protection to user devices.
Key Features:
1.Large blue backlight LCD for detailed real-time UPS status display.
2.Pure sine wave double conversion online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a harsh surroundings.
3.Comprehensive electric isolation and bypass protection.
4.Input PFC technology, reduce harmonic pollution to the power grid.
5.Automatic alarm; Self-testing function.
6.Wide Input frequency range can connect various fuel generator.
7.Adopt intelligent battery management, saving charging time and extend battery life.
8.DC start when power off, convenient and reliable; restart automatically when electricity is restored.
Features:
1.Large Blue Back Light LCD for Detailed Real-Time UPS Status Display
2.Microprocessor control guarantees high reliability
3.Comprehensive Self-Protection Design
4.Audible Alarm Mute
5.Cold Start Funcition
6.Auto Self-Testing System whileTurning on UPS
Technical Specifications of Pure Sine Wave UPS HP9116C
| Model | HP9116 1--3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW |
| Nominal Voltage | 220/230/240VAC |
| Nominal Frequency | 50/60 Hz |
| Input |
| VoltageRange | 115-295VAC |
| FrequencyRange | 50HZ: (46~54HZ); 60HZ: (56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage precision | 220/230/240VAC(± 2%) |
| Frequency precision | 50Hz/60Hz± 0.05Hz |
| Power Factor | 0.7/0.8(Optional) standard 0.7 |
| Harmonic Distortion | Linear Load< 3% Non-Linear Load< 6% |
| Overload capacity | overload(110%~150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
| Current Crest Ratio | 3: 1 |
| Transfer time | 0ms(AC→ DC) |
| Battery |
| DC voltage | 36VDC | 96VDC | 96VDC |
| Recharge time | 5hours to 90% |
| Charge Current | 1A | 4A/8A (option) | 1A | 4A/8A(option) | 1A | 4A/8A(option) |
| Panel Display |
| LCD | UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records |
| Language | English, French, German, Russian, Spanish |
| Communicate |
| Communicate interface | Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port) |
| Working Environment |
| Temperature | 0~40º C |
| Relative humidity | 0~95% non-condensing |
| Storage Temperature | -25 º C~55º C |
| Elevation | < 1500 meter |
| Noise Level( 1meter) | < 45dB | < 50dB | < 50dB |
| Physics Characteristic |
weight (kg) | N.W | 14 | 7 | 31 | 13.5 | 31.5 | 14 |
| G.W | 16 | 9 | 33 | 16 | 33.5 | 16.5 |
| Dimensions: (WxDxH)mm | 145x400x220 | 192x460x340 |
