Hr10 Series Straight Fixed Receptacle Connector 4 Pin Femal Industrial Circular Connector

Name: Hr10 Series Straight Fixed Receptacle Connector 4 Pin Femal Industrial Circular Connector
Brand: all-electronics-online.com
SKU: 813012485
Availability: InStock
Rating: 5 (54 reviews)

Price:	US $ 5.87-5.89/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM-HR10-7R-4S
Certificates:	Ce, RoHS, SGS, ISO9001:2008
IP Ranking:	IP50
Contact Type:	Solder Contact
Contacts No.:	4,6,7
Cable Assembly Or Not:	Yes
Locking Style:	Push -Pull Self Locking
MOQ:	5 PCS
Delivery:	5~7 Working Days

Product Description

Part No: RM-HR10-7R-4S
RAYMO HR10 Series Straight Fixed Receptacle Connector 4 Pin femal Industrial Circular Connector
Specifications

Shell Style/Mode : Straight receptacle
Number of contact: 4 pins
Contact plating: Gold
Contact Gender: Female
Housing Material : Metal
Wire Termination Method : SOLDERING
Locking style: push-pull
Max. Matings :1000
Variant : Nut for fitting a bend relief
Recommended Wire Size (AWG) : AWG 26

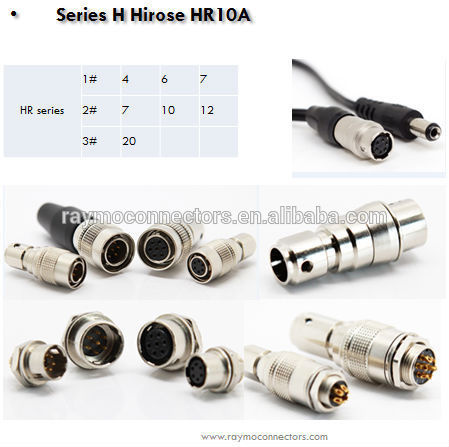

Product Size & Contacts

Series	Shell size	Contacts no. With Solder & PCB type
HR10	1#	4	6	7

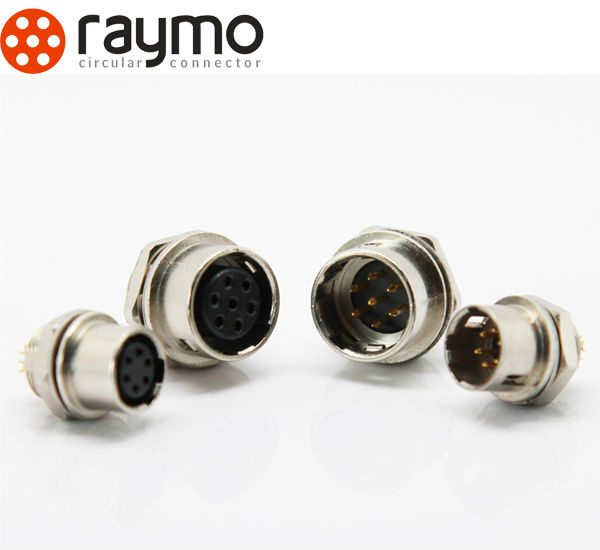

Products Photo Details

Main features

Security of the push-pull self-latching system;
Multipole types with 4 to 12 pins contacts
Solder or PCB contacts(straight or elbow);
High-density installation for space-saving ;
Multiple key options to avoid cross mating of similar connectors;
Made of bronze beryllium and have a gold-plated surface;
Have metal shells which have a nickel-plated surface.

Technical Characteristics

Endurance(shell) : 1000 mating cycles
Operating Temperature range : - 25° C, +85° C
Rated current : 2A
Rated Voltage (AC) AC 100V
Rated Voltage (DC) DC 140V
Withstanding Voltage : 300V max

Our Company
RAYMO is a SGS audited manufacture that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • ODUS • HIROSES • BINDERS and Military 38999
• Series has F, B, K, S, L, T, P, HR10A, M4, M8, M12, M16, , BNC, 680, 423 , 38999, 26482
• CO, Form A, Form E
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating

RAYMO EXBITIONS

FAQ
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.

2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample :
RAYMO:  Available. Any needs, please contact us:

4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.

5.What is your payment terms?
Raymo: 100% T/T  deposit when customer place order.

6. Does your product have any warranty?
Raymo:  Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

RAYMO professionally specializes in manufacturing and exporting various precision connectors and cable assembly for many years.

With the professional R&D and excellent craftmanship, we can offer customer exact high quality and nice appearance products, that

Widely have been used in Medical equiments, Industrial applications, Telecommunications, Aviation, Audio-video,

Petroleum, and other industries, , , etc.

Based on the philsophy of Quality First and Competitive price, Raymo focuse on every technological design and processess, we have already established

Good reputation among customers.

What is more, Raymo can do OEM design, and help customer's idea to come into truth.

Raymo as a team, customer's suggestion will be highly appreciated. Samely, we will give you better professional suggestion as we did before.

We have the capacity to meet market demand and are ready to become a better professional manufacture in connector field.
