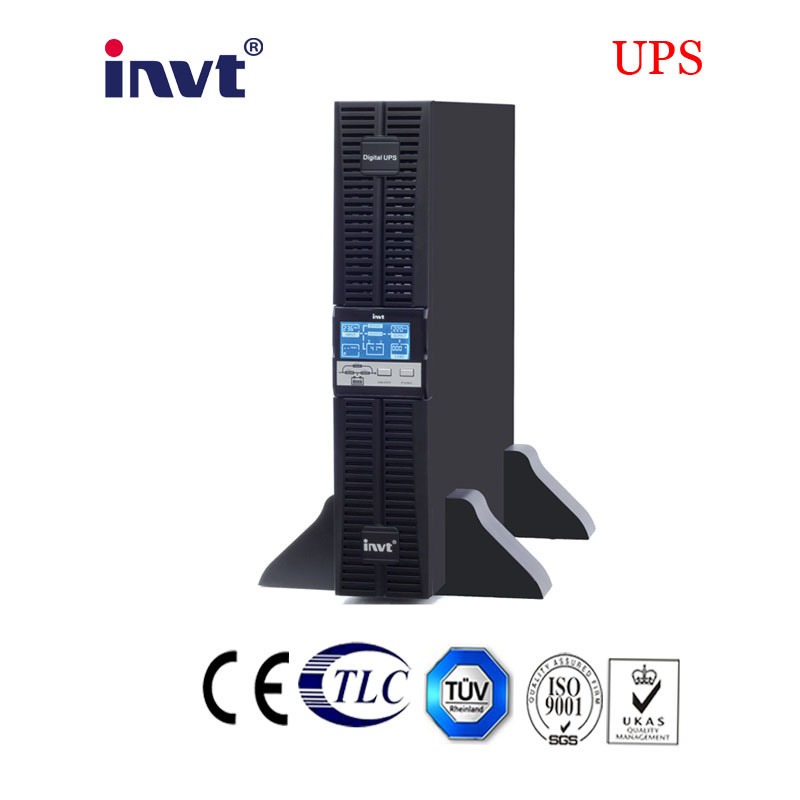

Hrl11 Series Rack Online UPS

Name: Hrl11 Series Rack Online UPS
Brand: all-electronics-online.com
SKU: 732211132
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	HRL
Capacity:	800va
Input Voltage Range:	55VAC-155VAC
Input Frequency:	40-70Hz
Input PF:	1
Voltage Regulation:	±1 %
Output Frequency:	50/60Hz
Output PF:	0.9
Crest Factor:	3
Display:	LED+LCD
Certification:	Ce ISO9001 ISO14001 ISO18001
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Application:	Computer
Classification:	Backup
Output Capacity:	0.8-6kVA
Brand:	Invt

Product Description

Wide range of input voltage while input PF≥97%
Output PF of 0.9
Full protection of overvoltage, short-circuit and over temperature
LCD/LED display, monitoring all the operation status
19" standard cabinet and battery cabinet
Automatic fan speed adjustment
Abundant interface:RS232, USB, SNMP, Intelligent Card

MODEL	HRL110800S	HRL111500S	HRL112000S	HRL114000S	HRL116000S
	HRL110800L	HRL111500L	HRL112000L	HRL114000L	HRL116000L
Capacity	800VA	1500VA	2000VA	4000VA	6000VA
Input voltage range	55VAC-155VAC
	100% load@>96VAC; 80% load@>85VAC 70% load@>70VAC; 50% load@>55VAC
Input frequency	40-70Hz
Input PF	≥0.97			≥0.99
Voltage regulation	±1 %
Output frequency	50/60Hz
Output PF	0.9			0.8
Overload capability (Inverter mode)	105%-130%: to bypass 1 min; 150%: to bypass after 30 s			110%: to bypass after 10 min; 130%: to bypass after 1 min; 150%: to bypass after 30 s, shutdown after 1 min
Overload capability (Battery mode)	105%-130%: shutdown after 10 s; 150%: shutdown after 5 s			110%: shutdown after 10 min; 125%: shutdown after 10 s; >125%: shutdown after 1 s
Crest factor	3:1
Efficiency	87%	91%	90%	90%
Display	LED+LCD
Battery voltage	36VDC	72VDC	72VDC	192VDC
Battery type/number	12V,7Ah*3	12V,7Ah*6	12V,7Ah*6	12V,7Ah*16	12V,9Ah*16
	External
Interface	Standard: RS232, EPO
	Optional: USB, SNMP, Dry contacts			Optional: USB, SNMP, Dry contacts, Battery cabinet, ECO Kit
Operation temperature	0-40ºC
Relative humidity	0-95% (non-condensing)
WDH (mm)	44043086	440480173	440480173	438680218	438680218
	44043086	44048086	44048086	438680130	438680130
Weight (kg)	11.5	25	29	62	70.5
	7	8	9.5	18.5	21.5

HRL11 series is online double-conversion UPS with fully DSP controlled technology. With 19" standard rack design, self-adjusting output frequency and network management, HRL11 is a perfect choice for computers, IT equipments and other sensitive devices.

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
