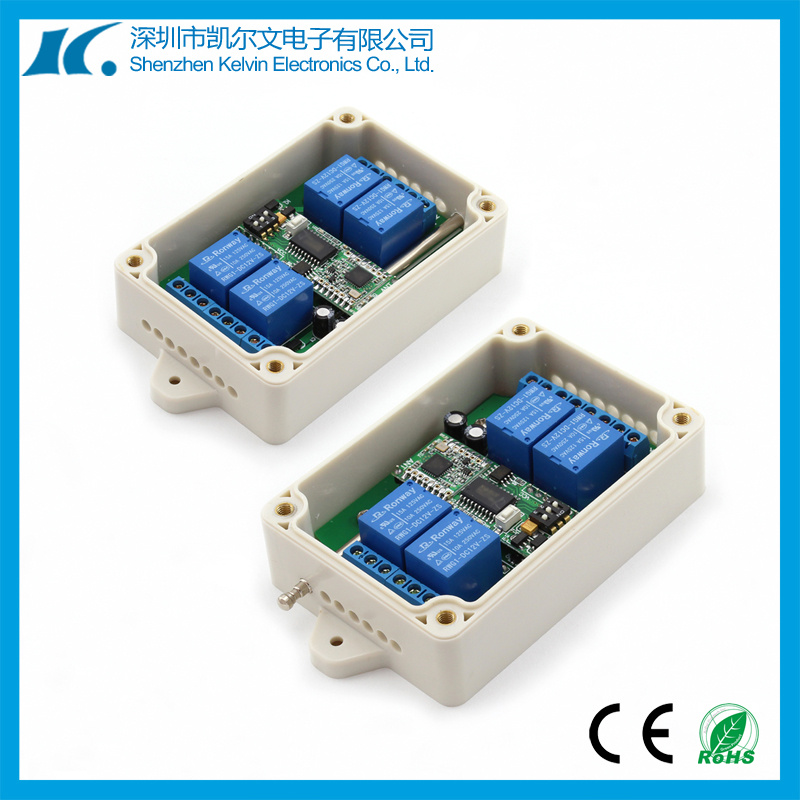

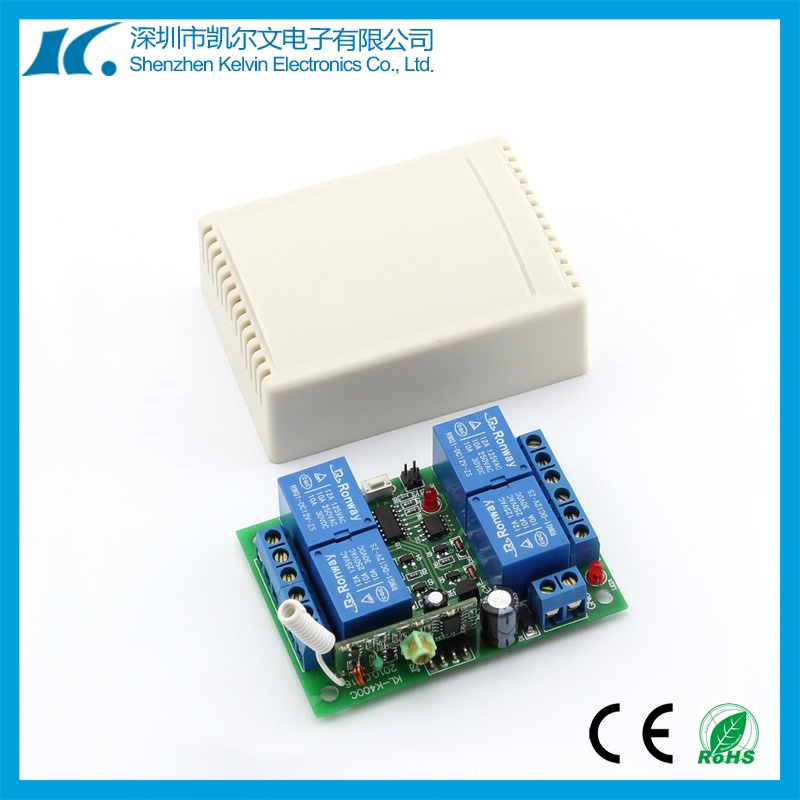

HS1527 Universal Wireless RF Remote Controller Kl-K400c
| Price: |
US $ 4-4.5/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Kl-K400c |
| Channel: |
4 |
| Operating Voltage: |
DC12V Customized 6V, 9V, 24V |
| Static Current: |
5mA |
| Maximum Current: |
5A |
| Operating Frequency: |
315/433.92MHz / Customized |
| Modulation Way: |
Ask/Ook |
| Receiver Sensitivity: |
-103dBm |
| Encoding Type: |
Learning Code EV1527 |
| Work Mode: |
Momentary, Latched, Toggle |
| Dimension: |
80*50*15mm |
| Application: |
Special Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
Product Description
HS1527 Universal Wireless RF Remote Controller Kl-K400c1.Tech Data:DC 12V 4-Channel Remote Control Switch KL-K400C| Input | DC 12V (DC9V, 24V can be customized) |
| Channels | 4 |
| Working Current | 8mA |
| Working Frequency | 433MHz / 315MHz, Optional |
| Receiving Sensitivity | -103dBm |
| Decoding Type | Leaning Code(EV1527) / Fixed Code(PT2262) |
| Working Mode | Momentary / Toggle / Latching |
| Output | Switching Signal (Dry Contact) |
| Max Load | 7A (Relay Contact) |
| Dimension | 49*69*20mm |

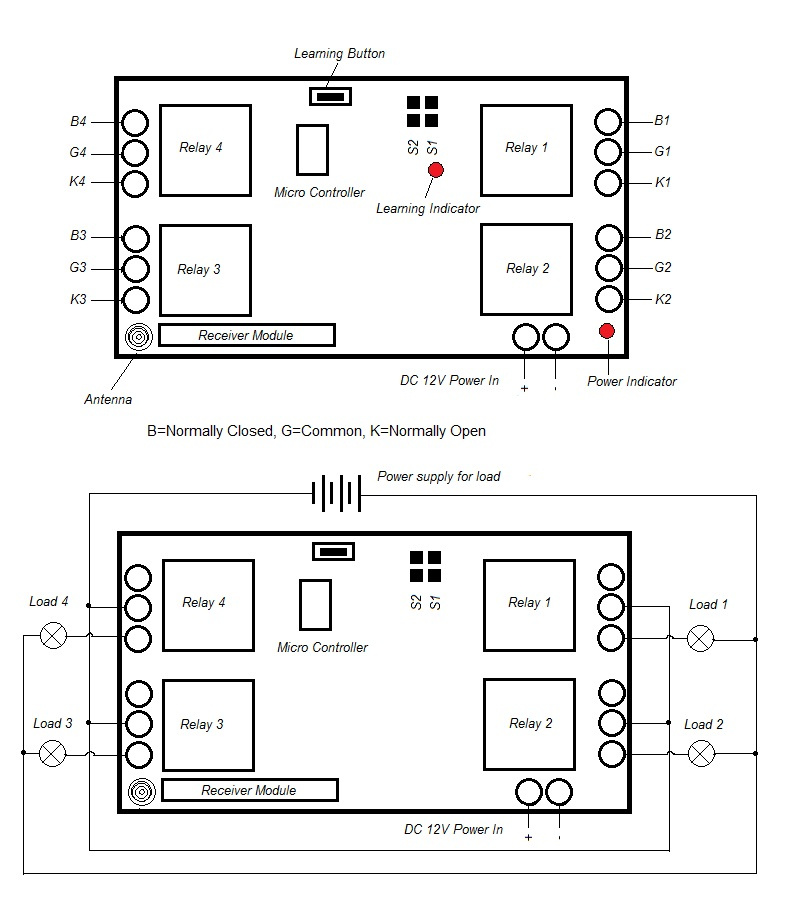

2.Working Mode:1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.
3.Shipping1) Express: DHL, FedEx, UPS, TNT, EMS
2) By air
3) By sea
4) By special line
Depends on buyer's requirement
4.FAQ1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned (some are 2 years)
For DOA (defective on arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and packing as further checking maybe required, faulty items must be returned for repair or exchange
2) If i don't know how to use the products, what can i do?
Please contact us whenever you need our help, even we are not online
You can write email to us, or contact us by Trademanager, Skype, and other IM tools
We are all very glad to answer your questions
3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC
If you have any other requirements with certifications, we also would like to help you
5.Our companyShenzhen Kelvin Electronics company limited is a professional manufacturer of security products with obtaining ISO9001:2000 quality system approval, CE approval and RoHS Directive-compliant certification
Our products mainly include smoke detectors, door sensors, home alarm systems, panic buttons, wireless remote controls (or switches), wireless transceiver modules.
Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.
Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.
Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established
Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB
Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Prospects for development: Bright future is coming
