HSB 12pins 35A High Current Heavy Duty Connector Inserts

HSB 12pins 35A High Current Heavy Duty Connector Inserts
Price: US $ 7.9-8.8/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: UTL-HSB-012-F/M
Contact Number: 12pins+PE
Current: 35A
Voltage: 400V
Type: Socket Terminals
Material: Silver-Plated Copper
Application: Waterproofing Heavy-Duty Application
Certification: Ce,CQC, RoHS
Brand: Utl

Product Description

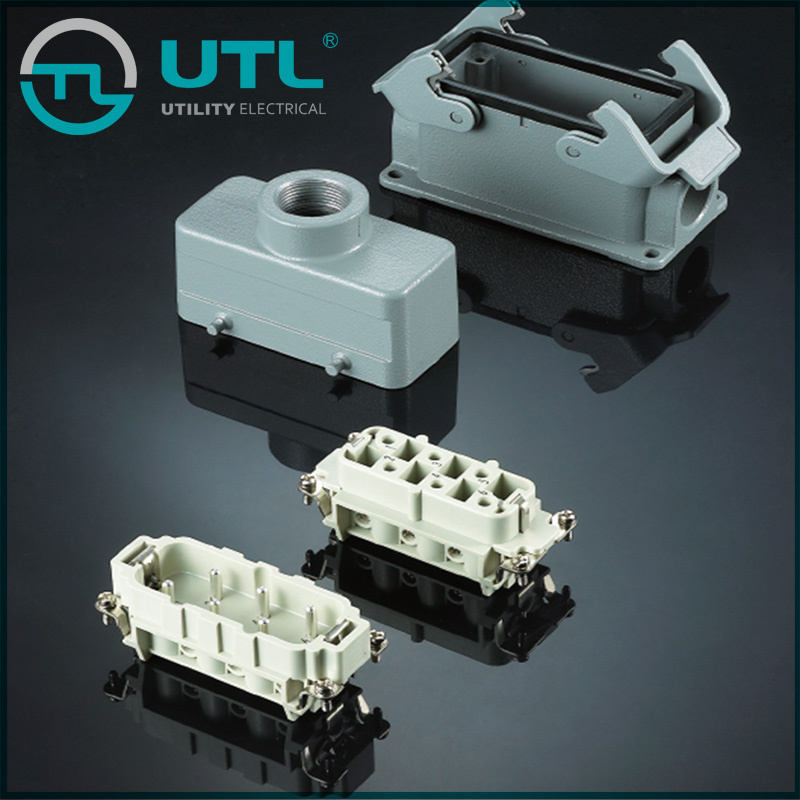

UTL- Waterproofing Heavy-duty Male-Female Connector

HSB series- High-Current Male-Female Inserts

UTL-HK-012-F/M
1. 12pins+PE
2. 35A/400V
3. 6mm2(AWG10)

Product Description:

Heavy duty connectors are specifically designed for applications in extremely rough environments. Their modular design makes the distribution of power and signals simple.

HSB series is designed for undertake high current up to 35A. The number of contact includes 6 or 12pins.

Parameters:
Product Co.UTL-HSB-012-F/M
Product descriptionMale/ Female plugable Insert
Number of contacts12+PE

Electrical
Rated Current35A
Rated Voltage400V
Rated Impulse Voltage6KV
Pollution degree3
Wire range6mm² (AWG10)
Tightening Torque1.2Nm
Stripping length7.5mm

Working temperatures-40ºC to +125ºC
Flammability UL94- V-0
Material
Housing materialPolycarbonate
Contact materialCopper Alloy(hard-silver plated)
Contact resistance≤1mΩ
ColorGrey-white
CertificationCE,CQC

For more infomation and product spec, please feel free to contact me. UTL is a professional manufacturer with 30-year experience in providing wiring solution in premium quality and affordable price.

OEM/ODM/Custom product can be made upon request!

Thank you and looking forward to hearing from you soon,

with Kind Regards,

Dennis Lee

International Sales & Consultant

Utility Electrical Co., Ltd (UTL)

www.utl-de.com
www.china-utl.com
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
