HSC-100 Single Output Switching Power Supply 100W 12VDC, 24VDC, 48VDC
| Price: |
US $ 12.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HSC-100 |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
85~264 VAC |
| Brand: |
Dhecn |
Product Description

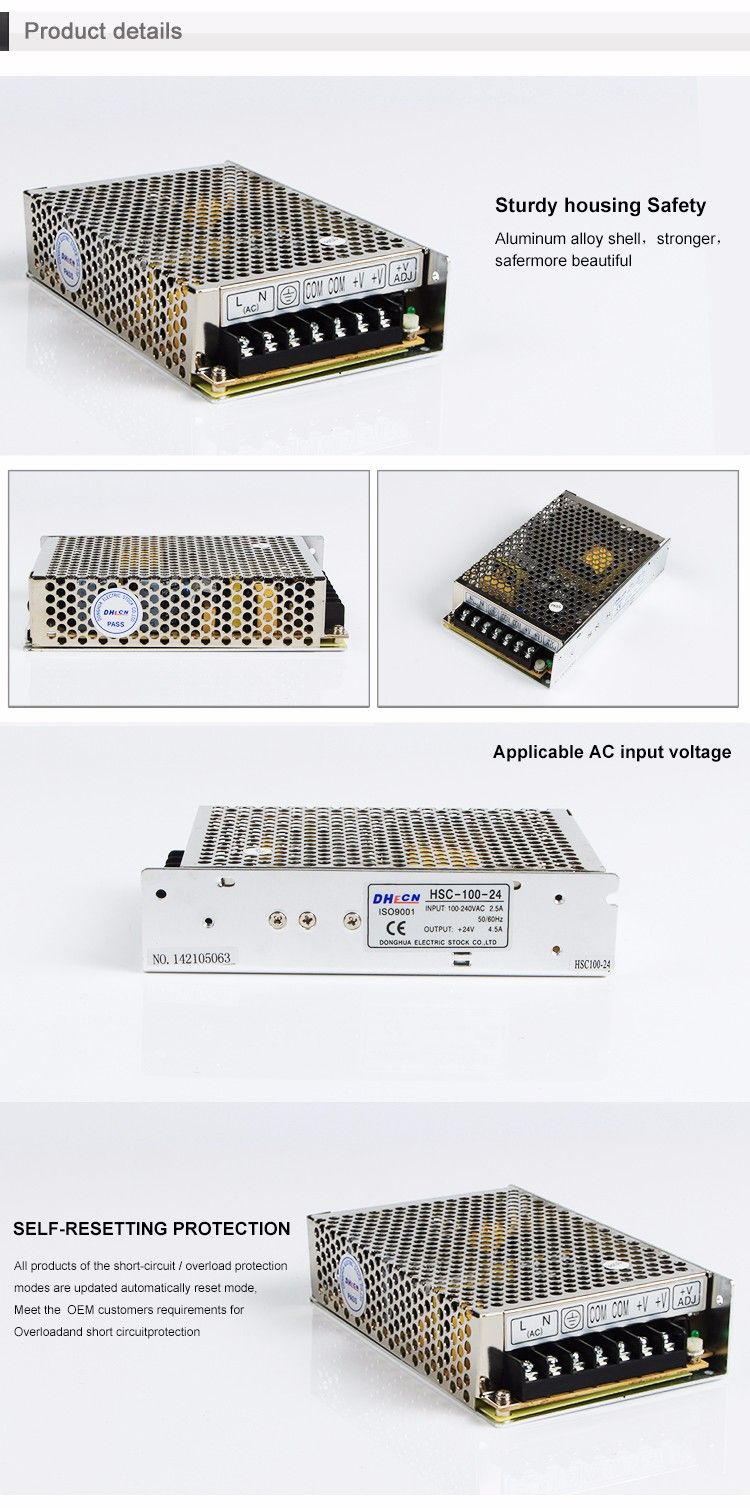

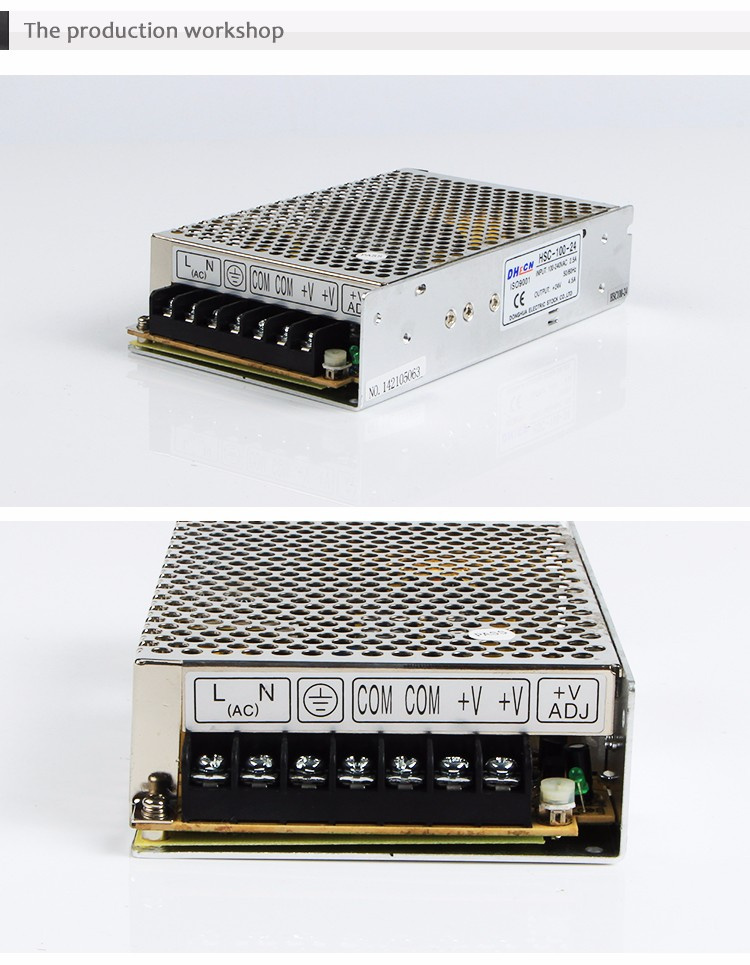

HSC-100 Single output switching power supply 100W

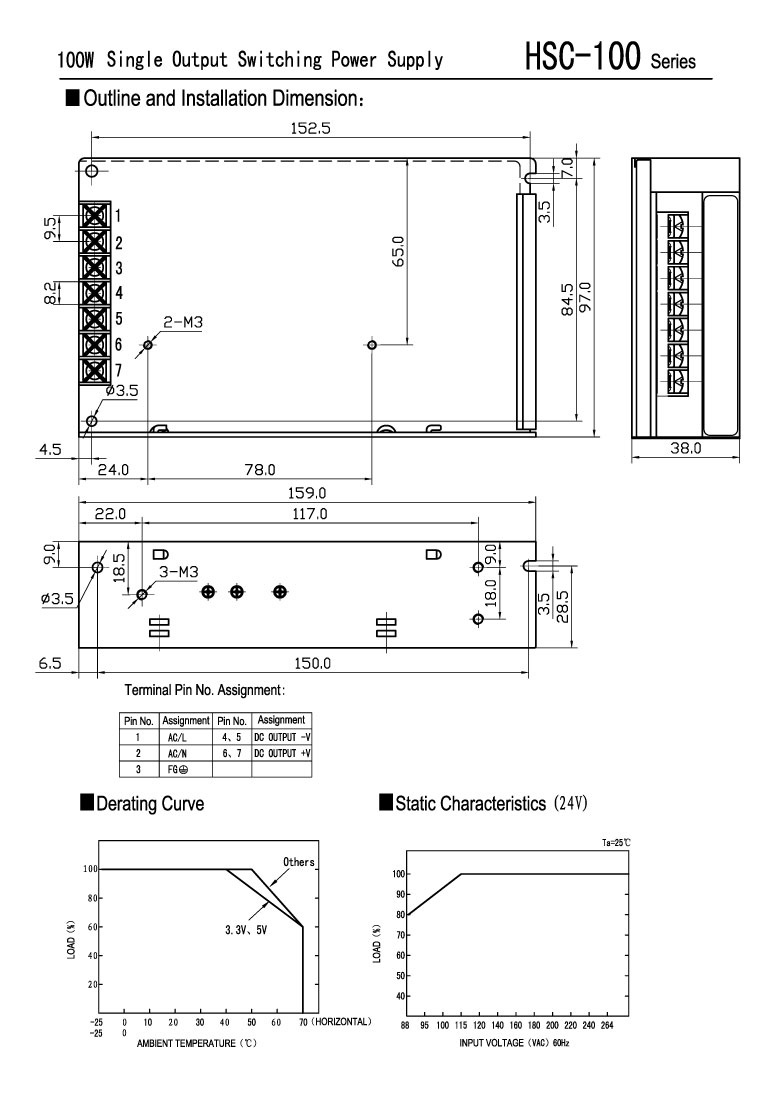

Full AC range input from 88 to 264VFeatures:·Universal AC input/full range·Protections:Short circuit/Over load/Over voltage·Cooling By free air convection·LED indicator for power on·100% full load burn-in test·All using 105ºC long life electrolytic capacitors·Withstand 300VAC surge input for 5 second·High operating temperature up to 70ºC ·Withstand 5G ·vibration test ·High efficiency,long life and high reliability·1 year warranty ·Dimension: 159*97*38mm (L*W*H)MODEL | HSC-100-3.3 | HSC-100-5 | HSC-100-12 | HSC-100-15 | HSC-100-24 | HSC-100-48 |
OUTPUT | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V |
Rated Current | 20A | 16A | 8.5A | 7A | 4.5A | 2.3A |
Current Range | 0~20A | 0~16A | 0-8.5A | 0-7A | 0-4.5A | 0-2.3A |
Voltage Tolerance | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±2.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Rated Power | 66W | 80W | 102W | 105W | 108W | 110.4W |
Ripple & Noise | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p |
DC Adjustment Range | 3.2V~3.5V | 4.75~5.5V | 11.4 ~ 13.2V | 14.25~ 16.5V | 22.8-26.4V | 45.6 ~ 52.8V |
Setup, Rise Time | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load |
Hold Time | 100ms/230VAC 18ms/115VAC at full load |
INPUT | Voltage Range | 88 ~ 264VAC125 ~ 373VDC (Withstand 300VAC surge for 5sec,Without damage) |
Frequency | 47~63Hz |
Efficiency | 74% | 77% | 81% | 82% | 84% | 84% |
AC Current | 2.5A/115VAC 1.5A/230VAC |
Inrush Current | Cold start 40A/230VAC |
Leakage Current | <2mA / 240VAC |
PROTECTION | Over Load | 110 ~ 150% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
Over voltage | 3.8~4.45V | 5.75~6.75V | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V | 55.2~64.8V |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
ENVIRONMENT | Working Temp., Humidity | -25~+70ºC, 20 ~ 90% RH |
Storage Temp., Humidity | -40 ~ +85ºC , 10 ~ 95% RH |
Vibration | 10 ~ 500Hz, 5G 10min./ 1cycle, period for 60min, each along X, Y, Z axes |
SAFETY | Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
STANDARD | Safety Standard | Design refer to UL60950-1,TUV EN60950-1 |
EMC Standard | Design refer to EN55022 CLASS B,EN61000-3-2,-3;EN61000-4-2,3,4,5,6,8,11;ENV50204,EN61000-6-2(EN50082-2) |
OTHERS | Weight | 0.6Kg |
Packing | 30pcs/18.5Kg/0.99CUFT |
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation
3.Line Regulation is measured from low line to high line at rate load.
4.Load Stability is measured from 0% to 100% rated load.
5. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
6.The power supply is considered a component which will be installed into a final equipment. The final equipment must
be re-confirmed that it still meets EMC directives.
7. Length of set up time is measured at cold first start, turning on-off the power supply very quickly may lead to increase of the set up time. |

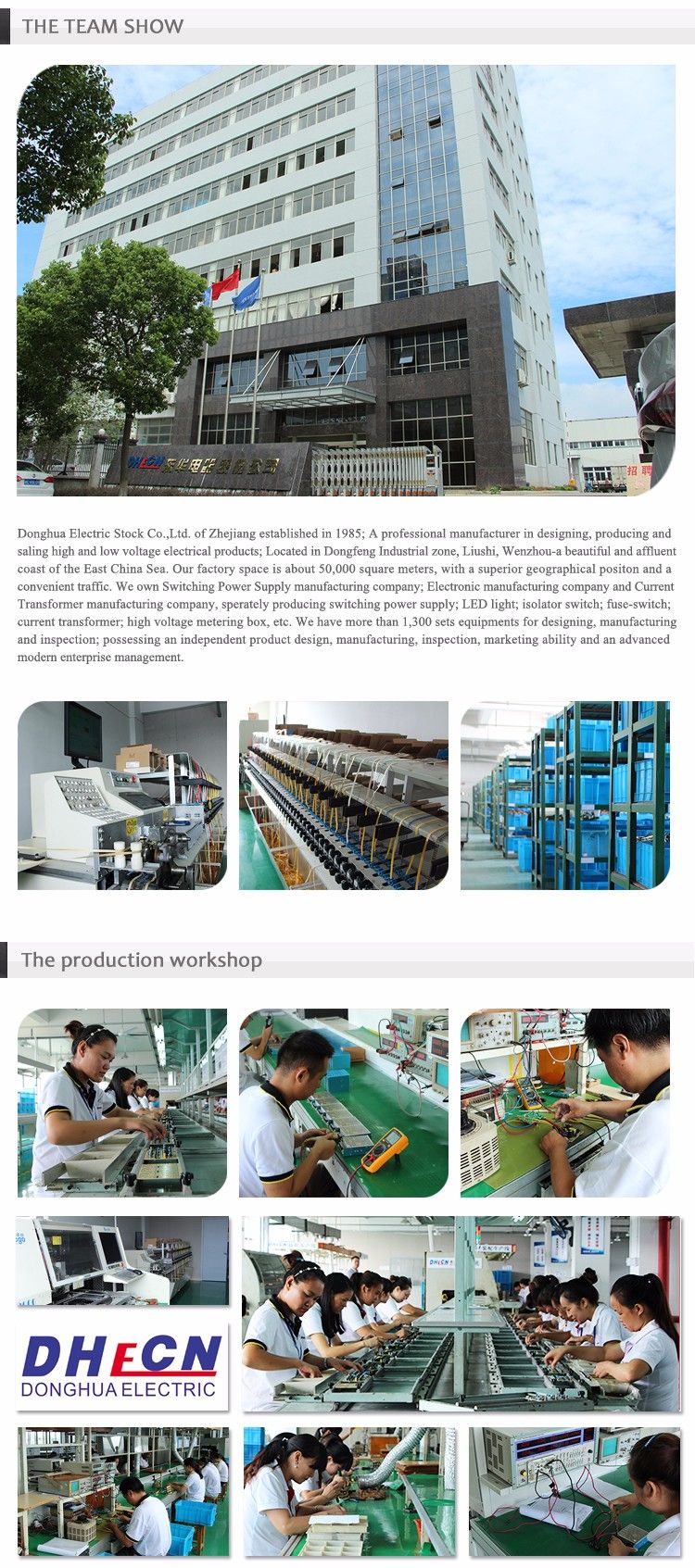

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.
To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.
Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.
Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
