HSC-150 Single Output Switching Power Supply 150W, 12VDC, 15VDC, 24VDC, 48VDC

Name: HSC-150 Single Output Switching Power Supply 150W, 12VDC, 15VDC, 24VDC, 48VDC
Brand: all-electronics-online.com
SKU: 806109025
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 16.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSC-150
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	150W
Input Voltage:	85~264 VAC
Brand:	Dhecn

Product Description

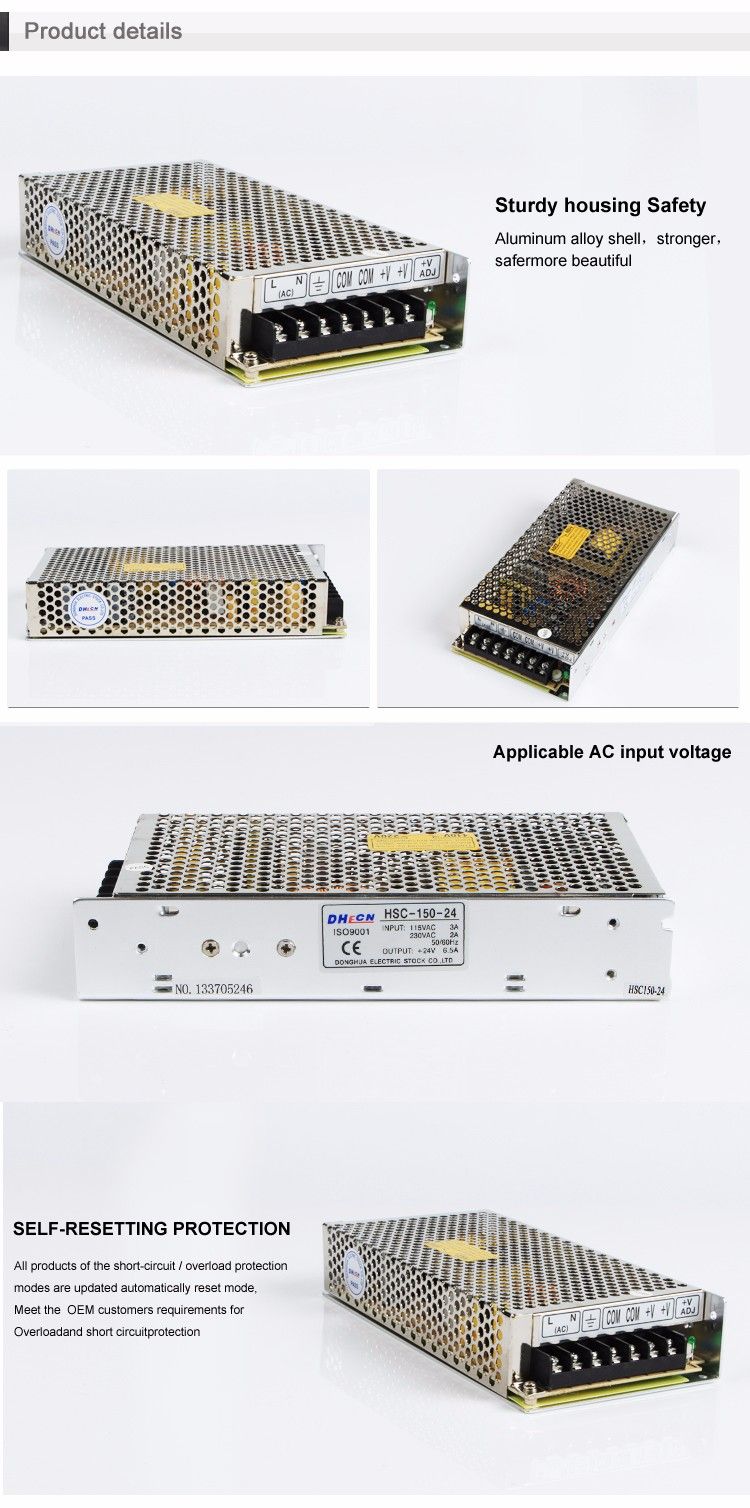

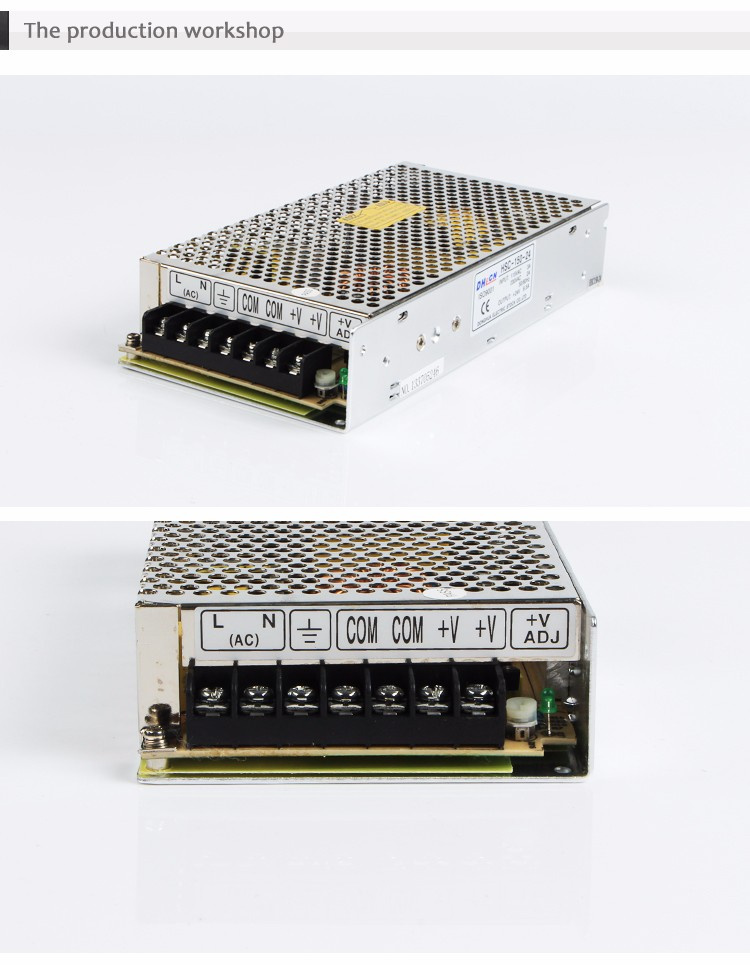

HSC-150 Single output switching power supply 150W
INPUT: 88 ~ 132VAC /176~264VAC selected by switch, 248 ~ 373VDC
Features:
Little volume,High Efficiency, long life,,high reliability,
Protections:Short circuit/Over load/Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at100KHZ
1 year warranty

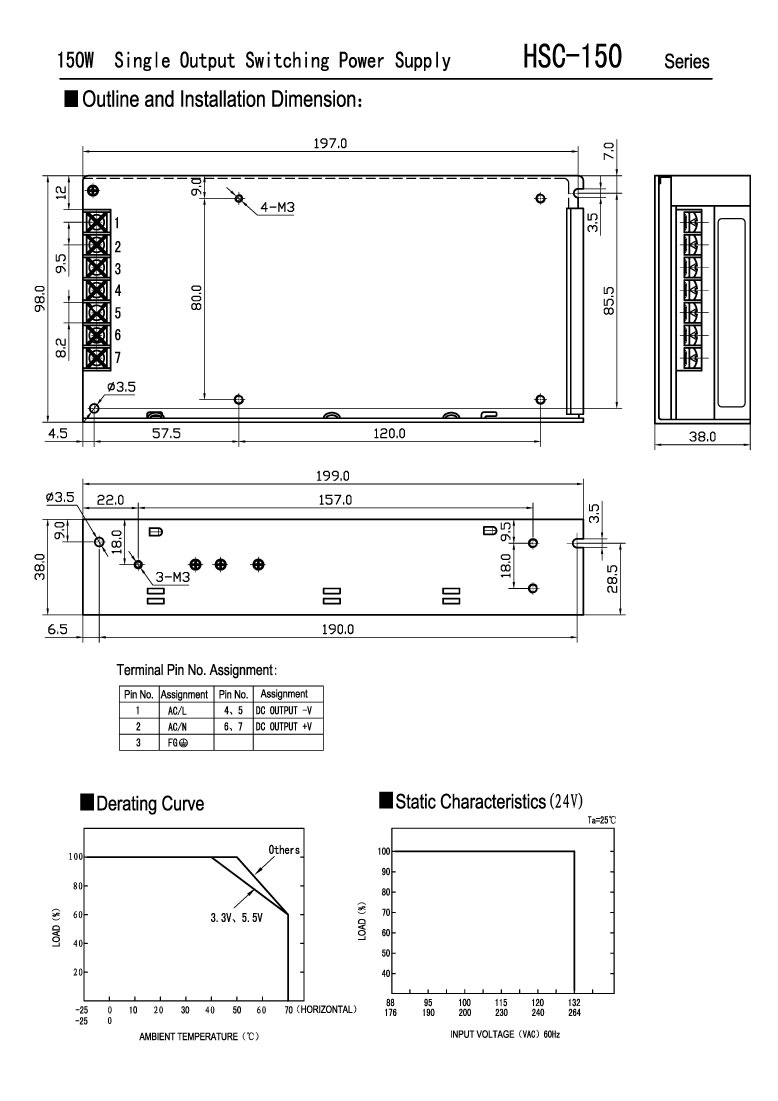

Dimensions: 199*98*38mm (L*W*H)

MODEL		HSC-150-3.3	HSC-150-5	HSC-150-12	HSC-150-15	HSC-150-24	HSC-150-48
OUTPUT	DC Voltage	3.3V	5V	12V	15V	24V	48V
	Rated Current	30A	26A	12.5A	10A	6.5A	3.3A
	Current Range	0-30A	0-26A	0-12.5A	0-10A	0-6.5A	0-3.3A
	Voltage Tolerance	±3.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Stability	±2.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
	Rated Power	99W	130W	150W	150W	156W	158.4W
	Ripple & Noise	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p
	DC Adjustment Range	3.1 ~ 3.6V	4.75 ~ 6.75V	10.8 ~ 13.2V	13.5~ 16.5V	21.6-26.4V	42 ~ 52.8V
	Setup, Rise Time	800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
	Hold Time	28ms/230VAC 20ms/115VAC at full load
INPUT	Voltage Range	88 ~ 132VAC /176~264VAC selected by switch, 248 ~ 373VDC
	Frequency	47~63Hz
	Efficiency	74%	78%	83%	84%	86%	87%
	AC Current	3A/115VAC 2A/230VAC
	Inrush Current	Cold start 40A/230VAC
	Leakage Current	<2mA / 240VAC
PROTECTION	Over Load	110 ~ 160%
	Over Load	Protection: Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	3.8~ 4.45V	5.75~6.75V	13.8~16.2V	17.25~20.25V	27.6~32.4V	55.2~64.8V
	Over voltage	Protection: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	Working Temp., Humidity	-25~+70ºC,20 ~ 90% RH
	Storage Temp., Humidity	-40 ~ +85ºC , 10 ~ 95% RH
	Vibration	10 ~ 500Hz, 5G 10min./ 1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
SAFETY	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL
STANDARD	EMC Standard	Design refer to EN55022 CLASSA
OTHERS	Weight	0.7Kg
OTHERS	Packing	30pcs/21.5Kg/1.22CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation.
