HSC-25 Single Output Power Supply 25W Input AC 88 to 264VAC Output 5V, 12V, 15V, 24V, 48V

Name: HSC-25 Single Output Power Supply 25W Input AC 88 to 264VAC Output 5V, 12V, 15V, 24V, 48V
Brand: all-electronics-online.com
SKU: 806103695
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	US $ 5.38-5.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSC-25
5VDC:	4A
12VDC:	2.1A
24VDC:	1.1A
48VDC:	0.55A
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	85~264 VAC
Brand:	Dhecn

Product Description

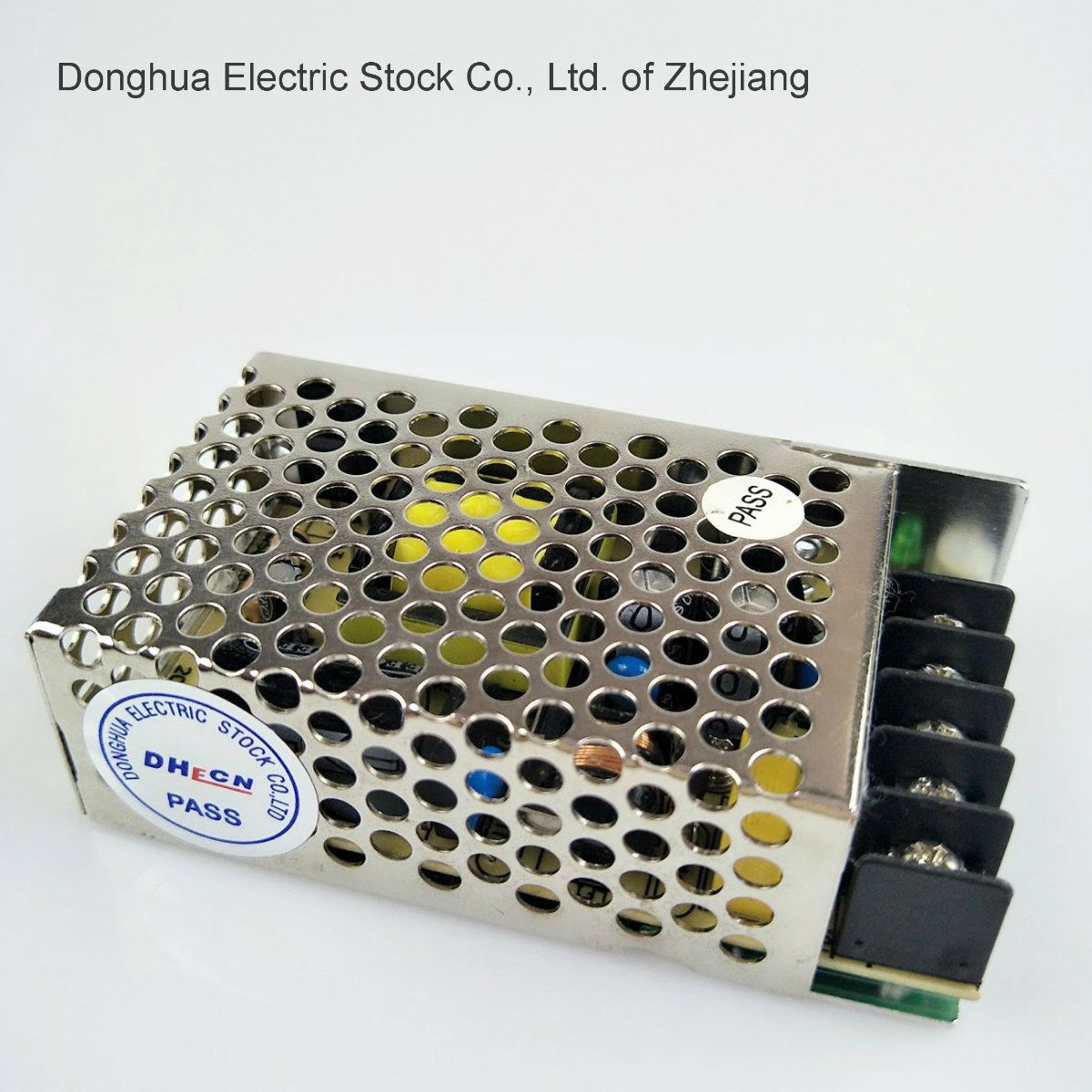

HSC-25 Single output power supply 25W
input AC 88 to 264VAC output 5V,12V,15V,24V,48V
Features:
High effectiency,High reliability, small size
Protections: Short circuit/Over load
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 year warranty

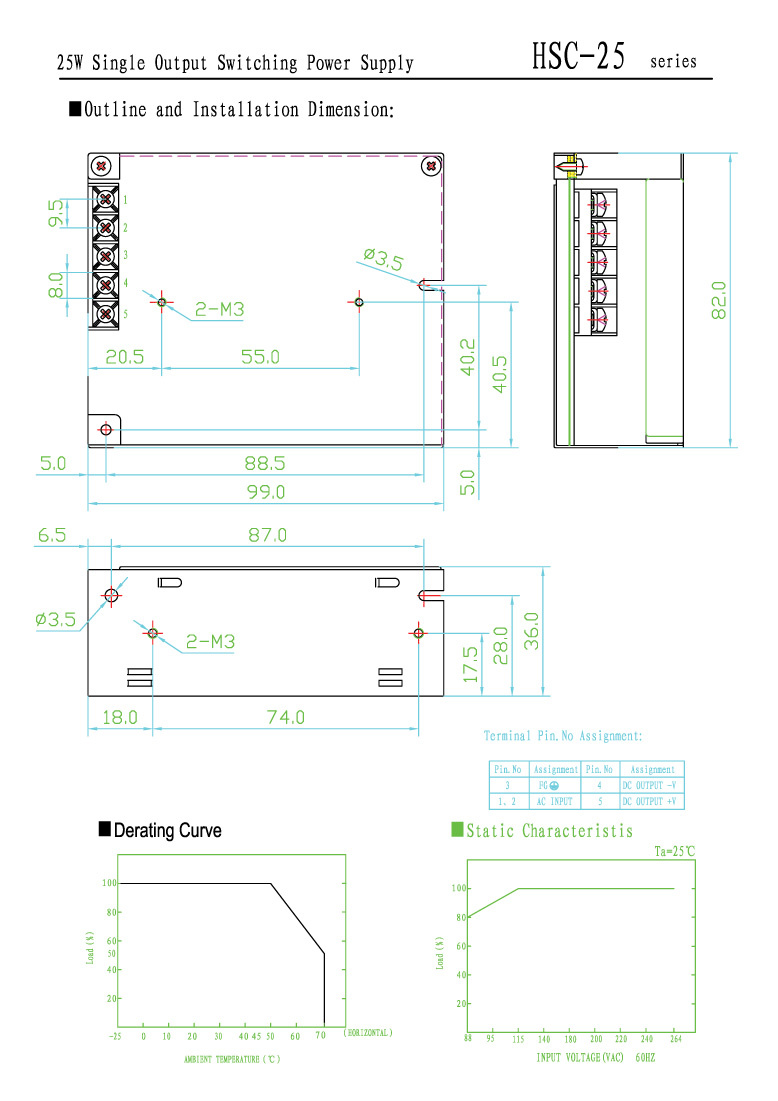

Dimensions:99*82*36mm(L*W*H)

MODEL		HSC-25-3.3	HSC-25-5	HSC-25-12	HSC-25-15	HSC-25-24	HSC-25-48
OUTPUT	DC VOLTAGE	3.3V	5V	12V	15V	24V	48V
	VOLTAGE TOLERANCE	±3%	±2%	±1%	±1%	±1%	±1%
	LOAD REGULATION	±2%	±1%	±0.5%	±0.5%	±0.5%	±0.5%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	RATED CURRENT	5A	5A	2.1A	1.7A	1.1A	0.55A
	CURRENT RANGE	0-5A	0-5A	0-2.1A	0-1.7A	0-1.1A	0-0.55A
	RATED POWER	16.5W	25W	25.2W	25.5W	26.4W	26.4W
	Ripple & Noise	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	Voltage adj.range	2.9-3.6V	4.5-5.5V	10.8-13.2V	13.5-16.5V	22-26.4V	42-52.8V
	Setup, Rise, Hold time	500ms,30ms,80ms /230VAC 1200ms,30ms,15ms /115VAC at full load
INPUT	VOLTAGE RANGE	AC 88~264VAC DC 125~370VDC
	AC CURRENT	0.55A/ 230 V 0.8A/115V
	Efficiency	73%	77%	81%	83%	84%	84%
	INRUSH CURRENT	Cold start current 36A/230VAC
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVER LOAD	110%~150%
	OVER LOAD	Protection:Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	3.8-4.45V	5.75-6.75V	13.8-16.2V	17.25-20.25V	27.6-32.4V	55.2-64.8V
	Over Voltage	Protection:Hiccup mode,recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.HUMIDITY	-25ºC~+70ºC; 20%~90 %RH refer to the output derating curves
	STORAGE TEMP.HUMIDITY	-40ºC~+85ºC; 10%~95 %RH
	VIBRATION	10~500Hz,5G 10min./1cycle,period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standards	SAFETY STANDARDS	EN60950-1
Standards	EMC Standard	EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2
OTHERS	Weight	0.23Kg
OTHERS	PACKING	60pcs/14.5Kg/1.13CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor. 3.Tolerance: includes set up tolerance, voltage regulation and current regulation

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
