HSC-35-5 Input 90-264VAC to Output 5VDC 6A Switch Power Supply High Quality with Ce RoHS ERP ISO9001
| Price: |
US $ 5.92-6.41/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HSC-35-5 |
| Output Voltage: |
5V 6A |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
85~264 VAC |
| Brand: |
Dhecn |
Product Description

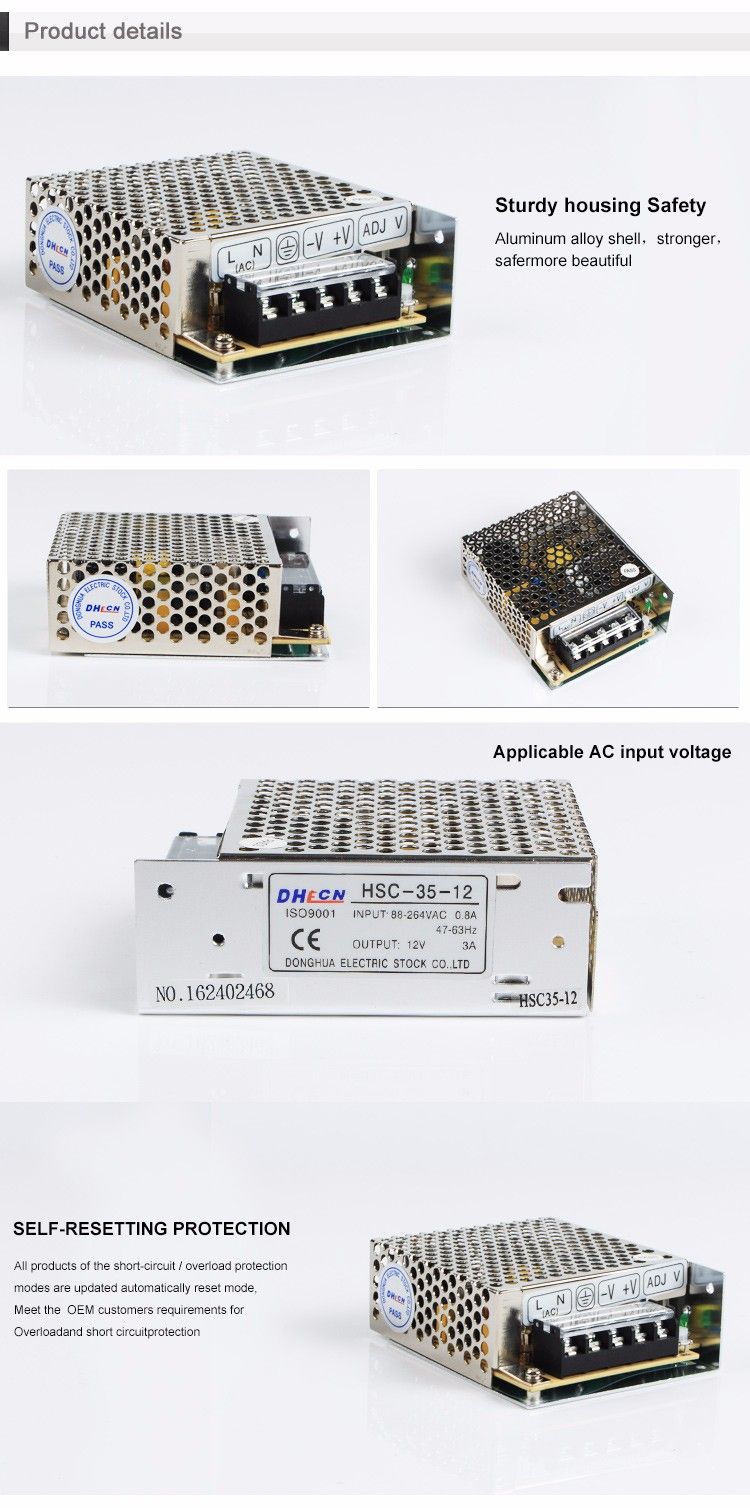

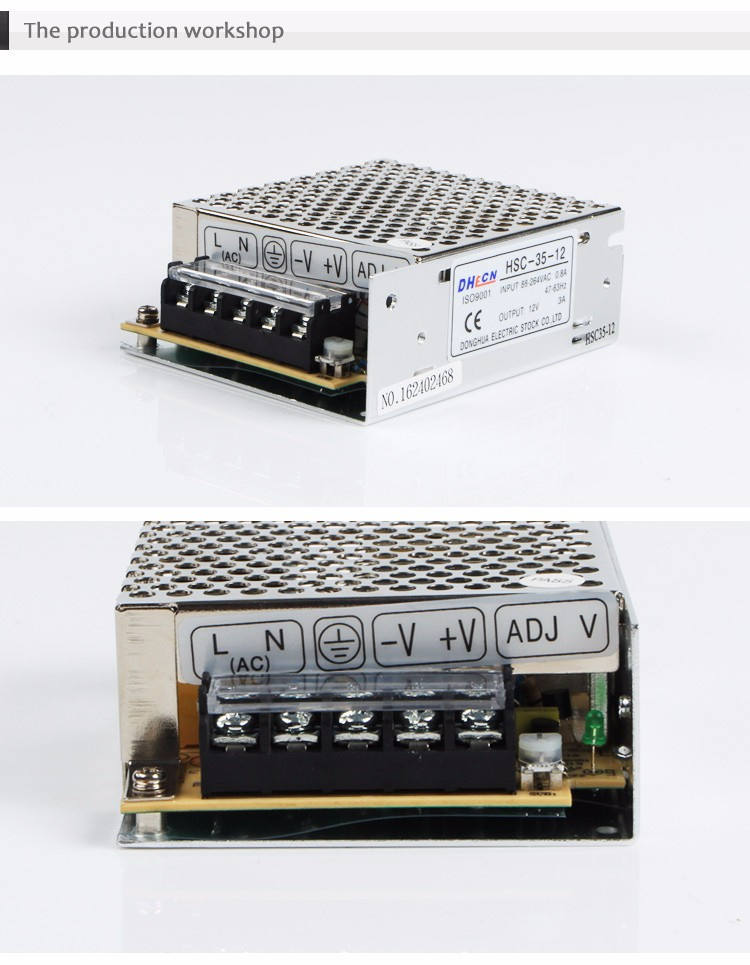

HSC-35 Single output switching power supply full range AC input from 88 to 264V Features: Little volume,high efficiency,long life and high reliability Universal AC input/full range Protections:Short circuit/Over load/Over voltage Cooling By free air convection LED indicator for power on 100% full load burn-in test 2 year warranty Dimension: 99*82*36mm(L*W*H )MODEL | HSC-35-3.3 | HSC-35-5 | HSC-35-12 | HSC-35-15 | HSC-35-24 | HSC-35-48 |
OUTPUT | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V |
Voltage Tolerance | ±3% | ±2% | ±1% | ±1% | ±1% | ±1% |
Load Stability | ±2% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Rated Current | 6A | 6A | 3A | 2.4A | 1.5A | 0.8A |
Current Range | 0-6A | 0-6A | 0-3A | 0-2.4A | 0-1.5A | 0-0.8A |
Rated Power | 19.8W | 30W | 36W | 36W | 36W | 38.4W |
Ripple & Noise | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p |
DC Adjustment Range | 2.9-3.6V | 4.5-5.5V | 10.8-13.2V | 13.5-16.5V | 22-26.4V | 42-52.8V |
Setup, Rise, Hold Time | 500ms,30ms,80ms /230VAC 1200ms,30ms,15ms /115VAC at full load |
INPUT | Voltage Range | AC 88~264VAC DC 125~370VDC |
AC Current | 0.55A/ 230 V 0.8A/115V |
Efficiency | 73% | 77% | 81% | 83% | 84% | 84% |
Inrush Current | Cold start 36A/230VAC |
Leakage Current | <2 mA/240VAC |
PROTECTION | Over Load | 110%~150% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
Short circuit | Protection: Hiccup mode, recovers automatically after fault condition is removed |
Over Voltage | 3.8-4.45V | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 55.2-64.8V |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
ENVIRONMENT | Working Temp., Humidity | -25ºC~+70ºC;20%~90 %RH(Refer to output load derating curve) |
Storage Temp., Humidity | -40ºC~+85ºC;10%~95 %RH |
Vibration | 10~500Hz,5G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY | Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
STANDARD | Safety Standard | UL60950-1,TUV EN60950-1 Approved |
EMC Standard | Design refer to EN55022 CLASS |
OTHERS | Weight | 0.3Kg |
Packing | 60pcs/18Kg/0.9CUFT |
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation. |

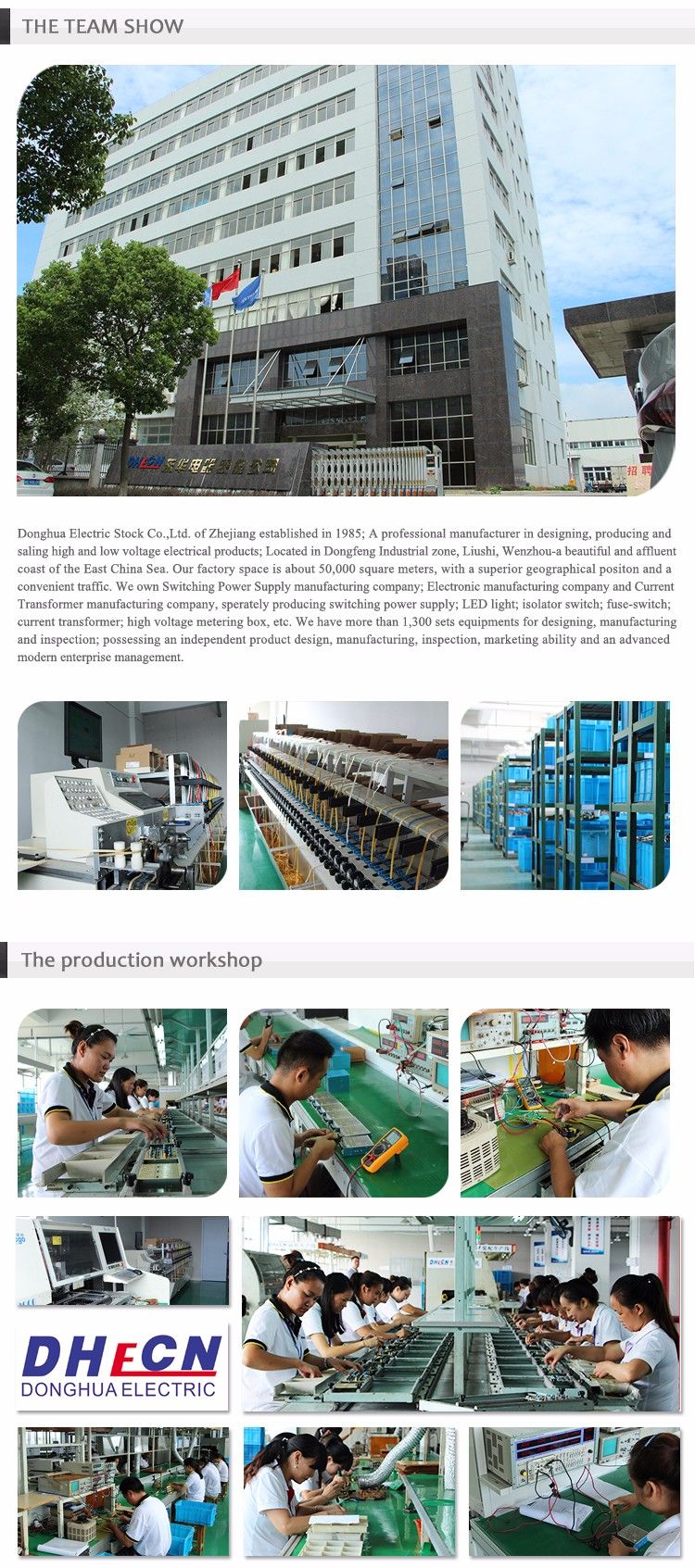

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.
To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.
Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.
Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
