HSC-50 Single Output Switching Power Supply 50W Full AC Range Input From 88 to 264V

Name: HSC-50 Single Output Switching Power Supply 50W Full AC Range Input From 88 to 264V
Brand: all-electronics-online.com
SKU: 806106195
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	US $ 9.3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSC-50-48
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	85~264 VAC
Brand:	Dhecn

Product Description

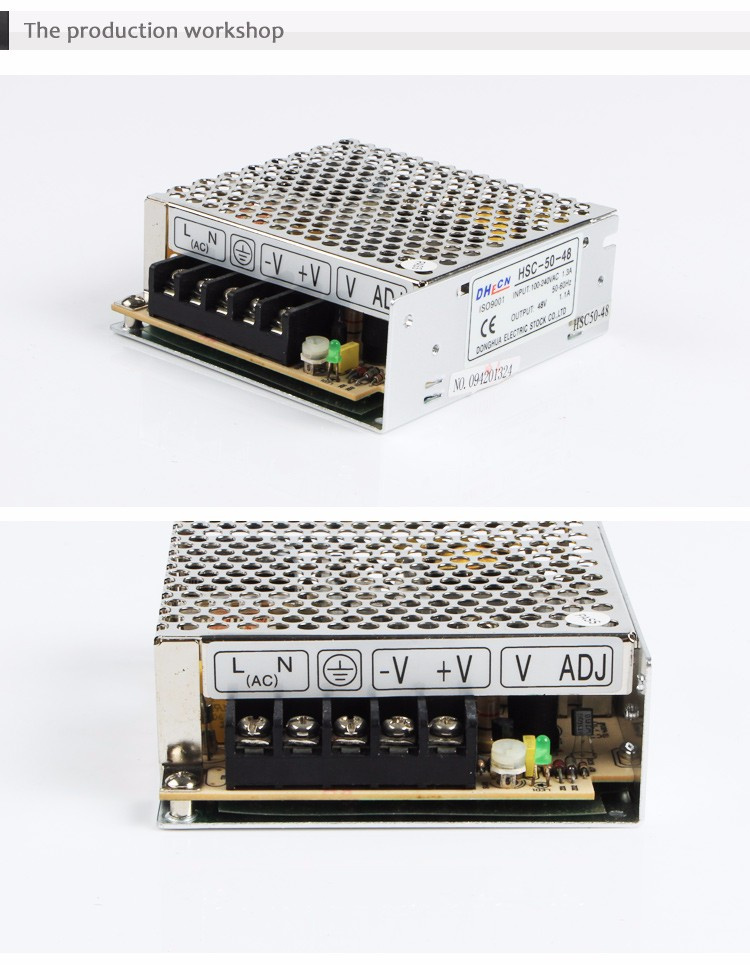

HSC-50 Single output switching power supply 50W
Full AC range input from 88 to 264V

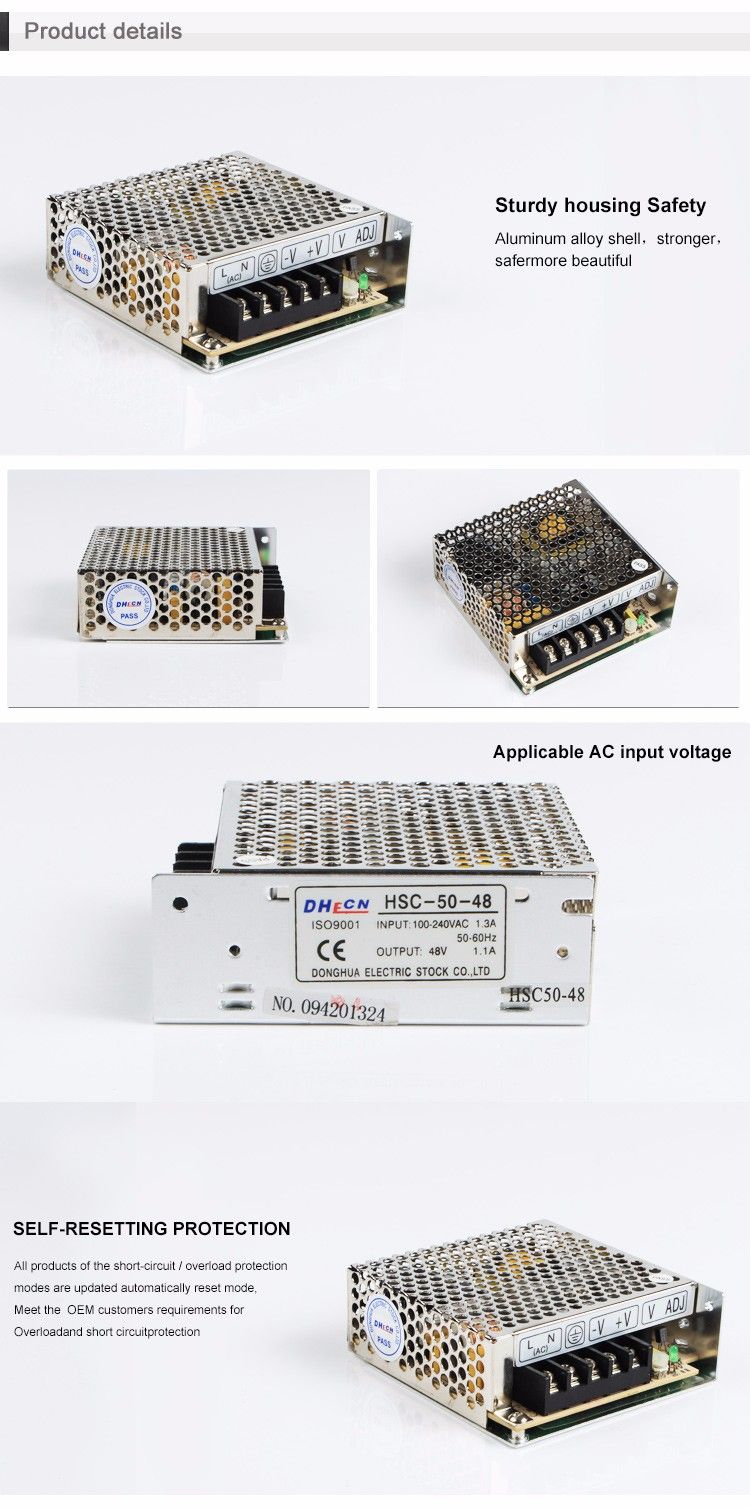

Features:
·Little volume,high efficiency,long life and high reliability
·Universal AC input/full range
·Protections:Short circuit/Over load/Over voltage
·Cooling By free air convection
·LED indicator for power on
·100% full load burn-in test
·1 year warranty

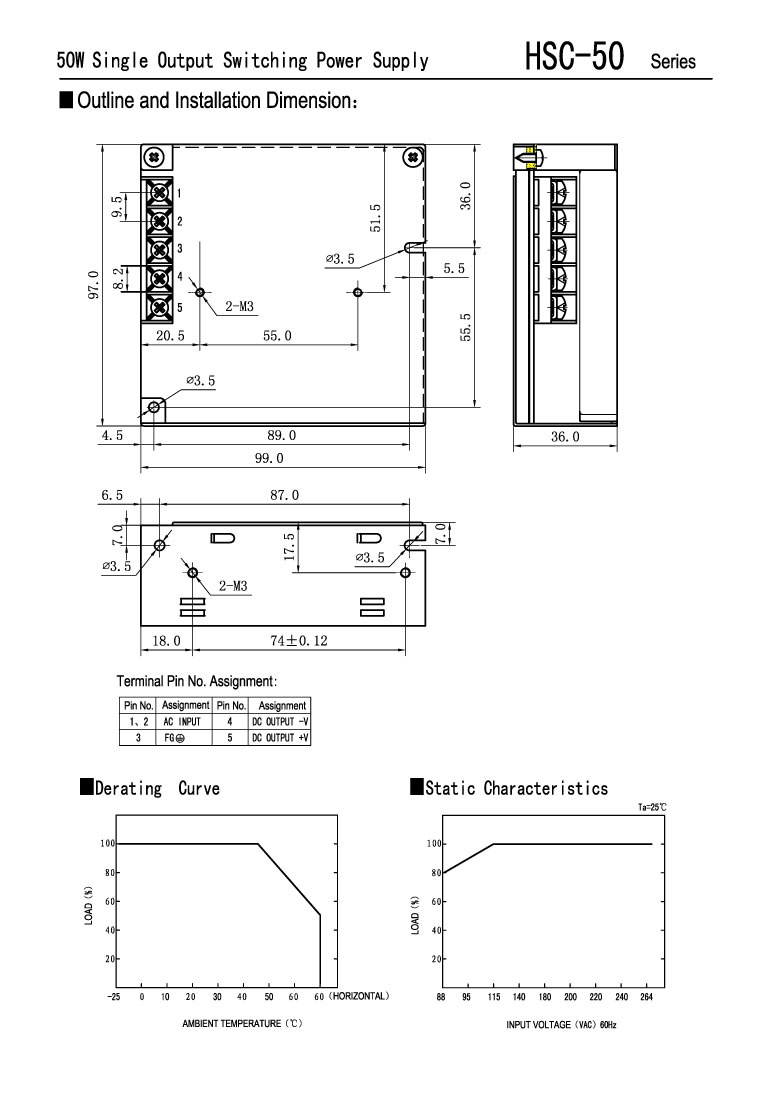

·Dimension: 99*97*36mm(L*W*H )

MODEL		HSC-50-3.3	HSC-50-5	HSC-50-12	HSC-50-15	HSC-50-24	HSC-50-48
OUTPUT	DC Voltage	3.3V	5V	12V	15V	24V	48V
	Voltage Tolerance	±3%	±2%	±1%	±1%	±1%	±1%
	Load Stability	±2%	±1%	±0.5%	±0.5%	±0.5%	±0.5%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Rated Current	8A	8A	4.2A	3.4A	2.2A	1.1A
	Current Range	0-8A	0-8A	0-4.2A	0-3.4A	0-2.2A	0-1.1A
	Rated Power	26.4W	40W	50.4W	51W	52.8W	52.8W
	Ripple & Noise	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	DC Adjustment Range	3.1-3.6V	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V	42-52.8V
	Setup, Rise, Hold Time	500ms,20ms,60ms /230VAC 1200ms,30ms,14ms /115VAC at full load
INPUT	Voltage Range	AC 88~264VAC DC 125~370VDC
	AC Current	0.8A/ 230 V 1.3A/115V
	Efficiency	72%	78%	81%	83%	84%	86%
	Inrush Current	Cold start 33A/230VAC
	Leakage Current	<2 mA/240VAC
PROTECTION	Over Load	110%~160%
	Over Load	Protection: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	3.8-4.45V	5.75-6.75V	13.8-16.2V	17.25-20.25V	27.6-32.4V	55.2-64.8V
	Over Voltage	Protection: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	Working Temp., Humidity	-25ºC~+70ºC;20%~90 %RH(Refer to output load derating curve)
	Storage Temp., Humidity	-40ºC~+85ºC;10%~95 %RH
	Vibration	10~500Hz,5G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
SAFETY	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
STANDARD	Safety Standard	UL60950-1,TUV EN60950-1 Approved
STANDARD	EMC Standard	Design refer to EN55022 CLASS
OTHERS	Weight	0.41Kg
OTHERS	Packing	45pcs/19.5Kg/0.9CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation.

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
