HSCN-1200, 1200W Switching Power Supply with Parallel Function 24VDC, 50A

Name: HSCN-1200, 1200W Switching Power Supply with Parallel Function 24VDC, 50A
Brand: all-electronics-online.com
SKU: 806085725
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 84.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSCN-1200-24
Output Voltage:	24VDC
Output Current:	50A
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	IEC950
Output Power:	1200W
Input Voltage:	AC90~130/180~260
Brand:	Dhecn

Product Description

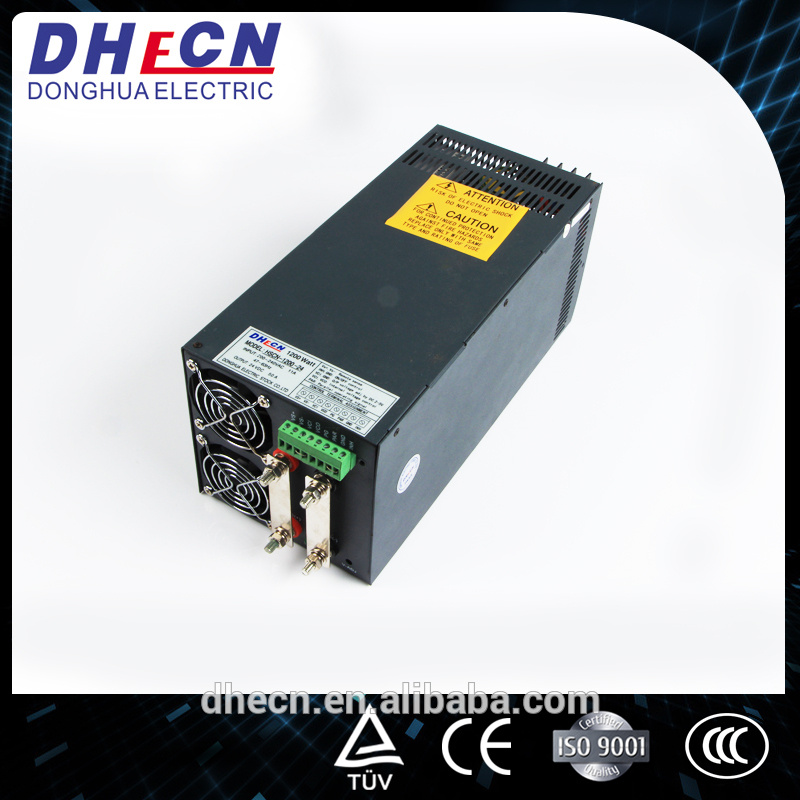

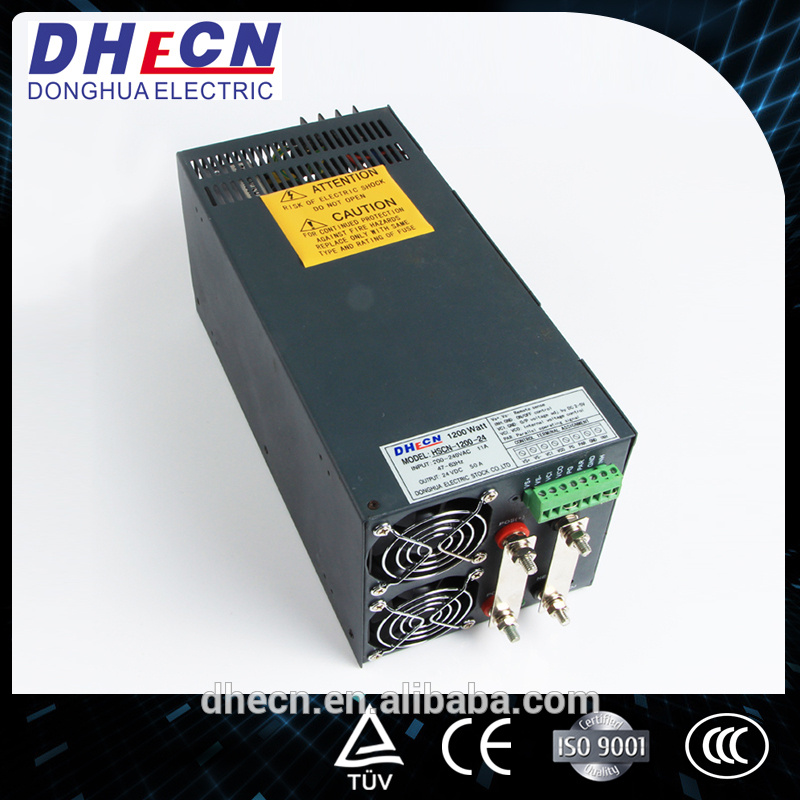

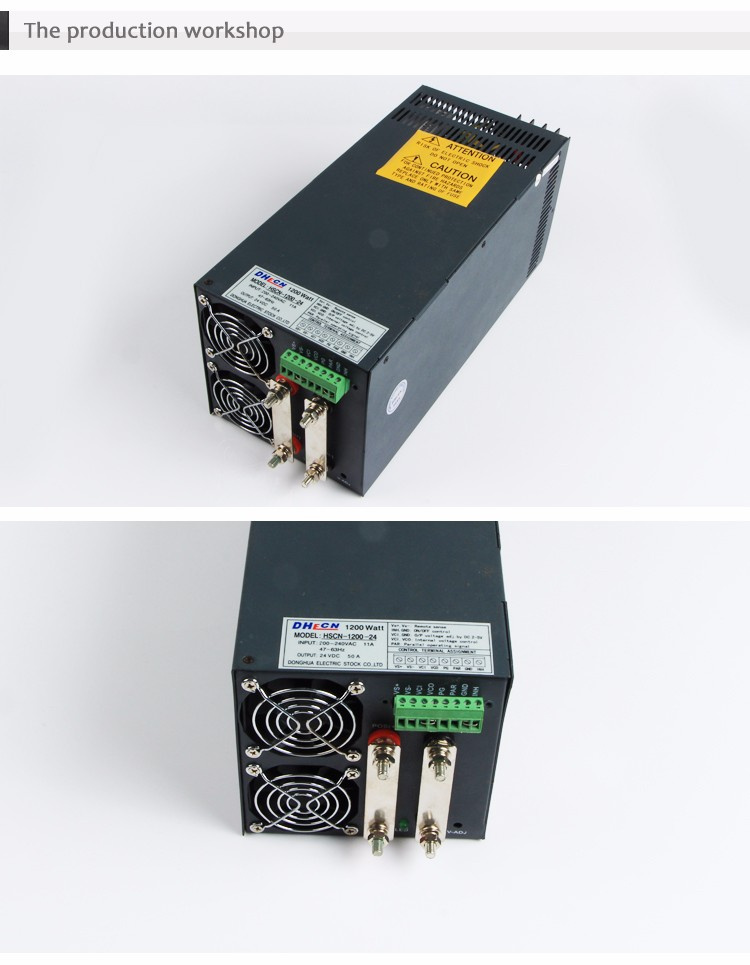

HSCN-1200, 1200W switching power supply with parallel function 24VDC,50A
Features:
· High reliability, low ripple
·AC input voltage AC200~260V
·Protections : Short circuit/ Over load/Over voltage/ Over temperature

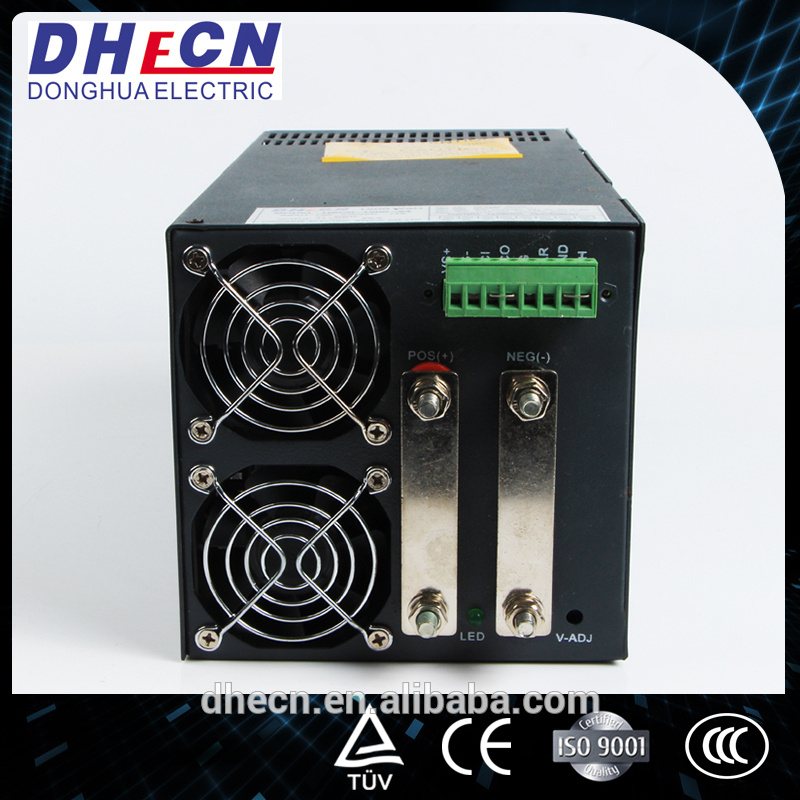

·Built-in remote ON-OFF control and remote sense function
·With parallel function
·Can adjust from 40%~100% output voltage by external control 2-5V
·Forced air cooling by built-in DC fan
·2 year warranty

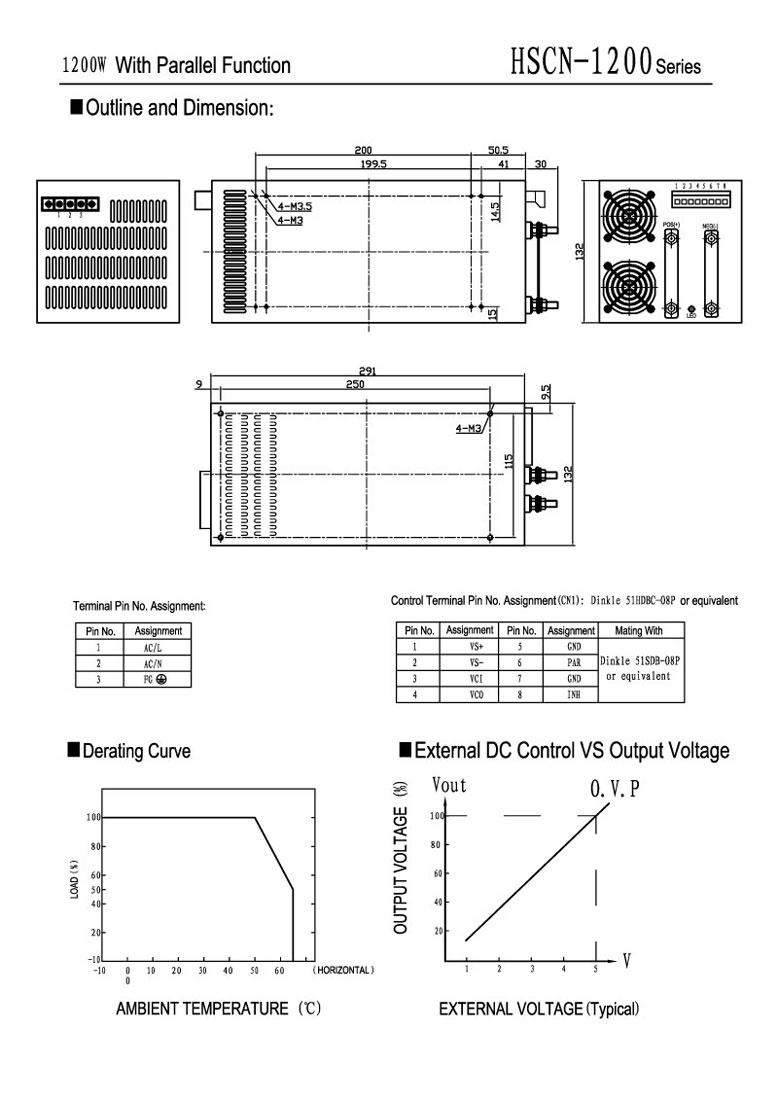

·Dimensions: 291*132*132mm(L*W*H)

MODEL		HSCN-1200-05	HSCN-1200-12	HSCN-1200-15	HSCN-1200-24	HSCN-1200-48
OUTPUT	DC Voltage	5V	12V	15V	24V	48V
	Voltage Tolerance	±2.5%	±1%	±1%	±1%	±1%
	Rated Current	180A	100A	80A	50A	24A
	Current Range	0-180A	0-100A	0-80A	0-50A	0-24A
	Rated Power	900W	1200W	1200W	1200W	1200W
	Ripple & Noise	100mVp-p	120mVp-p	150mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	±5%; Can adjust from 40%~100% output voltage by external control 2-5V
	Setup, Rise, Hold Time	800ms, 50ms, 16ms at full load

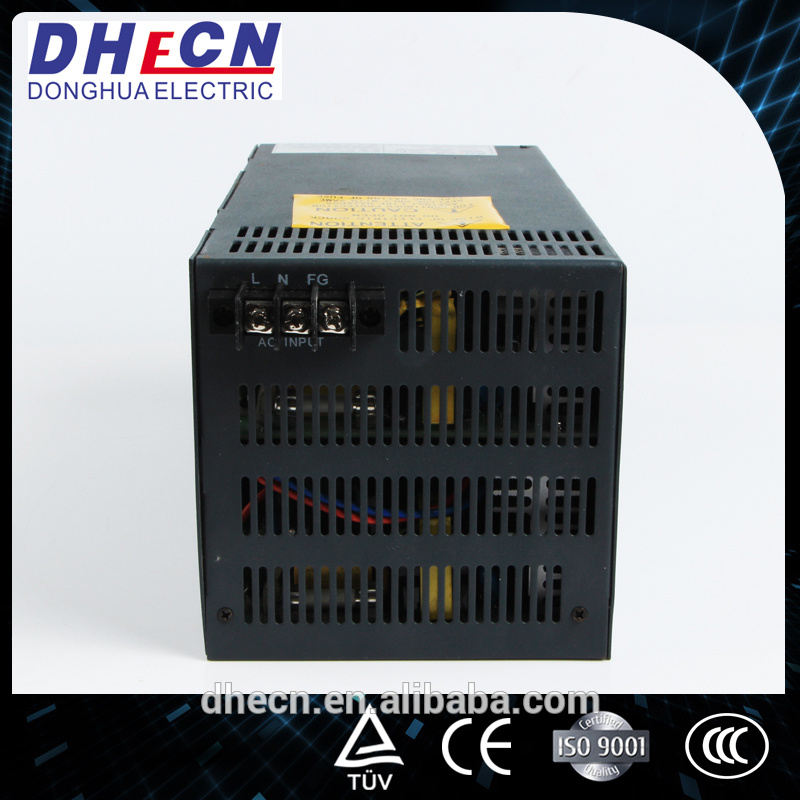

INPUT	Voltage Range	200~260 VAC47~63 Hz; 290~370VDC
	AC Current	11A/ 230 VAC
	Efficiency	77%	83%	85%	85%	87%
	Inrush Current	120A/230V
	Leakage Current	3.5 mA/240VAC
PROTECTION	Over Load	101%~115%	110%~135%
		Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
	Over Voltage	110%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temp	TSW1(Power transistor) When temp. >100 ºC, shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10ºC~+65ºC,20%~90 %RH
	Storage Temp., Humidity	-20ºC~+85ºC,10%~95 %RH
	Vibration	10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
	Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL1950,CSA22.2,IEC60950
	EMC Standard	Design refer to FCC Part 15 Class A
OTHERS	Weight	4.5Kg;
	Packing	4pcs/20kg/CARTON
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

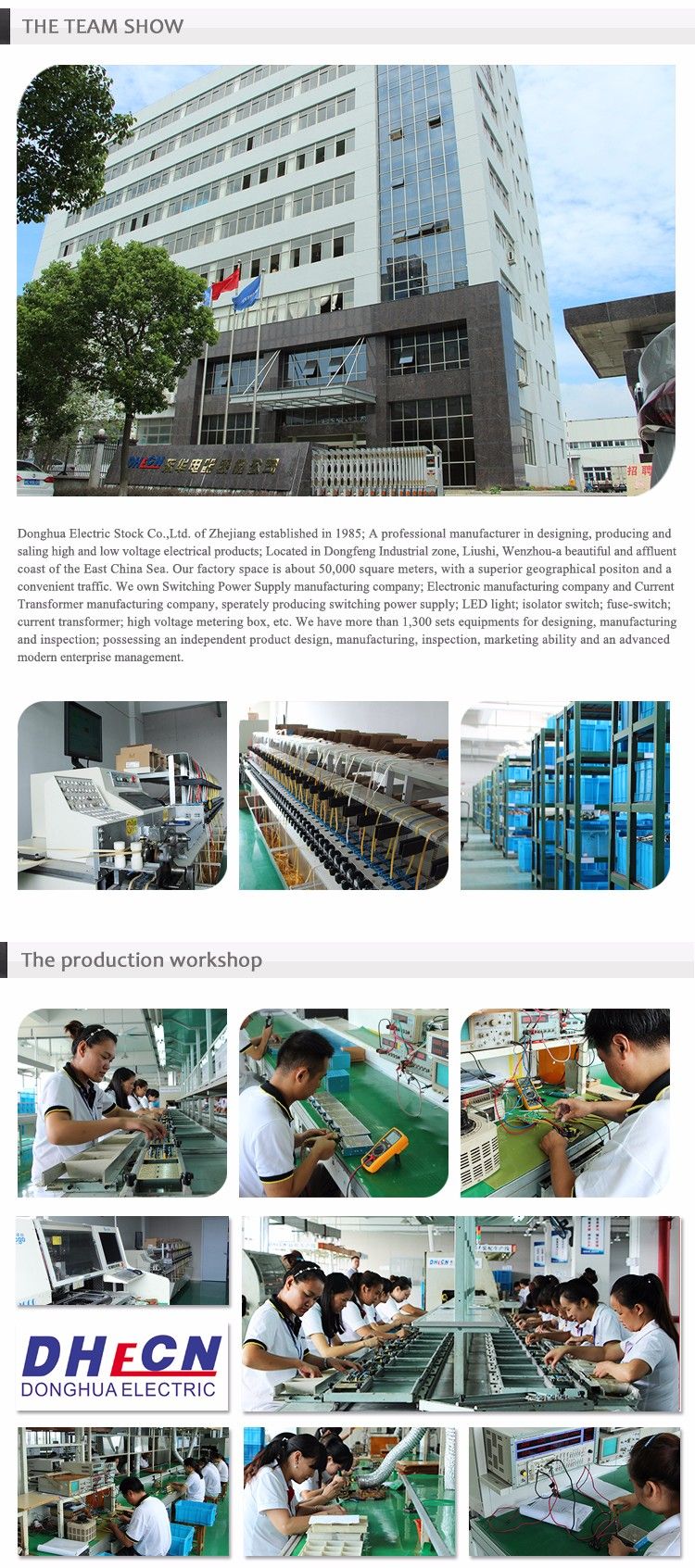

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.
