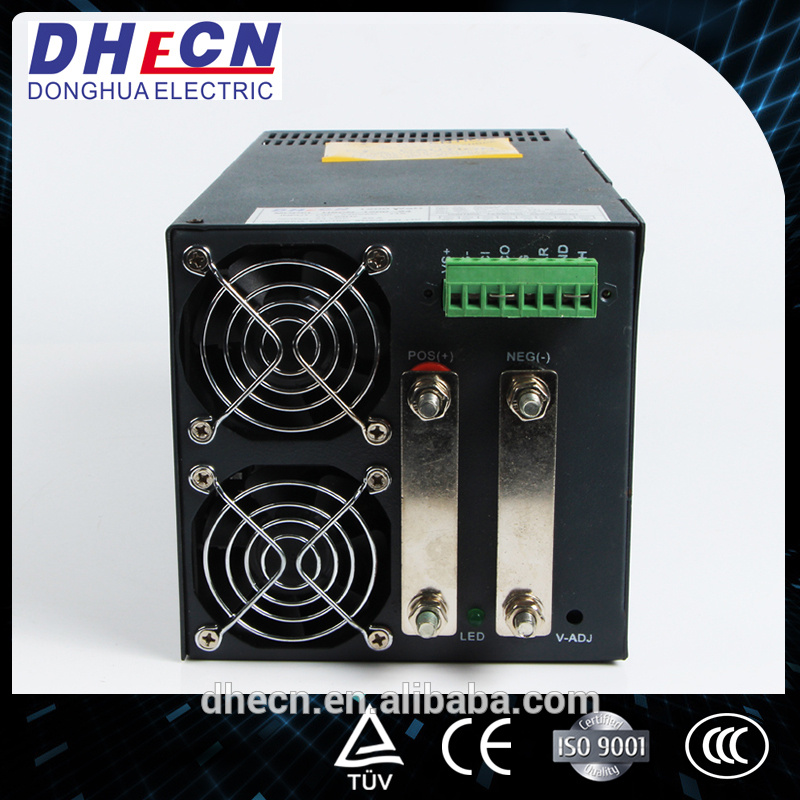

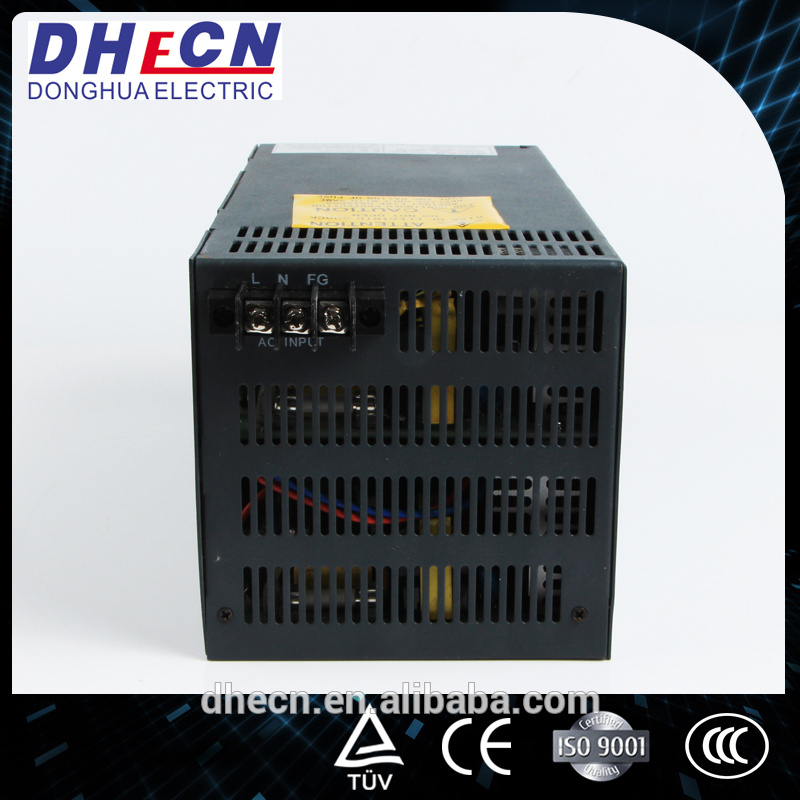

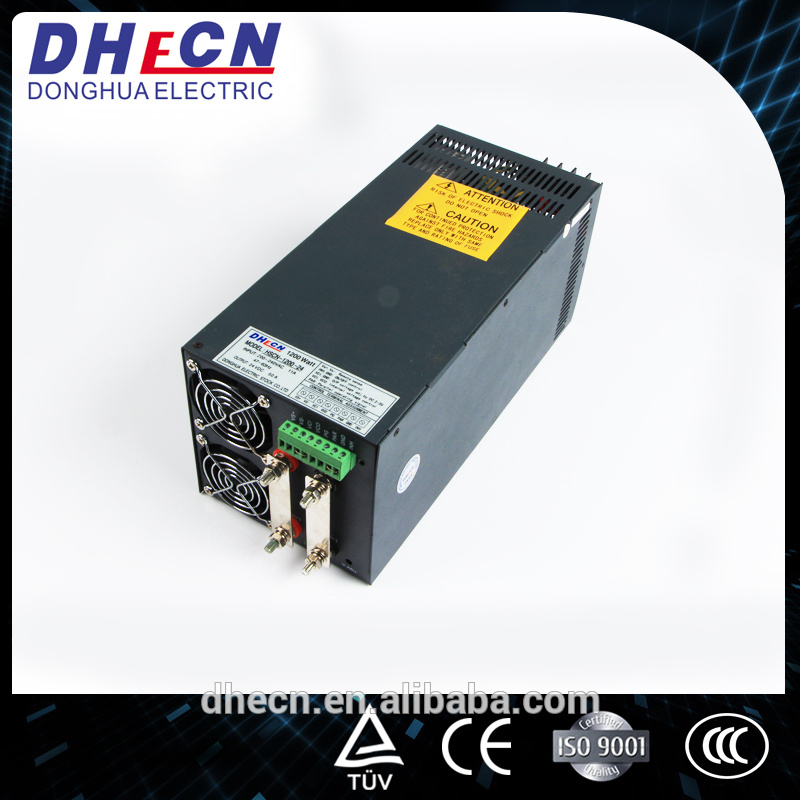

HSCN-1500, 1500W Switching Power Supply with Parallel Function 12VDC, 24VDC, 48VDC

Name: HSCN-1500, 1500W Switching Power Supply with Parallel Function 12VDC, 24VDC, 48VDC
Brand: all-electronics-online.com
SKU: 806086575
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 228/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSCN-1500
Output Voltage:	12VDC,24VDC,48VDC Can Be Offered
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	IEC950
Output Power:	1500W
Input Voltage:	AC90~130/180~260
Brand:	Dhecn

Product Description

HSCN-1500,1500W switching power supply with parallel function 12VDC,24VDC,48VDC
Features:
· High reliability, low ripple
·AC input voltage AC200~260V
·Protections : Short circuit/ Over load/Over voltage/ Over temperature
·Built-in remote ON-OFF control and remote sense function
·With parallel function
·Can adjust from 40%~100% output voltage by external · control 2-5V
·Forced air cooling by built-in DC fan
·1 year warranty
·Dimensions: 291*132*132mm(L*W*H)

MODEL		HSCN-1500-12	HSCN-1500-15	HSCN-1500-24	HSCN-1500-48
OUTPUT	DC Voltage	12V	15V	24V	48V
	Voltage Tolerance	±1%	±1%	±1%	±1%
	Rated Current	125A	100A	62.5A	32A
	Current Range	0-125A	0-100A	0-62.5A	0-32A
	Rated Power	1500W	1500W	1500W	1536W
	Ripple & Noise	120mVp-p	150mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	±5%; Can adjust from 40%~100% output voltage by external control 2-5V
	Setup, Rise, Hold Time	800ms, 50ms, 16ms at full load
INPUT	Voltage Range	200~260 VAC47~63 Hz;290~370VDC
	AC Current	12A/ 230 VAC
	Efficiency	83%	84%	85%	87%
	Inrush Current	120A/230V
	Leakage Current	3.5 mA/240VAC
PROTECTION	Over Load	110%~135%
		Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
	Over Voltage	110%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temp	TSW1(Power transistor) When temp. >100 ºC, shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10ºC~+65ºC,20%~90 %RH
	Storage Temp., Humidity	-20ºC~+85ºC,10%~95 %RH
	Vibration	10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
	Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL1950,CSA22.2,IEC60950
	EMC Standard	Design refer to FCC Part 15 Class A
OTHERS	Weight	4.5Kg;
	Packing	4pcs/20kg/CARTON
	Special Function	DC Voltage adj. Remote Control. Remote sensing. Parallel operation.
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

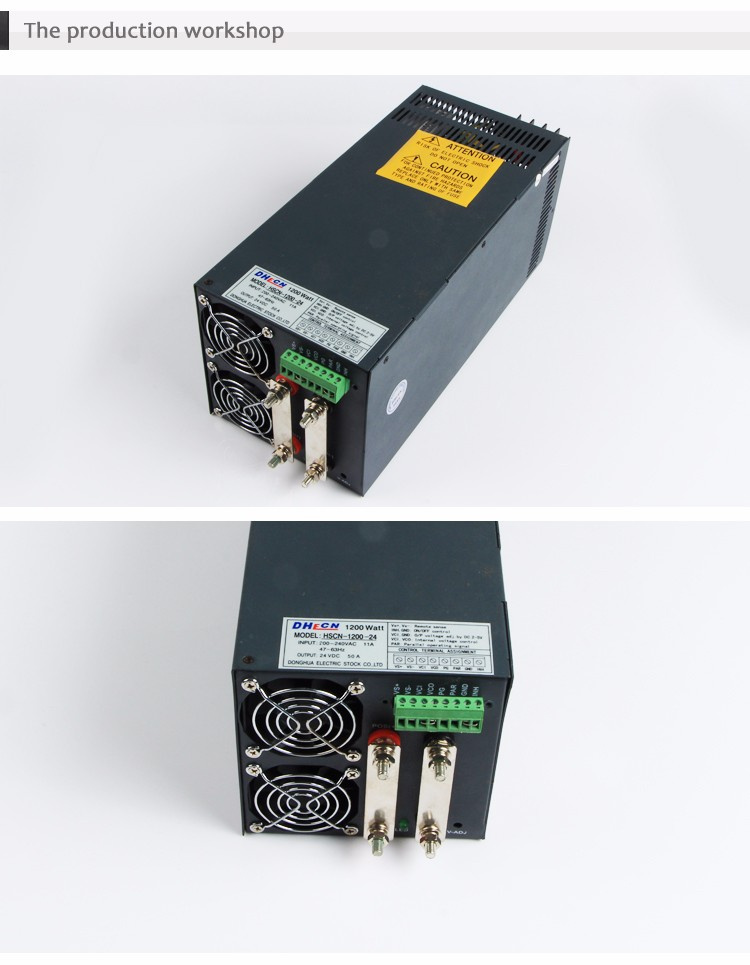

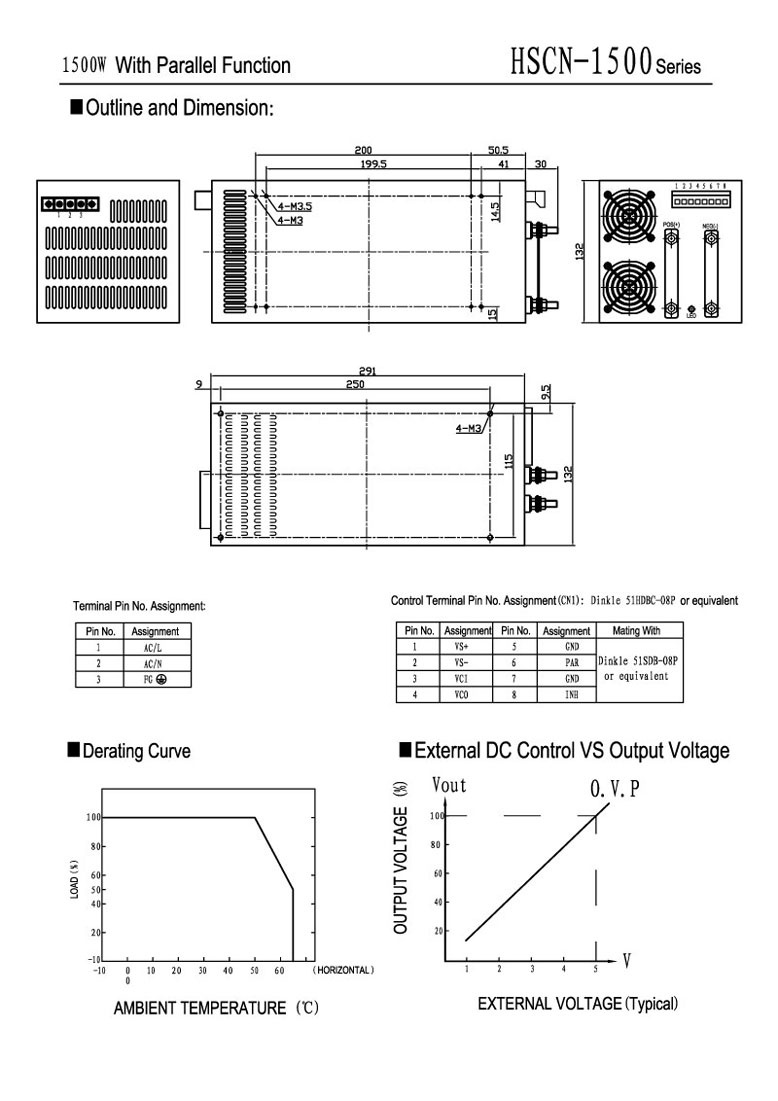

HSCN-1500, HSCN-1200 are the same dimension.

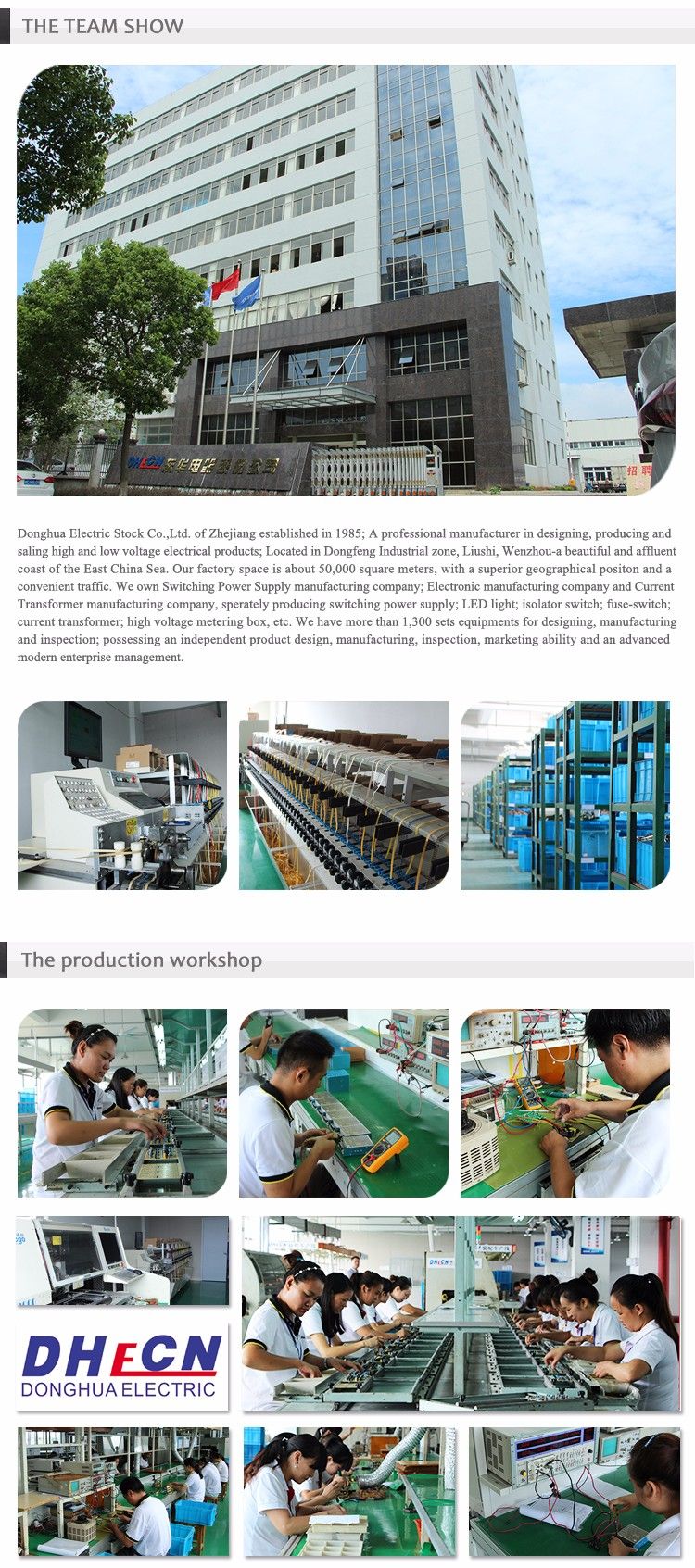

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.
