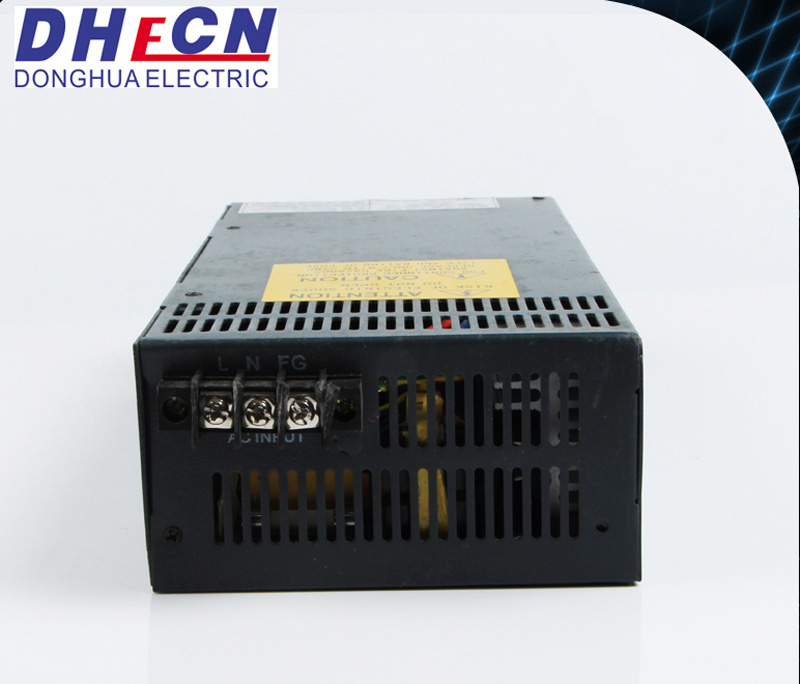

HSCN-800 Switching Power Supply with Parallel Function 800W

Prod Model:	HSCN-800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Power Supply:	Single Output(AC/DC to DC)
Output Voltage Adj-Range:	Can Adjust Form 40%~100% Output Voltage
Other Function:	with Parallel Function
Output Type:	Single
Warranty:	2 Years
Starting Mode:	Self-excited Switching Power Supply
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	GB,IEC
Output Power:	800W
Input Voltage:	AC90~130/180~260
Connection Mode:	Series or Parallel
Brand:	Dhecn

Product Description

HSCN-800 Switching Power Supply with Parallel Function 800W
Features:
High reliability, low ripple
AC input range selected by switch
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Built-in remote ON-OFF control and remote sense function
With parallel function
Can adjust from 20%~100% output voltage by external control 1-5V
Forced air cooling by built-in DC fan
2 years warranty
Dimensions: 291*132*68mm(L*W*H)

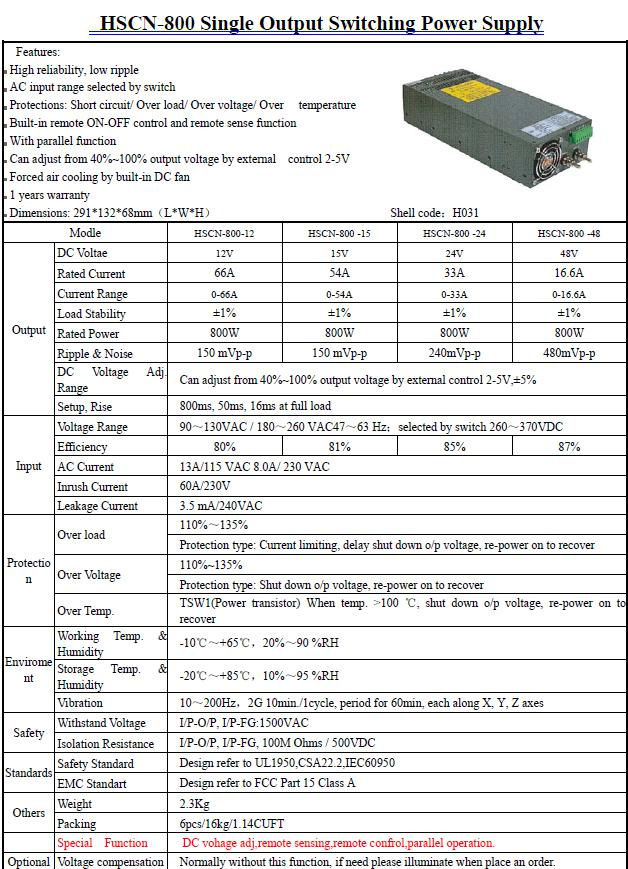

Specification:
1)INPUT
Voltage Range: 90~130VAC / 180~260 VAC47~63 Hz; Selected by switch 260~370VDC
AC Current: 13A/115 VAC 8.0A/ 230 VAC
Efficiency: 80%(HSCN-800-12); 81%(HSCN-800-15); 85%(HSCN-800-24); 87%(HSCN-800-48);
Inrush Current: 60A/230V
Leakage Current: 3.5 mA/240VAC

2)PROTECTION
Over Load: 110%~135% Protection type: Current limiting, delay shut down o/p voltage, re-power on to recover
Over Voltage: 110%~135% Protection type: Shut down o/p voltage, re-power on to recover
Over Temp: TSW1(Power transistor) When temp. >100 º C, shut down o/p voltage, re-power on to recover

3)ENVIRONMENT
Working Temp., Humidity: -10º C~+65º C, 20%~90 %RH
Storage Temp., Humidity: -20º C~+85º C, 10%~95 %RH
Vibration: 10~200Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
Withstand Voltage: I/P-O/P, I/P-FG: 1500VAC
Isolation Resistance: I/P-O/P, I/P-FG, >100M Ohms / 500VDC
Safety Standard: Design UL1950, CSA22.2, IEC60950
EMC Standard: Design refer to FCC Part 15 Class A

5)OUTPUT
Model: HSCN-800-12 | HSCN-800-15 | HSCN-800-24 | HSCN-800-48
DC Voltage: 12V | 15V | 24V |48V
Voltage Tolerance: ± 1% | ± 1% | ± 1% | ± 1%
Rated Current: 66A | 54A | 33A | 16.6A
Current Range: 0-66A | 0-54A | 0-33A | 0-16.6A
Rated Power: 800W | 800W | 800W | 800W
Ripple & Noise: 150 mVp-p | 150 mVp-p | 240mVp-p | 480mVp-p
DC Adjustment Range: Can adjust from 20%~100% output voltage by external control 1-5V
Setup, Rise, Hold Time: 800ms, 50ms, 16ms at full load
