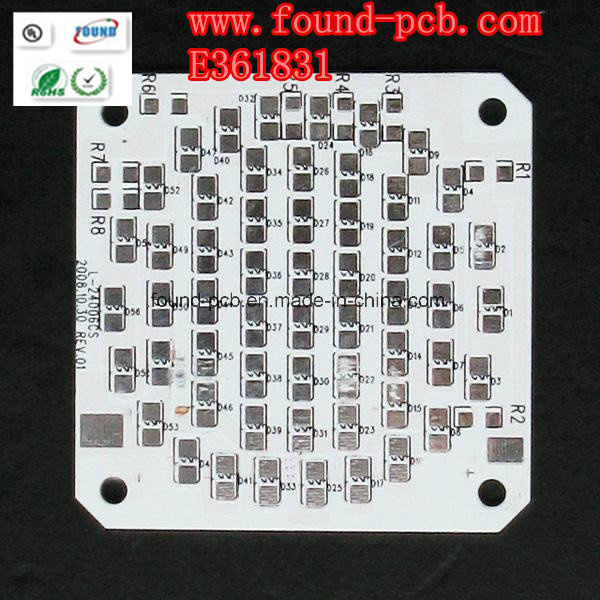

Ht Copper Base Bergquist

Name: Ht Copper Base Bergquist
Brand: all-electronics-online.com
SKU: 731682242
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD-00444
Type:	Rigid Circuit Board
Dielectric:	SIC
Material:	Complex
Flame Retardant Properties:	V1

Product Description

Metal tube rotameter is a kind of flowmeter which is suitable for measuring flow of liquid and gas through floater movement inside metal tube. Data of flow can be read from dial scale thanks to magnetic coupling to act on signal transmitter. Output of electrical signal is 4-20mA.

The rotameter can be used in any harsh working environment due to its shatter-proof, pressureproof, temperature-resistant and corrosion-resistant characteristics.

1. Features of the product
2. Double lines LCD, showing both instantaneous and accumulated flow.
3. More stable signal output: Construction of single axis and non-touching magnetic coupling.
4. Fully metal-made body, suitable for high temperature, high pressure and corrosive media.
5. Can be used even in flammable, explosive and harsh working environments.
6. Power supply: Two-wire system, battery and AC for selection
7. With functions of data recovery, backup and power failure protection
8. New design for less pressure loss.

2. Technical data

Measure range	Water (20ºC) 6L to 200000L/h, Air (0.1013MPa 20ºC) 0.05m3 to 4000m3/h
Ratio of measuring range	10:1 for standard, 20:1 for special
Accuracy	1.5 for standard, 1.0 for special
Temp of mediums	-80ºC to 120ºC for standard type, 400ºC for high temperature type, ≤85ºC for PTFE lining type
Temp of working environment	-40ºC to 120ºC
Viscosity of mediums	DN15: η≤5mPa.s(F15.0-F15.4) η≤30mPa.s(F15.5-F15.9) DN25:η≤250mPa.s DN50-DN150:η≤300mPa.s
LCD display	LCD display with backlight can show instantaneous flow, accumulated flow (positive, negative and net), velocity, working status and etc.

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
