| Prod Model: |
HT11 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power Factor: |
0.9 |
| Output Voltage: |
200V/208V/220V/230V/240V |
| Power Range: |
1~3kVA |
| Technology: |
Online Double Conversion, Apfc, DSP |
| Display: |
LCD and LED |
| Communication Port: |
Snmp, RS232, USB, dB9, Dry Contact |
| Efficiency: |
More Than 90% |
| Phase: |
Single Phase |
| Type: |
On-line |
Product Description
Features:
High frequency and double conversion on-line technology
1.Wide input voltage range,True online UPS
2.Battery cold start .
3.DSP technology,advantaged battery management
4.Automatical fan speed adjustment .Overload and short circuit protection

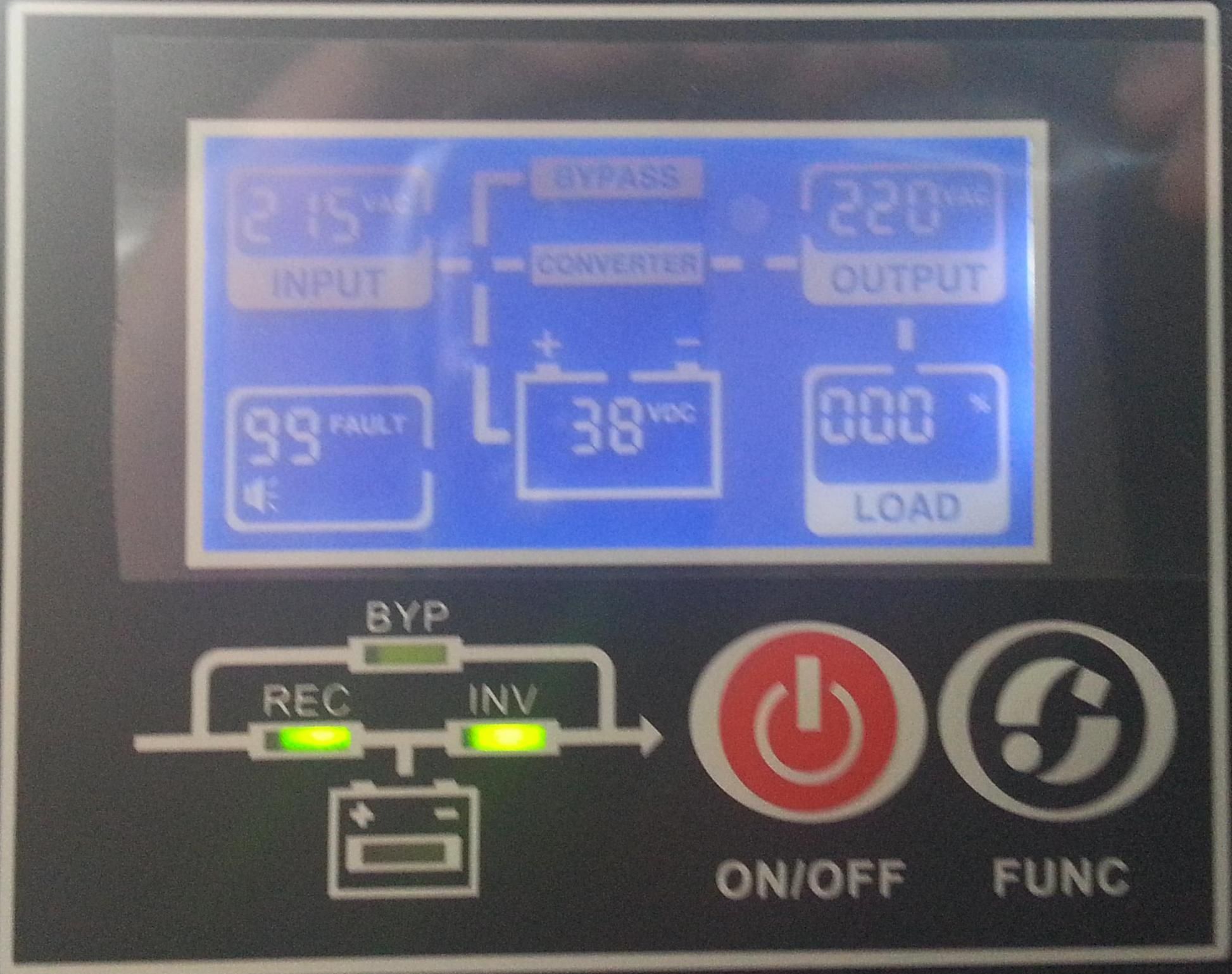

5. LCD status display, more information and history log
6.Complete protection functions
7.Network/Fax/modem surge protections
8.EMI/RFI noise filter
9.Smart Rs232 port with monitoring software
10. PFC technology
11.Intelligent slot for SNMP adaptor(optional)
|
|

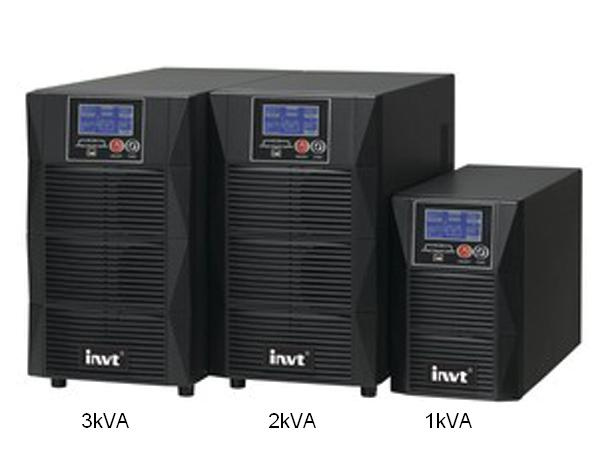

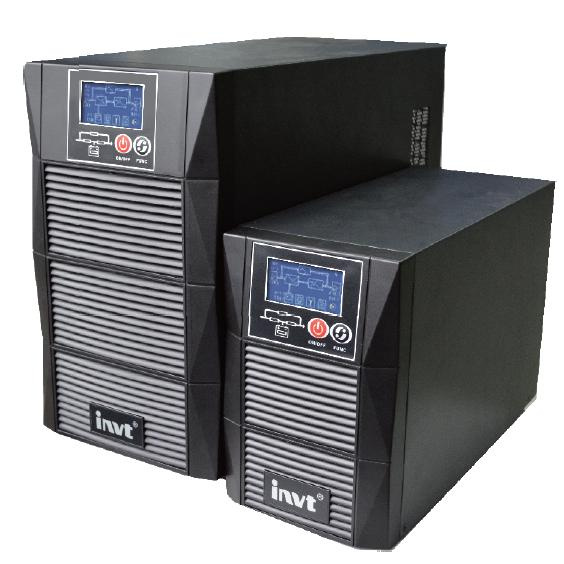

HT1101S |
HT1101L |
HT1102S |
HT1102L |
HT1103S |
HT1103L |
|
INPUT |
|
|
Cold Start |
YES, default frequency=50Hz or settable |
|
Acceptable Input Voltage |
110VAC~288VAC |
|
|
100% load@>176VAC |
|
80% load@>154VAC |
|
70% load@>132VAC |
|
50% load@>110VAC |
|
Phase |
Single phase in,single phase out |
|
Transfer Voltage Range |
(200VAC/208VAC/220VAC/230VAC/240VAC) |
|
-Line low transfer |
110VAC |
|
-Line low recovery |
121VAC |
|
-Line high transfer |
288VAC |
|
-Line high recovery |
281VAC |
|
Input Current |
|
|
-Rating(nominal input voltage) |
4.8A |
9.6A |
14.4A |
|
Input Power Factor |
≥0.97 |
|
Input Frequency Range |
40~70Hz |
|
OUTPUT |
|
|
|
|
Frequency adaptable |
Settable |
|
Power |
|
|
-Power(kVA) max |
1 |
2 |
3 |
|
-Power(kW) max |
0.9(0.8 for 200VAC/208VAC) |
1.8(1.6 for 200VAC/208VAC) |
2.7(2.4 for 200VAC/208VAC) |
|
Output Voltage |
|
|
-Waveform(Bat. Mode) |
Pure Sine Wave |
|
-Nominal voltage |
200/208/220/230/240VAC |
|
-Voltage regulation |
± 1 % |
|
-Transient response |
≤5% (0% - 100% -0%) |
|
-Transient recovery |
≤10ms (0% - 100% -0%) |
|
-Voltage distortion |
≤1% THD, linear load |
|
|
≤5.5% THD, non-linear load |
≤5% THD, non-linear load |
≤5% THD, non-linear load |
|
Output Frequency |
|
|
-Synchronization range |
±5Hz default |
|
-Slew rate |
0.5~5Hz/s,2 Hz/s default |
|
-Battery mode |
(50±0.1) Hz default |
|
Transfer Time |
|
|
-Line mode to battery mode |
0 |
|
-Inverter to bypass |
2ms |
|
Efficiency |
|
|
-Line mode with battery full charged |
86%@100% load, 87%@50% load |
91%@100% load, 88%@50% load |
88%@100% load, 90%@50% load |
|
-ECO mode |
94.0% |
95.0% |
95.0% |
|
-Battery mode |
83%@100% load, 84%@50% load |
87%@100% load, 88%@50% load |
87%@100% load, 89%@50% load |
|
Noise(1m away) |
<43dB@<60%load,<47dB@>60%load |
<45dB@<60%load,<50dB@>60%load |
<45dB@<60%load,<50dB@>60%load |
|
Overload Capability(Inverter) |
105%~130%: Transfer to bypass after 1 mins. |
|
150%: Transfer to bypass after 30s |
|
Overload Capability(Battery Mode) |
105%~130%:shutdown after 10s |
|
150%:shutdown after 5s |
|
Overload Capability (Bypass Mode) |
<130%: Long time |
|
>130%&<150%:Shutdown after 10min |
|
>150%&<180%:Shutdown after 5 seconds |
|
Crest Ratio |
3:1 |
|
BATTERY |
|
|
Rating/Type |
12VDC/7Ah |
Depend on the capacity of external batteries |
12VDC/7Ah |
Depend on the capacity of external batteries |
12VDC/7Ah |
Depend on the capacity of external batteries |
|
Quantity |
3 |
6 |
8 |
|
DC Voltage |
36VDC |
72VDC |
96VDC |
|
Back-up Time |
6mins @80% load |
Depend on the capacity of external batteries |
6mins @80% load |
Depend on the capacity of external batteries |
5.5mins @80% load |
Depend on the capacity of external batteries |
|
Battery-Low Voltage |
33VAC~35VDC depending on load |
66VDC~70VDC depending on load |
88VDC~94VDC depending on load |
|
Charger |
|
|
|
-Charging voltage |
float:41VDC/boost:42VDC |
float:82VDC/boost:84VDC |
float:109VDC/boost:112VDC |
|
-Charging current (max) |
1A |
8A |
1A |
8A |
1A |
8A |
|
-Charging time |
8h recharge to 90% |
Depend on the capacity of external batteries |
8h recharge to 90% |
Depend on the capacity of external batteries |
8h recharge to 90% |
Depend on the capacity of external batteries |
|
Leakage current |
<1mA |
<1mA |
<1mA |
|
INDICATOR & ALARM |
|
|
-Display |
LED+LCD |
|
-Alarm |
two short one long |
|
-Fault |
Continuous beeping |
|
INTERFACE |
|
|
-Smart RS232 |
Standard Cable support INVT Power Monitor Software |
|
-SNMP(option) |
Power Managment from SNMP Manager and Web Browser |
|
OPTION |
|
|
-Intelligent Kits |
DB9 port, dry contact |
|
-USB |
B-type USB port |
|
-SNMP Kits |
pluggable type |
|
MECHANICAL |
|
|
-W*D*H (mm) |
144*353*222 |
190*374*336 |
190*426*336 |
|
-W*D*H (mm)(shipment) |
240*448*320 |
285*470*420 |
285*521*420 |
|
-Net Weight (KG) |
12 |
6 |
21 |
10.5 |
25.6 |
11.5 |
|
-Package Weight(KG) |
13 |
7 |
22 |
12 |
27 |
13 |
|
Color |
Black default |
