| Prod Model: |
HT11 |
| Output Power Factor: |
0.9 |
| Output Voltage: |
200V/208V/220V/230V/240V |
| Power Range: |
1-3kVA |
| Technology: |
Online Double Conversion, Apfc, DSP |
| Display: |
LCD and LED |
| Communication Port: |
Snmp, RS232, USB, dB9, Dry Contact |
| Efficiency: |
More Than 90% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Invt |
Product Description

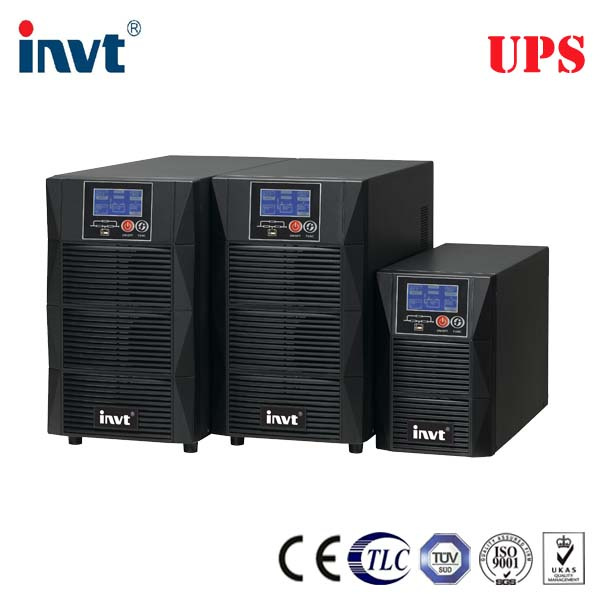

Ht11 Series 1kVA to 3kVA Online UPSFeatures:
High frequency and double conversion on-line technology
1. Wide input voltage range, True online UPS
2. Battery cold start.
3. DSP technology, advantaged battery management
4. Automatical fan speed adjustment. Overload and short circuit protection
5. LCD status display, more information and history log
6. Complete protection functions
7. Network/Fax/modem surge protections
8. EMI/RFI noise filter
9. Smart Rs232 port with monitoring software
10. PFC technology
11. Intelligent slot for SNMP adaptor(optional).
| | HT1101S | HT1101L | HT1102S | HT1102L | HT1103S | HT1103L |
| INPUT | |
| Cold Start | YES, default frequency=50Hz or settable |
| Acceptable Input Voltage | 110VAC~288VAC |
| | 100% load@>176VAC |
| 80% load@>154VAC |
| 70% load@>132VAC |
| 50% load@>110VAC |
| Phase | Single phase in,single phase out |
| Transfer Voltage Range | (200VAC/208VAC/220VAC/230VAC/240VAC) |
| -Line low transfer | 110VAC |
| -Line low recovery | 121VAC |
| -Line high transfer | 288VAC |
| -Line high recovery | 281VAC |
| Input Current | |
| -Rating(nominal input voltage) | 4.8A | 9.6A | 14.4A |
| Input Power Factor | ≥0.97 |
| Input Frequency Range | 40~70Hz |
| OUTPUT | | | |
| Frequency adaptable | Settable |
| Power | |
| -Power(kVA) max | 1 | 2 | 3 |
| -Power(kW) max | 0.9(0.8 for 200VAC/208VAC) | 1.8(1.6 for 200VAC/208VAC) | 2.7(2.4 for 200VAC/208VAC) |
| Output Voltage | |
| -Waveform(Bat. Mode) | Pure Sine Wave |
| -Nominal voltage | 200/208/220/230/240VAC |
| -Voltage regulation | ± 1 % |
| -Transient response | ≤5% (0% - 100% -0%) |
| -Transient recovery | ≤10ms (0% - 100% -0%) |
| -Voltage distortion | ≤1% THD, linear load |
| | ≤5.5% THD, non-linear load | ≤5% THD, non-linear load | ≤5% THD, non-linear load |
| Output Frequency | |
| -Synchronization range | ±5Hz default |
| -Slew rate | 0.5~5Hz/s,2 Hz/s default |
| -Battery mode | (50±0.1) Hz default |
| Transfer Time | |
| -Line mode to battery mode | 0 |
| -Inverter to bypass | 2ms |
| Efficiency | |
| -Line mode with battery full charged | 86%@100% load, 87%@50% load | 91%@100% load, 88%@50% load | 88%@100% load, 90%@50% load |
| -ECO mode | 94.0% | 95.0% | 95.0% |
| -Battery mode | 83%@100% load, 84%@50% load | 87%@100% load, 88%@50% load | 87%@100% load, 89%@50% load |
| Noise(1m away) | <43dB@<60%load,<47dB@>60%load | <45dB@<60%load,<50dB@>60%load | <45dB@<60%load,<50dB@>60%load |
| Overload Capability(Inverter) | 105%~130%: Transfer to bypass after 1 mins. |
| 150%: Transfer to bypass after 30s |
| Overload Capability(Battery Mode) | 105%~130%:shutdown after 10s |
| 150%:shutdown after 5s |
| Overload Capability (Bypass Mode) | <130%: Long time |
| >130%&<150%:Shutdown after 10min |
| >150%&<180%:Shutdown after 5 seconds |
| Crest Ratio | 3:1 |
| BATTERY | |
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/7Ah | Depend on the capacity of external batteries |
| Quantity | 3 | 6 | 8 |
| DC Voltage | 36VDC | 72VDC | 96VDC |
| Back-up Time | 6mins @80% load | Depend on the capacity of external batteries | 6mins @80% load | Depend on the capacity of external batteries | 5.5mins @80% load | Depend on the capacity of external batteries |
| Battery-Low Voltage | 33VAC~35VDC depending on load | 66VDC~70VDC depending on load | 88VDC~94VDC depending on load |
| Charger | | |
| -Charging voltage | float:41VDC/boost:42VDC | float:82VDC/boost:84VDC | float:109VDC/boost:112VDC |
| -Charging current (max) | 1A | 8A | 1A | 8A | 1A | 8A |
| -Charging time | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
| Leakage current | <1mA | <1mA | <1mA |
| INDICATOR & ALARM | |
| -Display | LED+LCD |
| -Alarm | two short one long |
| -Fault | Continuous beeping |
| INTERFACE | |
| -Smart RS232 | Standard Cable support INVT Power Monitor Software |
| -SNMP(option) | Power Managment from SNMP Manager and Web Browser |
| OPTION | |
| -Intelligent Kits | DB9 port, dry contact |
| -USB | B-type USB port |
| -SNMP Kits | pluggable type |
| MECHANICAL | |
| -W*D*H (mm) | 144*353*222 | 190*374*336 | 190*426*336 |
| -W*D*H (mm)(shipment) | 240*448*320 | 285*470*420 | 285*521*420 |
| -Net Weight (KG) | 12 | 6 | 21 | 10.5 | 25.6 | 11.5 |
| -Package Weight(KG) | 13 | 7 | 22 | 12 | 27 | 13 |
| Color | Black default
|
