| Prod Model: |
HT1110XL |
| Capacity: |
10kVA |
| Cold Start: |
Default Output Frequency Will Be 50Hz or Settable |
| Line Low Transfer: |
110VAC |
| -Line Low Recovery: |
121VAC |
| Line High Transfer: |
288VAC |
| Line High Recovery: |
281VAC |
| USB: |
B-Type USB Port |
| Rating/Type: |
Depend on The Capacity of External Batteries |
| P.F: |
1 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Invt |
Product Description
FeaturesHigh efficiency, up to 95% kVA=kW, Output PF=1
3 level of technology, compatible with complicated load
Self-aging function
Intelligent digital charging management,maximum charger current up to 12A
Smaller size with higher power density Parallel up to 8 units

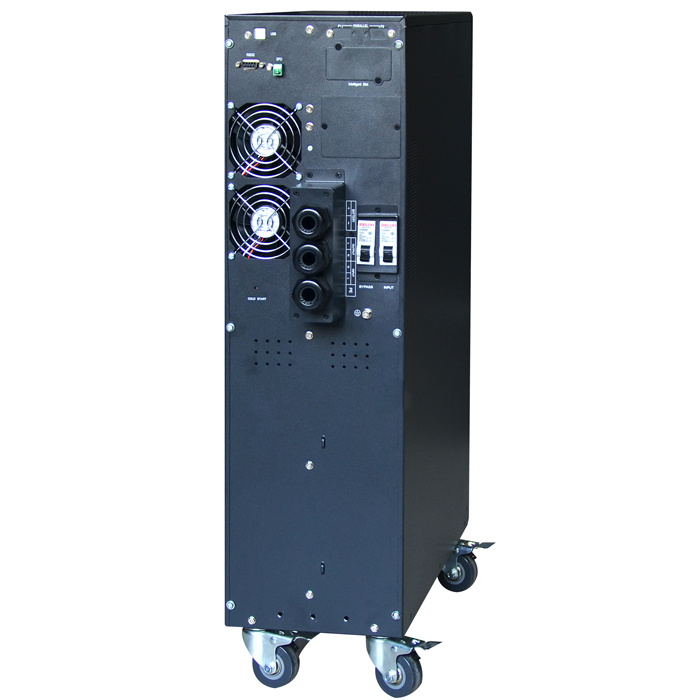

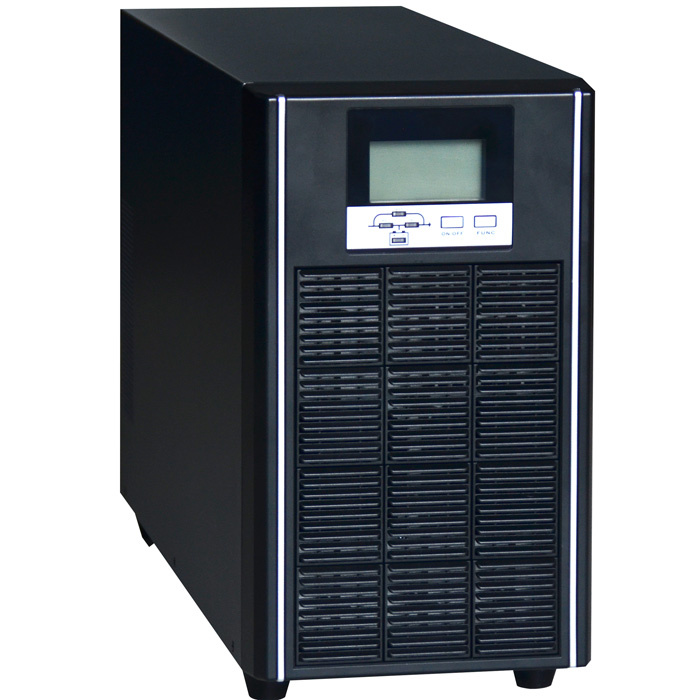

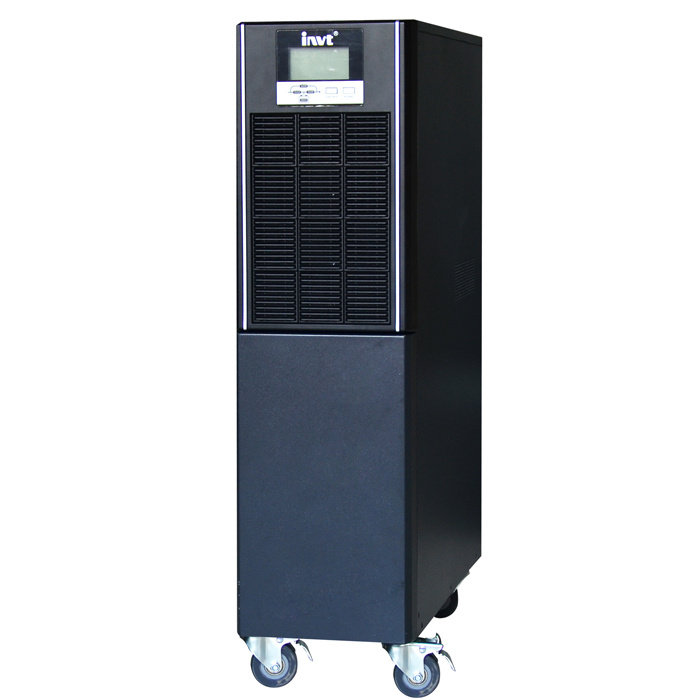

HT11 series, ranging from 6KVA to 10KVA, is double conversion online UPS with fully DSP controlled technology. The single phase UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high power density (kW=kVA), HT11 series make it ideal choice for computers, telecommunication equipment and other sensitive devices.
Specifications HT1106XS | HT1106XL | HT1110XS | HT1110XL |
INPUT |
Cold Start | YES
Default output frequency will be 50Hz or settable |
Acceptable Input Voltage | 110VAC~288VAC |
| 100% load@>176VAC |
90% load@>154VAC |
75% load@>132VAC |
50% load@>110VAC |
Phase | Single phase in,single phase out |
Transfer Voltage Range | 200VAC/208VAC(0.9), 220VAC/230VAC/240VAC(1) |
-Line low transfer | 110VAC |
-Line low recovery | 121VAC |
-Line high transfer | 288VAC |
-Line high recovery | 281VAC |
Input Current |
-Rating(nominal input voltage) | 30A/220V | 34A/220V | 49A/220V | 53A/220V |
Input Power Factor | ≥0.99 |
Input current distortion | <4% |
Input Frequency Range | 40~70Hz |
OUTPUT |
Frequency adaptable | Settable |
Power | |
-Power | 6KVA | 10KVA |
-Power(kW) | 6KW | 10KW |
Output Voltage | |
-Waveform(Bat. Mode) | Pure Sine Wave |
-Nominal voltage | 220VAC/230VAC/240VAC, 200VAC/208VAC(PF=0.9) |
-Voltage regulation | ± 1 % |
-Voltage distortion | ≤1% THD, linear load |
≤ 5% THD, non linear load |
Output Frequency | |
-Synchronization range | ±5Hz default, settable |
-Battery mode | (50±0.1) Hz default |
Transfer Time |
-Line mode to battery mode | 0ms |
-Inverter to bypass | 0ms |
Efficiency |
-Line mode with battery full charged | 94%@100% load, 94.5%@60% load | 94.6%@100% load, 95%@60% load |
-ECO mode | 99.0% |
Noise(1m away) | <58dB |
Overload Capability(Inverter) | 105% to 110% : Transfer to bypass after 10 mins. |
111% to 125% : Transfer to bypass after 1 mins. |
126% to 150%: Transfer to bypass after 30s |
Overload Capability (Bypass Mode) | less than 125%: long time running |
126% to 130% :Shutdown in 5 mins |
131% to 150% :Shutdown in 1 mins |
> 150% :Shutdown in 200 ms |
Crest Ratio | 3:1 |
BATTERY |
Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/9Ah | Depend on the capacity of external batteries |
Quantity | 16PCS default, 20PCS settable | 16-24PCS settable | 16PCS default, 20PCS settable | 16-24PCS settable |
DC Voltage | 192VDC default, settable |
Back-up Time | 3mins @5kW | Depend on the capacity of external batteries | 2mins @8kW | Depend on the capacity of external batteries |
Charger |
-Charging current (max) | 1A, settable | 5A max,settable | 1A,settable | 5A max,settable |
-Float Charging Voltage | 2.25V/cell default, setttable via software |
-Boost Charging Voltage | 2.25V/cell default, setttable via software |
-Charging time | 8h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries |
Leakage current | <3mA |
Indicator & Alarm |
-Display | LED+LCD |
Inteface |
-Smart RS232 | Standard Cable support INVT Power Monitor Software |
-EPO | NC |
-RS485(option) | Installed in the intelligent slot |
-SNMP(option) | Power Managment from SNMP Manager and Web Browser |
Option |
-Intelligent Kits | DB9 port, dry contact |
-parallel | 4 units paralleled |
-Super charger (12A) | digitally controlled, 4-steps charge, settable |
-USB | B-type USB port |
-SNMP Kits | Pluggable type |
Mechanical |
-W*D*H (mm) | 190*426*705 | 190*426*336 | 190*485*705 | 190*485*336 |
-Net Weight (KG) | 56 | 14 | 60 | 16 |
-Package Weight (KG) | 60 | 16 | 65 | 18 |
-Rack / Tower | Tower |
Color |
| | | | |
FUNCTION | Compatible with half wave load | |
Main input breaker |
Bypass input breaker |
ECO mode |
Battery cabinet |
Self aging |
Digital Charger |
Remained Battery Capacity |
HT11 series, ranging from 6KVA to 10KVA, is double conversion online UPS with fully DSP controlled technology. The single phase UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high power density (kW=kVA), HT11 series make it ideal choice for computers, telecommunication equipment and other sensitive devices.
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
