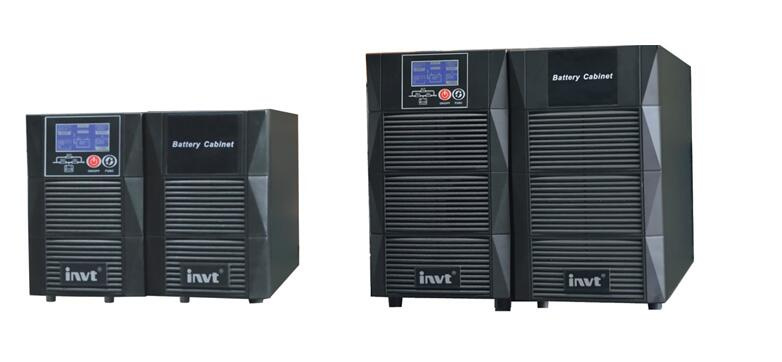

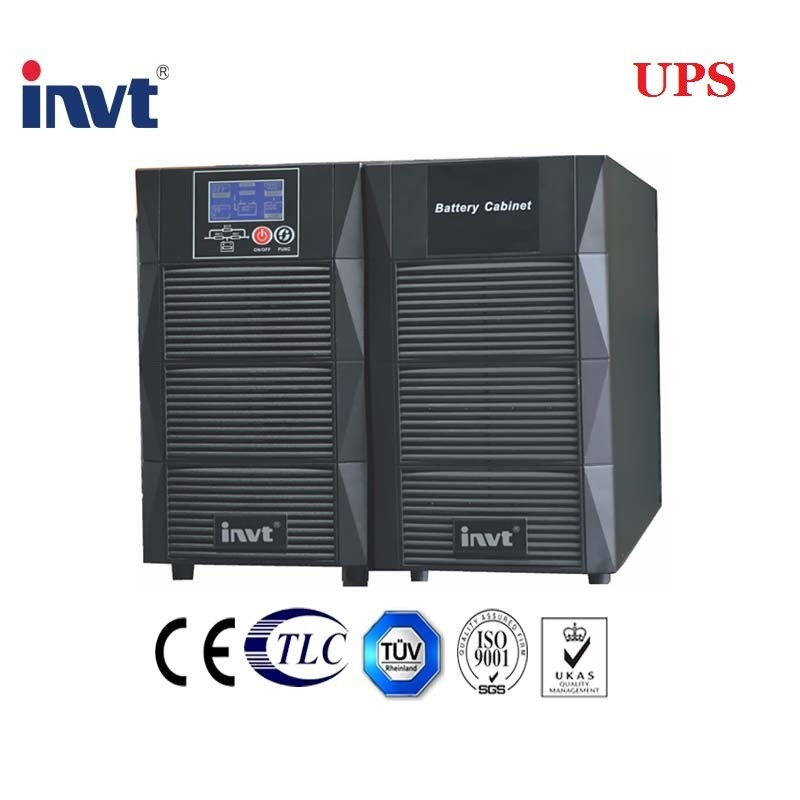

Ht11 Series Tower Online UPS (HT1103L II)

Name: Ht11 Series Tower Online UPS (HT1103L II)
Brand: all-electronics-online.com
SKU: 828480445
Availability: InStock
Rating: 4.6 (138 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT1103L II
Capacity:	3kVA
Input Voltage:	110VAC-288VAC
Input PF:	1
Input Frequency:	40Hz-70Hz
Output PF:	0.8
Output Voltage:	220V/230V/240V
Crest Factor:	3/1
Battery Voltage:	72VDC
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent
Brand:	Invt

Product Description

HT11 series is online double-conversion UPS with full DSP control technology. With high input and output power factor, self- adjusting output frequency and network management, HT11 is a perfect choice for computers, telecommunication equipments
and other sensitive devices.

Application
IDC(Internet Dater Center),network,servers and workstations, control system, communication system, office,PC etc.

Features
Wide range of input voltage while input PF>97%
Output PF of 0.9,more powerful load capability
Full protection of overvoltage, circuit short and over temperature
LCD/LED display, monitoring all the operation status
Auto fan speed adjustment

MODEL	HT1101S		HT1101L	HT1102S	HT1102L	HT1103S	HT1103L
	HT1101S-		HT1101L-	HT1102S-	HT1102L-	HT1103S-	HT1103L-
Capacity	1kVA			2kVA		3kVA
Phase	Single Phase in, Single Phase out
Input voltage	110VAC-288VAC
	100% load@>176VAC; 80% load@>154VAC; 70% load@>132VAC; 50% load@>110VAC
Input PF	≥0.97
Input frequency	40Hz~70Hz
Output PF	0.9
	0.8
Output voltage	220V/230V/240V
Voltage regulation	± 1 %
THDu	THD≤2%(linear)
	THD≤5.5%(non-linear)			THD≤5%(non-linear)		THD≤5%(non-linear)
Crest factor	3:1
Efficiency	87.0%			91.0%		90.0%
Noise	<43dB@<70%Load, <47dB@>70%Load			<45dB@<70%Load, <50dB@>70%Load		<45dB@<70%Load, <50dB@>70%Load
Overload capability	Inverter	105%~130%: to bypass after 1 min; 150%: to bypass after 30 sec
	Battery	105%~130%:shut down after 10 sec; 150%:shut down after 5 sec
Battery voltage	36VDC			72VDC		96VDC
	24VDC			48VDC		72VDC
Battery type/number	12V,7Ah*3		External	12V,7Ah*6	External	12V,7Ah*8	External
	12V,7Ah*2		External	12V,7Ah*4	External	12V,7Ah*6	External
Max charging current	1A		8A	1A	8A	1A	8A
Interface	RS232,EPO
Optional	Intelligent kits, USB(B Type),SNMP, Dry contact
WDH(mm)	144353222			190374336		190426336
	144353222			190374336		190374336
Weight(kg)	10.5		5	21	8.5	24.5	9.5
	10		6	17	11	22	12

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
