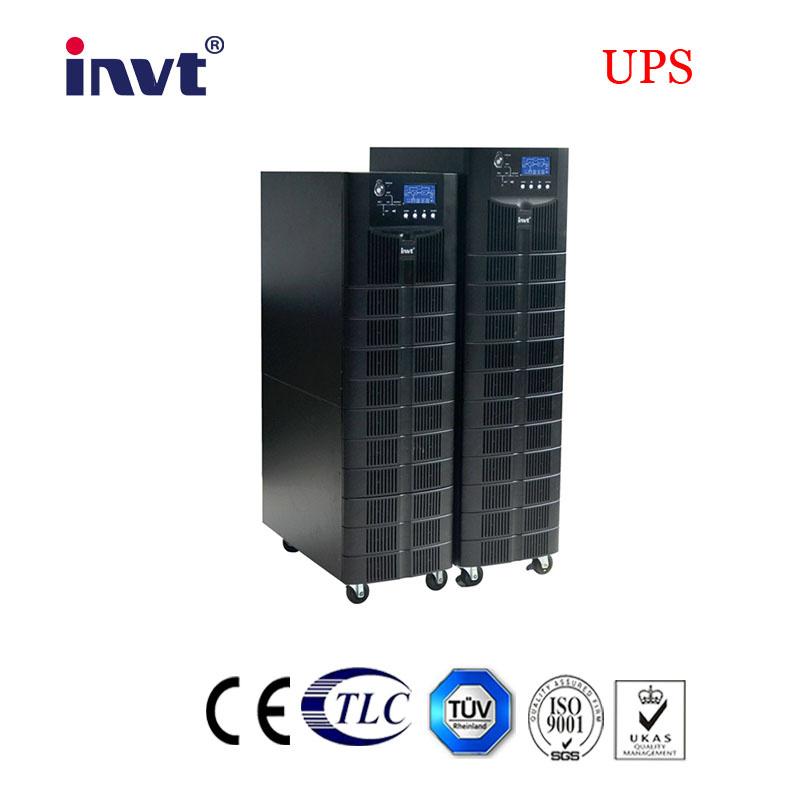

Ht22 Series Tower Online 6-10kVA UPS (HT2206L)

Name: Ht22 Series Tower Online 6-10kVA UPS (HT2206L)
Brand: all-electronics-online.com
SKU: 830848365
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT2206L
Capacity:	6kVA
Input Frequency Range:	40Hz-70Hz
Output PF:	0.8
Output Voltage:	110V/115V/120V/127V
Voltage Regulation:	2%
Battery Voltage:	192VDC
Crest Factor:	3:1
Display:	LED+LCD
Battery Type/Number:	External
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Invt

Product Description

Wide range of input voltage and high input power factor
Output PF of 0.8
Full protection of overvoltage, short-circuit and over temperature
LCD display, monitoring all the operation status
Auto fan speed adjustment
Abundant interface:RS232, USB, SNMP, Intelligent Card

HT22 series is online double-conversion UPS with fully DSP controlled technology. With high input and output power factor, self-adjusting output frequency and network management, HT22 is perfect choice for computers, telecommunication equipments and other sensitive devices.

MODEL	HT2206S	HT2210L
	HT2206L
Capacity	6kVA	10kVA
Phase	Two phase in, Two phase out
Input voltage range	50%-125% (220V/230V/240V)
	100% load@80%-125%; 90% load@70%-80% 80% load@60%-70%; 65% load@50%-60%
Input PF	>0.99
Input frequency range	40Hz-70Hz
Output PF	0.8
Output voltage	110V/115V/120V/127V
Voltage regulation	2%
THDu	<2.5% (full linear load )
Battery voltage	192VDC
Battery type/number	12V, 7Ah*16	External
	External
System efficiency	Normal:>88%; ECO:>93%; Battery:>87%
Noise (1 meter away)	<48dB@<70% load; <58dB@>70% load	<48dB@<70% load; <60dB@>70% load
Overload capability (Inverter mode)	110%: for 10 min; 130%: for 1 min; 150%: for 30 s (shut down the bypass after 1min)
Overload capability (Battery mode)	110%: Shutdown after 10 min; 125%: Shutdown after 10 s; >125%: Shutdown after 1 s
Crest factor	3:1
Display	LED+LCD
Interface	Standard: RS232, EPO Optional: SNMP, USB, Parallel Kit, ECO Kit, Maintenance Bypass, External Battery Cable(standard model), Dry contacts
WDH (mm)	250504945	250562885
	250504945
Weight (kg)	104	78

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
