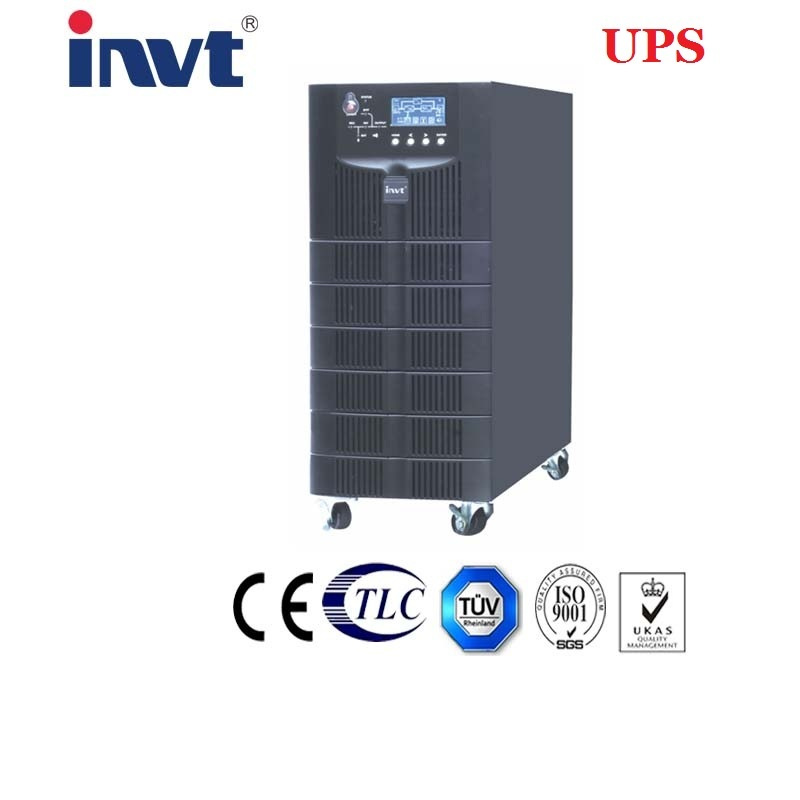

Ht33 Series 10kVA UPS Tower Online (HT33010XL)

Name: Ht33 Series 10kVA UPS Tower Online (HT33010XL)
Brand: all-electronics-online.com
SKU: 832328375
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT33010XL
High Efficiency:	up to 96%
High Input PF:	1
Output Voltage:	380/400/415VAC (Line-Line)
Display:	LCD+LED+Keyboard
Interface:	Standard: RS232, RS485,Dual Input Kit,Option: Sn;
Operation Temperature:	0-40
Battery Voltage:	240VDC
Battery Voltage Precision:	1%
Certification:	Ceiso9001/TUV/ISO9001:2008/ISO1400`:2004
Phase:	Three Phase
Type:	On-line
Protection:	Lightning
Brand:	Invt

Product Description

HT33 series UPS applies advanced technology that increases performance and reliability: two high speed DSPs with completed digital control to ensure high quality of power supply, high input power factor and low input current distortion.

Application
IDC(Internet Data center),ISP,Computer Room, Service Center
Precision instruments,Intelligent equipments

Features
High efficiency, up to 96%
High input PF>0.99;Input current THDi<4%
Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit
Four circuit breakers, providing full protection when fault happens
Battery cold start
Battery management with smart charging control, greatly extend the battery life
Parallel up to 8 units
Friendly operation interface, high-resolution LCD screen

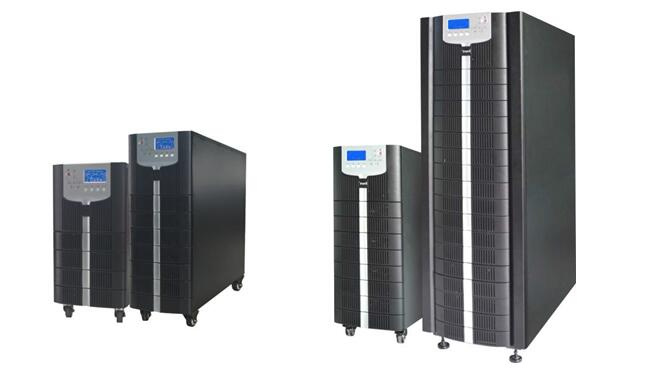

MODEL		HT33010XS	HT33015XS	HT33020XS	HT33030XS	HT33040XS
		HT33010XL	HT33015XL	HT33020XL	HT33030XL	HT33040XL
Capacity		10kVA	15kVA	20kVA	30kVA	40kVA
INPUT
Phase		3Ph+N+PE,380V/400V/415V(line-line)
Voltage range		304-478Vac (line-line),full load; 228V-304Vac (line-line),load decrease linearly according to the min phase voltage
Frequency range		40-70Hz
THDi		<4%		<3%
Power factor		>0.99
OUTPUT
Voltage		380/400/415VAC (line-line)
Voltage regulation		1.5%
THDu		<1% (linear load),<5.5% (non-linear load)
Power factor		1.0		0.9
Frequency range		50/60Hz
Frequency precision		0.01%
Overload capability		110% for 60 min; 125% for 10 min;150% for 1 min;>150% for 200 ms
BATTERY
Voltage		±240VDC
Charge power		20%*System Power
Voltage precision		1%
SYSTEM
System efficiency	Normal Battery	95%		95%		96%
		94.5%		95%		96%
Display		LCD + LED + Keyboard
IP Class		IP20
Interface		Standard: RS232, RS485,Dual input kit; Option: SNMP, Dry contacts, Parallel kit, Battery cold start
Operation temperature		0-40ºC
Relative humidity		0-95%(non-condensing)
Noise		<55dB (1 meter away)
PHYSICAL
Weight(kg)		51.5	51.5	89	89	140
		31	31	50	52	61
Dimension (WDH)(mm)		250840715	250840715	3507381335	3507381335	5008401400
		250660530	250660530	250680770	250680770	250836770

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
