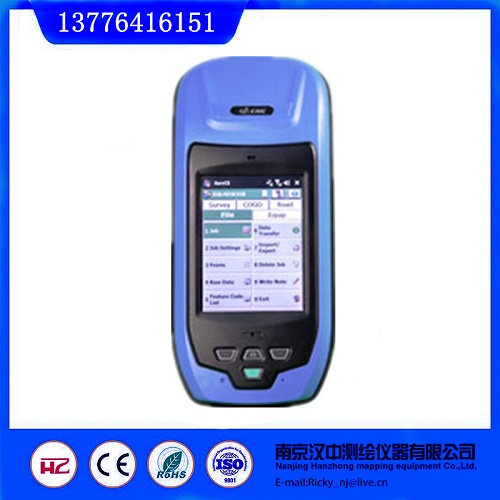

Huace Lt400HS Gnss

Name: Huace Lt400HS Gnss
Brand: all-electronics-online.com
SKU: 795962185
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT400HS
Update Rate:	1Hz
Weight:	575 G
Type:	GPS Receiver
Use:	Hand Held
Screen Size:	3.7inch
Brand:	Huace

Product Description

GNSS characteristics
120-channel signal tracking
- GPS	L1, L2, L2C
- GLONASS	L1, L2
- SBAS	WAAS, EGNOS, MSAS
Update rate	1Hz
Time to first fix(1)	< 45 s (typical)
External antenna support

Performance specifications(1)
Autonomous	< 2 m RMS
SBAS real-time accuracy	< 1 m RMS
Network RTK
- Horizontal (external antenna)	2 cm + 1 ppm
- Horizontal (internal antenna)	< 10 cm + 2 ppm
- Initialization time	< 30 s
- Initialization reliability:	> 99.9%

System configuration
Windows Mobile 6.5 operating system
3.7" VGA transflective sunlight readable screen.
Resolution	480×640 pixel
Processor speed	806 MHz
Memory	- Internal 1 GB storage
	- External TF card slot, 4 GB as standard (up to 16 GB)
5.0 mega pixel autofocus camera

Communications
Internal GSM/GPRS modem 850/900/1800/1900 Mhz
Bluetooth class 2, version 2.1+ EDR protocol
1x USB port
Built-in microphone
Built-in Wi-Fi	802.11 b/g
SIM socket
Data I/O protocol

Physical
Size (LxWxH)	210 x 95 x 45 mm (8.3 x 3.7 x 1.8 in)
Weight	575 g with battery (20.3 oz)
Operating temperature	-30 °C to +65 °C (-22°F to 149°F)
Storage temperature	-45 °C to +75°C (-49°F to 167°F)
Waterproof and dust proof	IP65
Shock	survives a 1.2 meter drop on to concrete

Electrical
Li-ion battery capacity	6800 mAh @ 3.7V
Battery life	typical 8 hours with GNSS on
Charging power	5 VDC via USB charger

Accessories (Optional)
Precision Kit	External geodetic GNSS antenna
	2m pole
	Pole bracket
	GPS antenna cable
	Transport hard case

Software (Optional)
Carlson's SurvCE version 3
DigiTerra Explorer 7 Professional Edition

(1) Accuracy and reliability specifications may be affected by multi path, satellite geometry and atmospheric conditions. Performances assume minimum of 5 satellites, follow up of recommended general GPS practices. Specifications are subject to change without notice.
