Huawei R4815g1 48V 15A 870W Rectifier Module

Huawei R4815g1 48V 15A 870W Rectifier Module
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: R4815G1
Output Voltage: 53.5VDC
Output Voltage Range: 42 to 58 V DC
Output Current: 15A
Output Power1: 870W
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Input Voltage: 220V
Starting Mode: Separate-excited Switching Power Supply
Power Supplying System: Terminal Power Distribution Equipment
Certification: FCC
Connection Mode: Plug Into System
Voltage Regulating Mode: Switch Power Supply
Brand: Emerson

Product Description

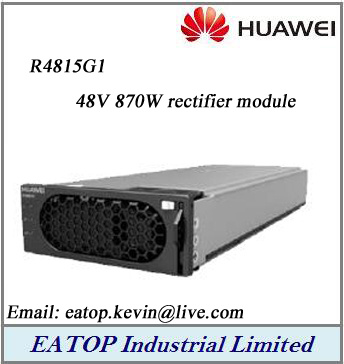

HUAWEI R4815G1 48V 15A 870W rectifier module

R4815G1 Short Brief:

The R4815G1 is a digital rectifier that converts the 85~300VAC input to 53.5 VDC output and possesses the characters of high efficiency, walk-in start, hotplug, complete protection, and no audible noise. The rectifier adopts the latest power monitoring technology, implements the function of monitoring the states of loads and the rectifier status in real time. The output voltage of the rectifier can be adjusted through the host.

48V 870W Rectifier Features:

1) High efficiency: ≥96%
2) Input voltage range: 85~300VAC

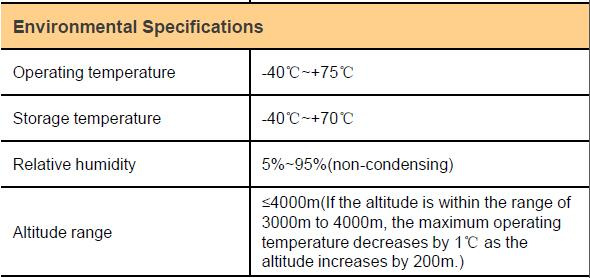

3) Operating temperature range: -40~+75ºC
4) Total harmonic distortion(THD): ≤5%
5) Hot-plug
6)  Digital control
7)  Intelligent electric meter
8)  Communication over CAN
9)  Adjustment of voltage and current
10)  Meet RoHS requirements

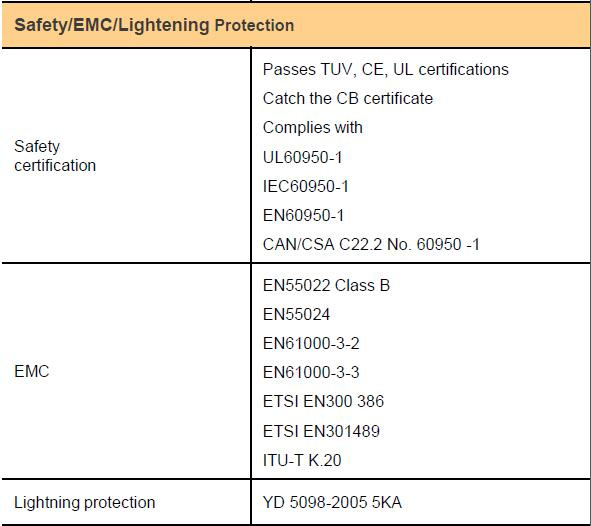

11)  Passing the TUV,CE,CB,UL certifications

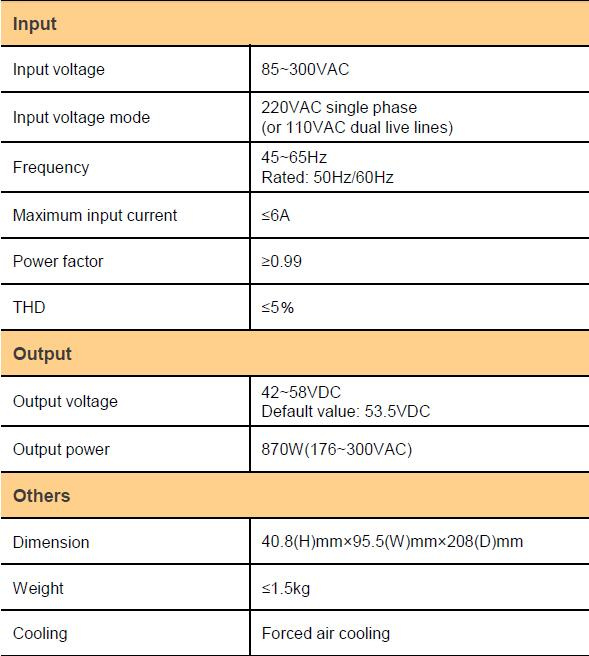

HUAWEI R4815G1 5A rectifier Specification:

















R4815G1 Weight: 1.5kg
Dimensions: 40.8 x 95.5 x 208mm

R4815G1
HUAWEI R4815G1 48V 15A 870W rectifier module



Notes:
1. We will ship the item in 3-5 work days after the payment arrive.
2. We will usually ship the item to Worldwide by FedEx/ UPS/DHL.
3. Buyer's responsibility to pay customs fees, duties, import taxes, shipping charge
And related charges.
4. We accept the payment through T/T, Paypal, and Western Union.
5. The pictures show you one of the items in stock. But the exact one may be sold before your bidding. So it may not the exact one which you will recieve.
EATOP Industrial Limited offers a high quality and high reliability AC/DC and DC/DC power supplies. We specialize in low to MID-range power (1 - 600 watts), also Industrial, Telecom, Rectifier Module and Healthcare Power Supplies from 1W-4000 Watts.

Our Switch Mode AC/DC line consists of Desktop and Wall mount adaptors, as well as Metal Enclosed and Open Frame type power supplies with wide range Universal inputs of 85VAC to 264VAC.

Our DC/DC line consists of Output Power Range of 5 watts to 600 watts with input ranges of wide Range input (2: 1) as well as Ultra Wide Range Input (4: 1)

If you have any projects that are in need for AC/DC switching power supplies and/or DC/DC converters, we would be happy to supply you with a quote.
