Huawei R4850g1 48V 3000W Rectifier Module

Huawei R4850g1 48V 3000W Rectifier Module
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: R4850G1
Output Voltage: 53.5VDC
Output Voltage Range: 42 to 58 V DC
Output Current: 50A
Output Power1: 3000W
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Input Voltage: 220V
Starting Mode: Separate-excited Switching Power Supply
Power Supplying System: Terminal Power Distribution Equipment
Certification: FCC
Connection Mode: Plug Into System
Voltage Regulating Mode: Switch Power Supply
Brand: Emerson

Product Description

HUAWEI R4850G1 48V 3000W rectifier module

R4850G1 Short Brief:

The R48100G1 is a digital control 3-phase rectifier with the maximum output power being 6000W. It converts 260~530VAC input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the host. It performs comprehensive protection functions, supports soft start, and produces low noise. With the latest power monitoring technology, states of the rectifier and load are monitored in real time. Multiple rectifiers can be paralleled.

48V 3000W Rectifier Features:

1) High efficiency: ≥96%
2) Input voltage range: 85~300VAC

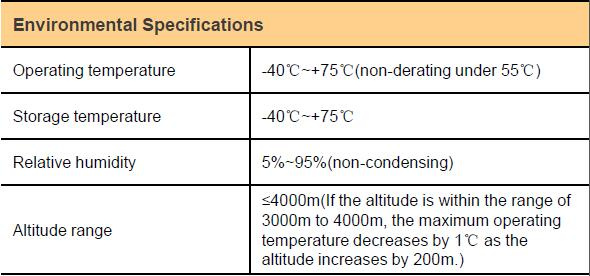

3) Operating temperature range: -40ºC~75ºC
4) Total harmonic distortion(THD): ≤5%
5) Hot-plug
6) Digital control
7) Intelligent electric meter
8) Communication over RS485
9) Adjustment of voltage and current
10) Meet RoHS requirements

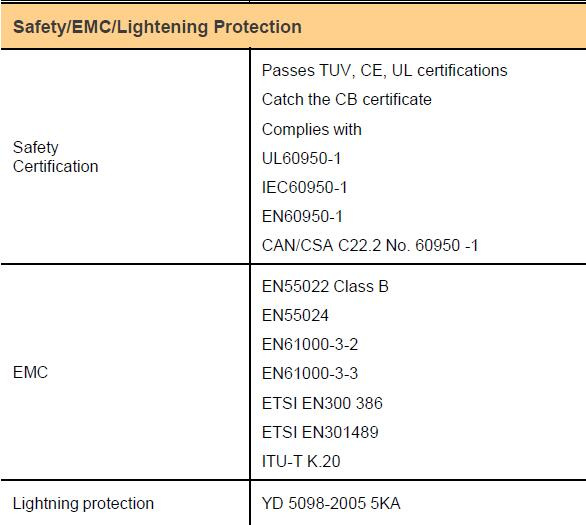

11) Passing the TUV,CE,CB,UL certifications

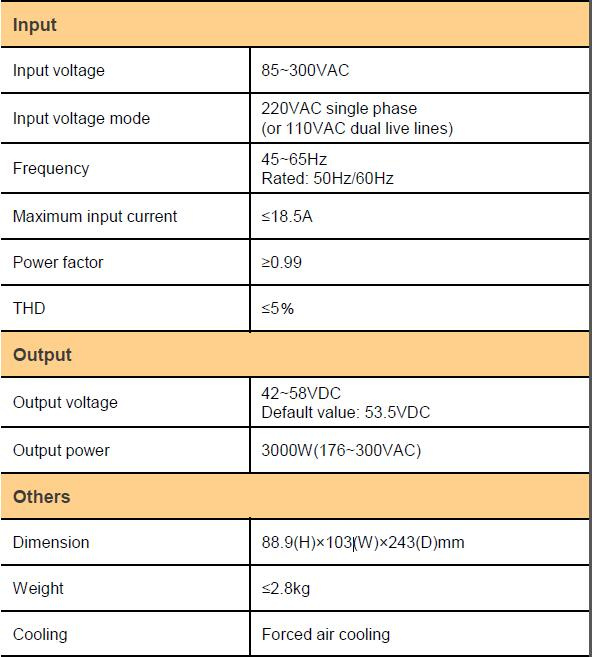

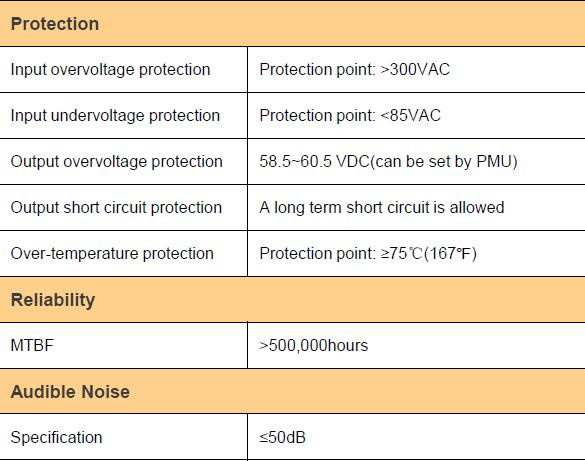

HUAWEI R4850G1 50A rectifier Specification:















R4850G1 Weight: 2.8kg
Dimensions: 88.9 x 103 x 243mm

R4850G1
HUAWEI R4850G1 48V 3000W rectifier module
