HUAYUAN M-550 MINI Size UHF RFID Integrated Reader Module
| Price: |
US $ 65-113/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
M-550 RFID Integrated Reader Module |
| Markets: |
North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
| Item: |
M-550 UHF RFID Integrated Module |
| Input Voltage: |
DC 3.5V-5 V |
| Starting Time: |
<80mS |
| Operating Temperature: |
- 20 °C - + 70 °C |
| Storage Temperature: |
- 20 °C - + 85 °C |
| Air Interface Protocol: |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Spectrum Range: |
902MHz -928MHz, 865MHz - 868MHz(Optional) |
| Output Power: |
18-26 dBm |
| RF Connector: |
I-PEX |
| Host Communication: |
TTL UART port |
| Card Type: |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Interface: |
TTL UART port |
Product Description

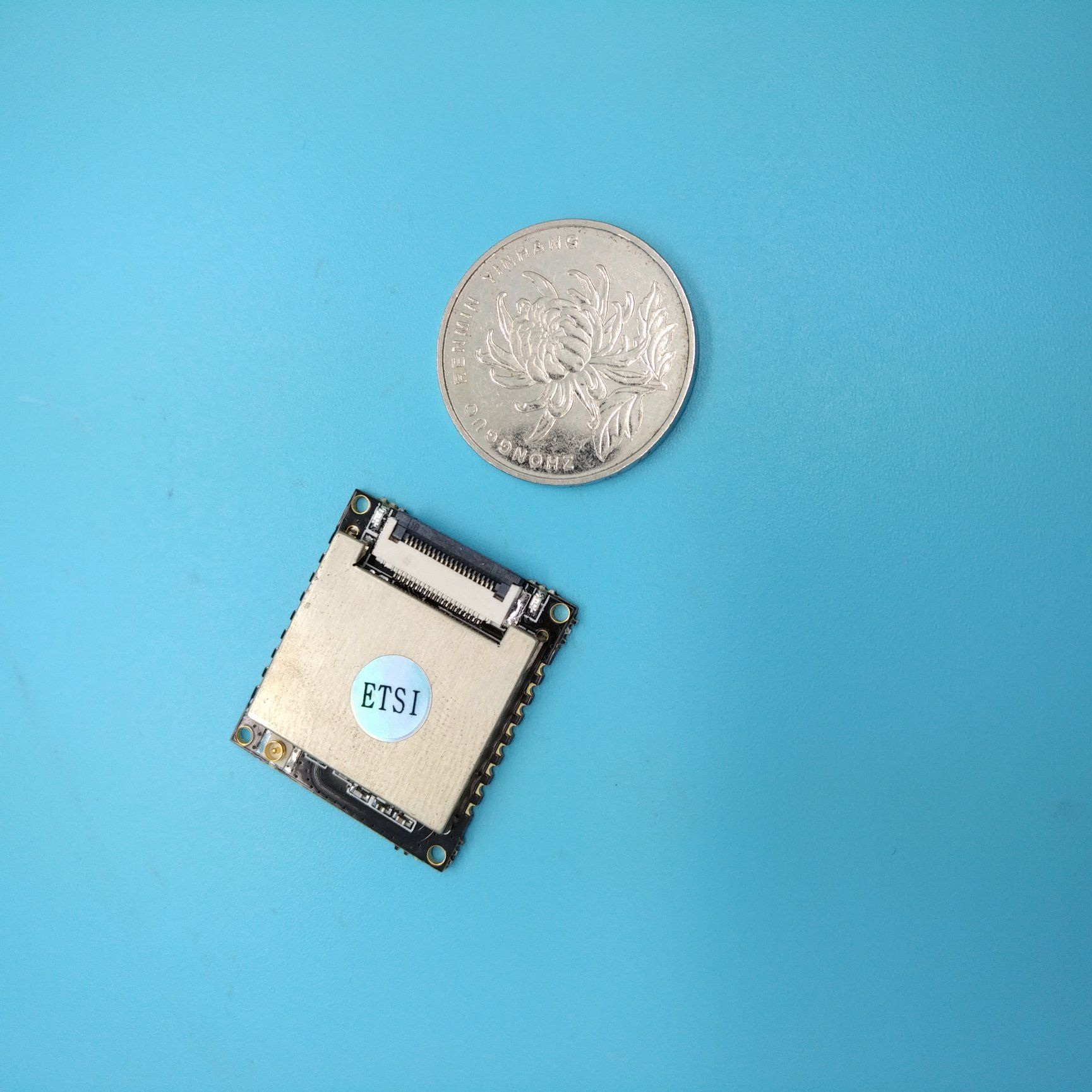

HUAYUAN M-550 MINI Size EPC global UHF RFID Integrated Reader Module
1 M-550 UHF RFID Integrated Module Advantages:
- PHY Chips PR9200 inside with outstanding performance and cost-effective.
- Read distance with 3m above. (Tested with Impinj E41b inlay and 2dbi Antenna)
- Stable performance with less affected by rising temperature.
- Super low power consumption; no additional cooling devices required.
- Good consistency in terms of RF parameters.
- Simple peripheral circuit design(refer to 4-1: circuit design reference)
- Full compatible with different communication interfaces of HUAYUAN INDY R2000 series products.
2.M-550 UHF RFID Integrated Module Electrical Characteristics
| Input Voltage | DC 3.5V - 5 V |
| Standby Mode Current | <80mA (EN High Level) |
| Sleep Mode Current | <100uA (EN Low Level) |
| Operating Current | 180mA @ 3.5V (26 dBm Output,25°C). |
| 110mA @ 3.5V (18 dBm Output,25°C). |
| Starting Time | <80mS |
| Operating Temperature | - 20 °C - + 70 °C |
| Storage Temperature | - 20 °C - + 85 °C |
| Operating Humidity | < 95% ( + 25 °C) |
| Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Spectrum Range | 902Mhz - 928Mhz, 865MHz - 868MHz(Optional) |
| Supported Regions | US, Canada and other regions following U.S. FCC |
| Europe and other regions following ETSI EN 302 208 |
| Mainland China |
| Japan |
| Korea |
| Malaysia |
| Taiwan |
| Output Power | 18-26 dBm |
| RF Connector | I-PEX |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -70dBm |
| Peak Inventory Speed | > 50 tags/ sec |
| Tag Buffer Size | 200 tags @ 96 bit EPC |
| Tag RSSI | supported |
| Host Communication | TTL UART port |
| GPIO | 2 input 2 output (3.3V TTL Level) |
| Baud Rate | 115200 bps(default and recommended) |
| 38400bps |
| Cooling | no additional cooling devices required |

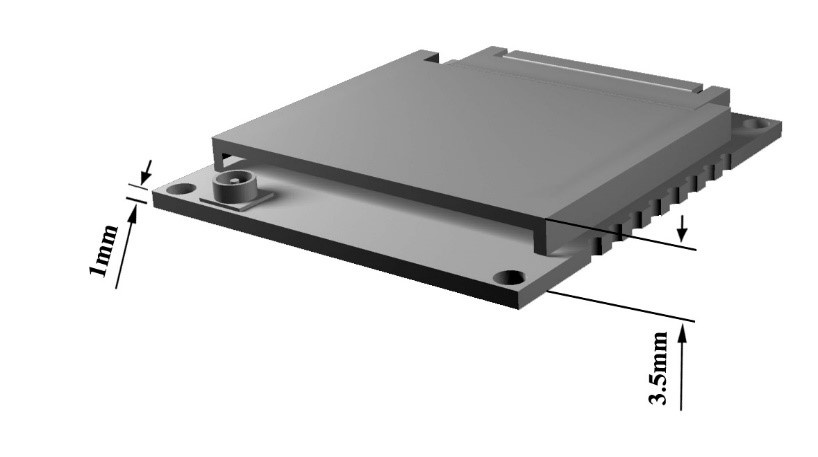

3.Structure Dimensions
