| Prod Model: |
MFOF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
500VDC~15000VDC |
| Operating Temperature: |
-40°c~+85°c |
| Capacitor Deviation: |
±5% ±10% |
| Capacitor Case: |
Aluminum/Plastic/304 Stainless Steel |
| Capacitor Standards: |
IEC61071;IEC61881 |
| Certificate: |
RoHS/CQC/UL/VDE/SGS/TUV/ISO9001 |
| Item: |

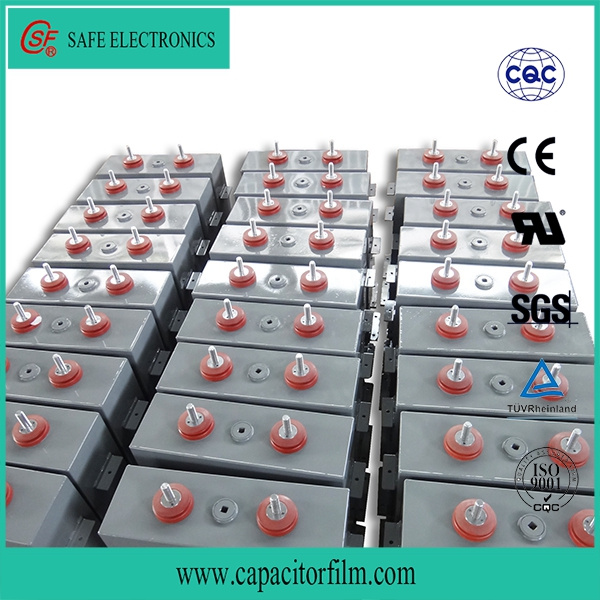

DC-Link Oil Type Filter Capacitor1200VDC 1500UF |
| Voltage: |
800~12000VDC |
| Temperature: |
-40~+85c |
| Type: |
Polypropylene Capacitor |
| Application: |
Inverter Welder, Rail Traffic Traction, Ship Drive |
| Package Type: |
Through Hole |
| Capacitance: |
150UF~7200UF |
| Manufacturing Material: |
Polypropylene Film |
| Electrolyte: |
Polypropylene |
| Usage: |
Inverter Welder, Rail Traffic Traction, Ship Drive |
Product Description
Specification
| Temperature Range | -40°C~+85°C |
| Capacity Range | 100μF~12000μF |
| Capacitance deviation | ±5%(J),±10%(K) |
| Voltage | 500VDC~15000VDC |
| Dielectric | 1.5UN/60S |
| Dissipation | tgδ≤0.002(at 1KHz) |
| Insulation resistance | CxRs≥5000S(at20°C 100V.DC 60S) |
| Shock current capability | dv/dt>50v/μs |
| Flammability | UL94V-0 |
| Stray inductance | ≤30nH |
| Effective Current | 10~80A |
| Reference Standard | Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 |
| Case components | aluminum,plastic,304 stanless steel |
| Terminals | tinned brass nut or screws |
| Installation | whatever installation |
| Failure rate | 50 FIT |
Note: other specifications and size out of the table are negotiable.
Energy storage capacitor features:
1.Specific can density, capacitors energy storage is strong
2.Low ESR, high ripple current handling capabilities and Large current shock
3.Low Inductance, Dv/dt large, frequency characteristics is good.
4.Self-healing property
5.Long lifetime(≥100000h)
6.vacuum note oil, heat dissipation of capacitor performance is stable and reliable
7.Huge capacitance
8.thermal conductivity
Energy storage capacitor applications:
Used for rail traffic traction or the ship drive converter.
Used for various power industry inverter, such as high voltage variable frequency drive device
Used for the harmonic management, SVG equipment.
1.Metallized polypropylene film convolute, special internal structure and non-inductive structure. Copper screw leads, fire-retardant plastic shell, or heat tape wrapped, epoxy resin sealed.
2.High frequency low ESR, can stand strong current, a very small parasitic inductance.
3. Suit inverter current, continuous current, switching power supply, high frequency welding machine and others high capacity resonant circuit.
