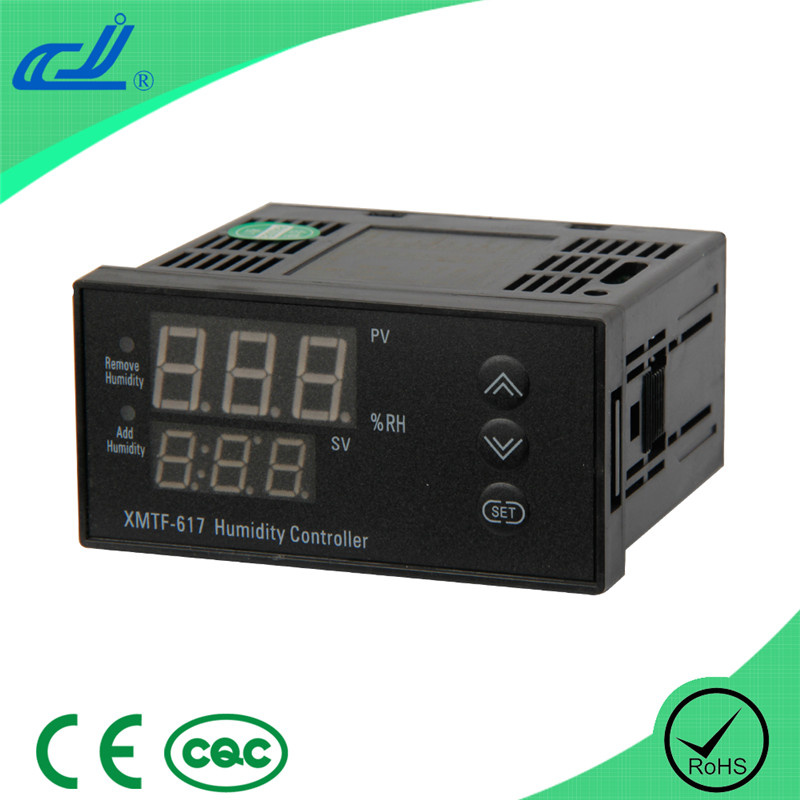

Humidity Controller with Humidity Sensor (XMTF-617)

Name: Humidity Controller with Humidity Sensor (XMTF-617)
Brand: all-electronics-online.com
SKU: 684338061
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 38.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Humidity Controller
Size:	96*48
Control Type:	Digital
Control Method:	Electronic Type
Type:	Humidity Controller
Usage:	Humidity Control

Product Description

XMT*607 series controller is dual row 3-LEDdisplay, to display the measured value and set value. It is operated with 3-keys, and the available control methods include on/off, PID control, with easy parameter setting and information inputting.

Main technical Indexes
1. Control Precision: ± 2%F@S
2. Measurement range: 5%~100%RH
3. Display precision: 0.1%RH
4. Input: Macromolecule
5. Relay output(passive) contact capacity: AC250V 5A (resistance load)
6. Driving solid relay signal output: Driving electric current >15mA floating voltage>12V, period is 2S
7. Working power: AC220V Power consumption<3W
8. Working environment: 0~50, relative humidity≤ 85%, without corrode and strong electric radiation
9. External dimension(mm): 96× 48× 75 Installation hole 92× 44

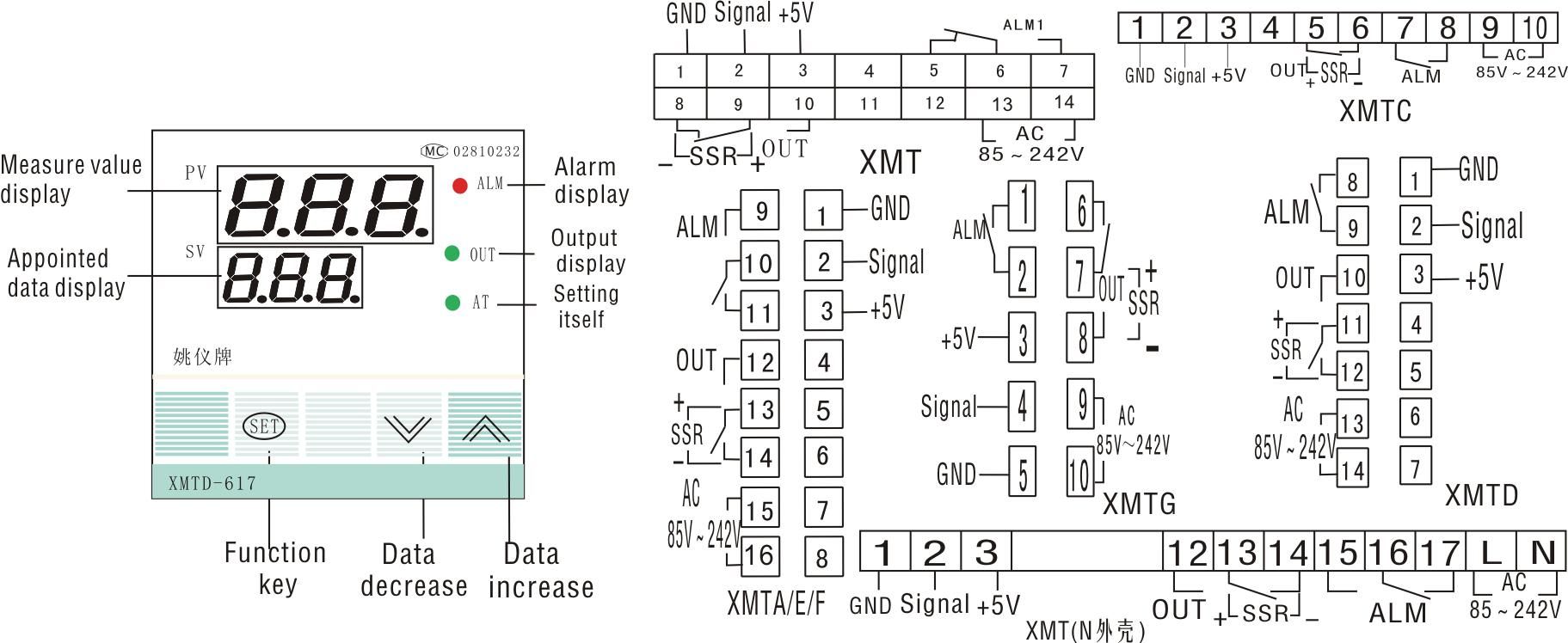

The meter panel and connection scheme(consult)

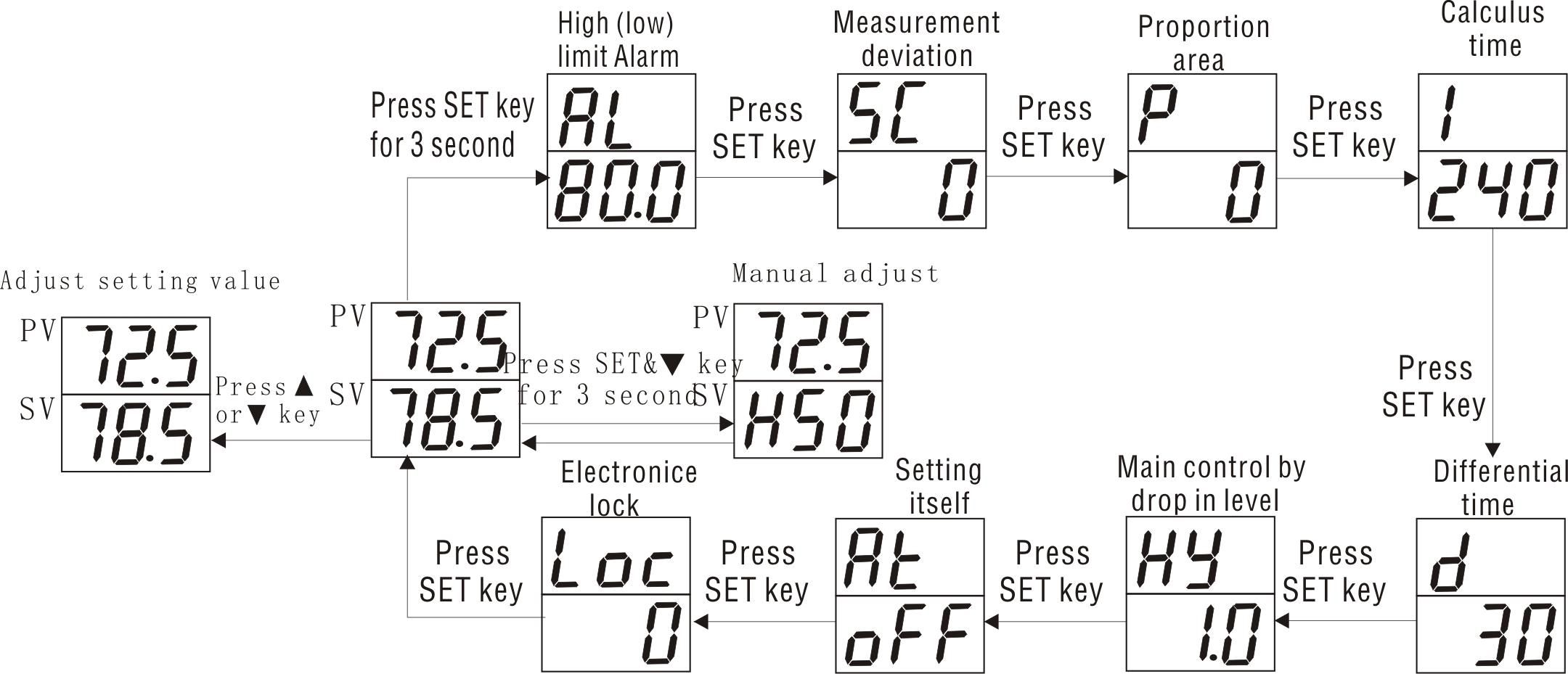

Flow chart

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
