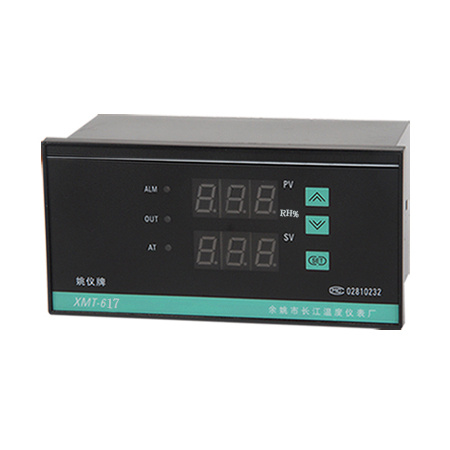

Humidity Controller with LED Display (XMT-617)

Name: Humidity Controller with LED Display (XMT-617)
Brand: all-electronics-online.com
SKU: 681614075
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 38.8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT-617
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	160*80
Control Type:	Digital
Control Method:	Electronic Type
Type:	Humidity Controller
Usage:	Humidity Control

Product Description

XMT*607 series controller is dual row 3-LEDdisplay, to display the measured value and set value. It is operated with 3-keys, and the available control methods include on/off, PID control, with easy parameter setting and information inputting.

Main technical Indexes
1. Control Precision: ± 2%F@S
2. Measurement range: 5%~100%RH
3. Display precision: 0.1%RH
4. Input: Macromolecule
5. Relay output(passive) contact capacity: AC250V 5A (resistance load)
6. Driving solid relay signal output: Driving electric current >15mA floating voltage>12V, period is 2S
7. Working power: AC220V Power consumption<3W
8. Working environment: 0~50, relative humidity≤ 85%, without corrode and strong electric radiation
9. External dimensions(mm): 160*80*82 156*76

The meter panel and connection scheme(consult)

Inner parameter

Series	Attention	Name	Range	Remark	Ex-Factory
0	-	Setting value of humidity	0~100	Pressor3 second and set the humidity point you need	-
1	AL	High (low) limit Alarm	0~100	The contact conversion output when it exceed alarm point ,and the alarm light is brighten(this conversion output only when it has alarm function)	Random
2	SC	Measurement deviation	-20.0~20.0	Measuring value can be modified through increasing or decreasing this data.	0
3	P	Proportion area	0~99.9~200	When the P↑, the proportion and differential function; If the P, the proportion and differential function↓. When P=0,the meter is ON/OFF	0
4	I	Calculus time	0~999	It's used to adjust static difference. To increase it, the static difference will Be reduced, but when it is too high, the static difference will drift instability.	240
5	d	Differential time	0~200	Set differential time,to avoid output fluctuate.	30
6	t	Control period	2~120S	SSR is 2s;Relay is 10s	-
7	Hy	Main control by drop in level	0.1~50.0	It has only control at ON/OFF	1.0
8	Loc	Electronics lock	0~50	=0 all the parameter can be revised =1 only the setting value can be revised	0

Flow chart
