Hv 120kn Disc Insulator Suspension Glass Insulator

Name: Hv 120kn Disc Insulator Suspension Glass Insulator
Brand: all-electronics-online.com
SKU: 825169085
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U120B
Application:	High-temperature
Structure:	Suspension Insulator
Material:	Glass
Type:	Glass Insulator
Size Of Bearing Capacity:	120kn
Color:	Transparent
Brand:	L&R

Product Description

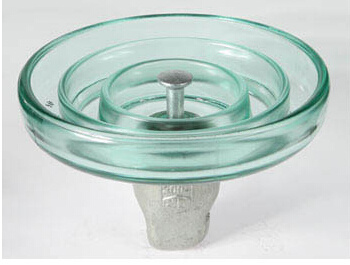

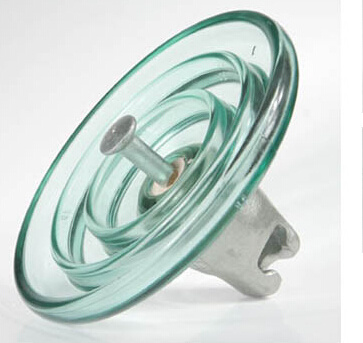

HV 120kn disc insulator suspension glass insulator

Designed for isolating and fixing the wire sand ground wire of overhead transfmission lines, in switchgear
power stations and AC substations with voltage more than 1000V and frequency up to 100HZ, at an ambient
temperature from -60° to +50ºC.

Product description:

Currency designation	U70BP/146M	U100BP/127M	U120BP/127M	U120BP/146M
Designation	LXAP-70	LXAP-100	LXAP1-120	LXAP-120
(mm)Diameter D	380	380	380	380
(mm)Spacing H	146	146	127	146
(mm)Creepage L	365	365	365	365
(mm)Socket soupling	16	16	16	16
(KN)Mechanical failing Load	70	100	120	120
(KN)Mechanical routine test	35	50	60	60
(KV)Wet Power frequency withstand voltage	45	45	45	45
(KV)Dry lighting impulse withstand voltage	90	90	90	90
(P.U)Impulse puncture voltage	2.8	2.8	2.8	2.8
(KV) Power frequency puncture voltage	130	130	130	130
(μV)Rodio influence voltage	50	50	50	50
(KV)Corona visual test	18/22	18/22	18/22	18/22
power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA
(kg)Net weight per unit	5.3	5.2	5.3	5.4

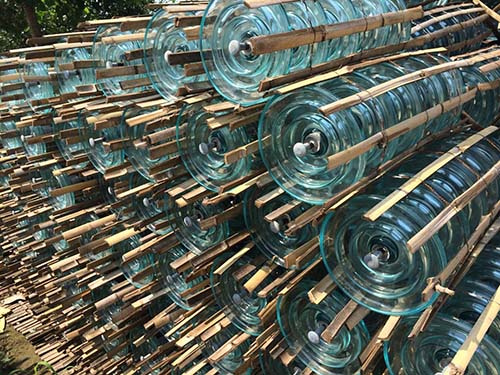

Packing and shippment:

Our service:

1. We offer the best solution and products to fulfill the buyers' requirments.

2. We can arrange technicians to install the equipments and train your staff on site.

3. Anytime, we provide considerate technical consultation.

4. Prompt reply for your inquiry and feedback.

Certificate:

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
